| 日期 (UTC) | 20240118 |
|---|---|
| 事件總數 | 292 |
| ↑ up (紅) | 8 |
| ↓ down (橘) | 8 |
| 共模噪音 (綠) | 272 |
| noise_large (洋紅) | 4 |
| CWA 地震 (紫★) | 0 |
| RMS max | 0.000 |
| RMS median | 0.000 |
| RMS mean | 0.000 |
互動版（24 條小時線）：點圖例中的小時色塊 → 該小時線變明顯、其餘變半透明；再點一次還原。

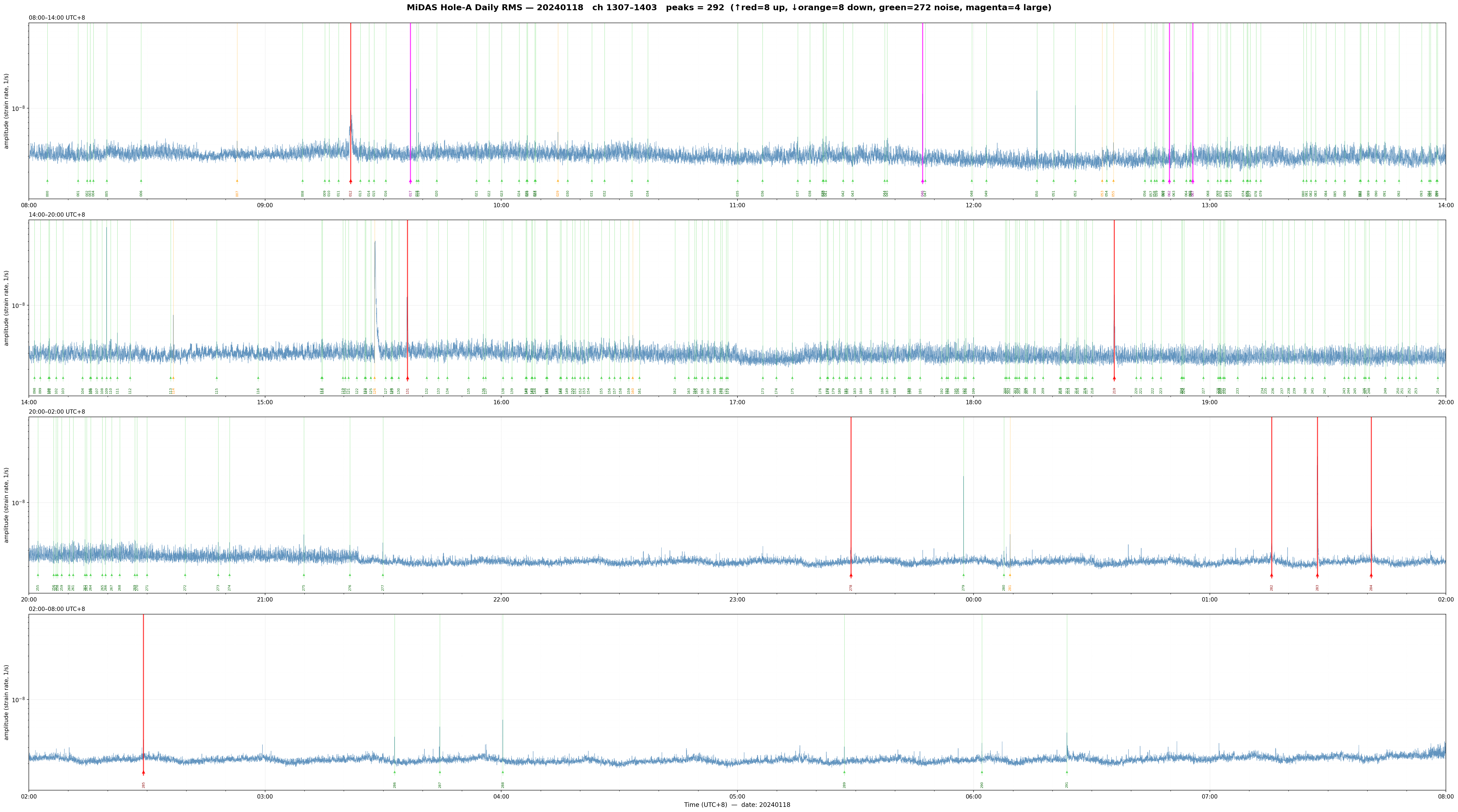

點擊上圖的紅色 up 事件以顯示 waterfall plot。

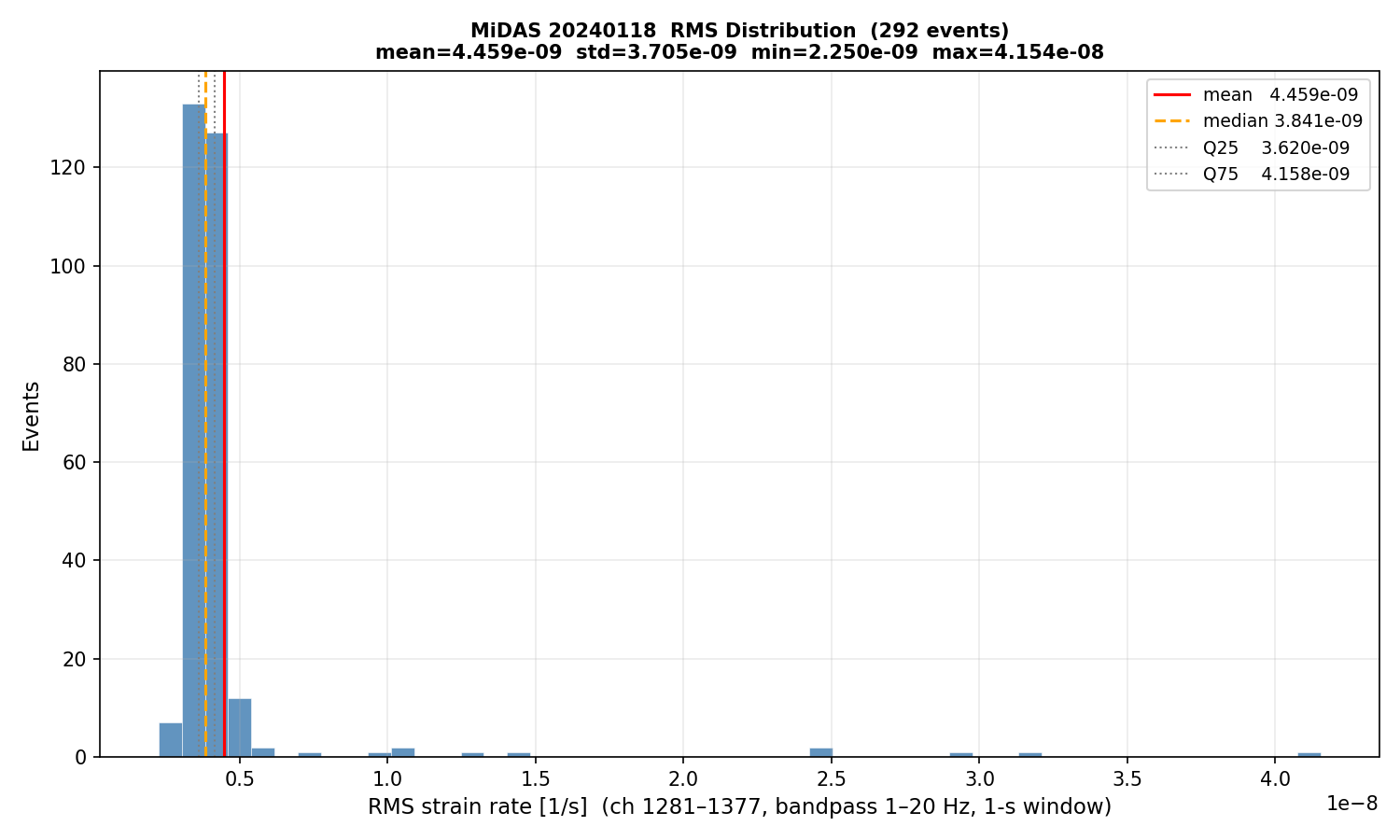

MiDAS Daily RMS peaks — 20240118 Total: 292 events [RMS_below300m 欄位說明] 來源 : 2024 backfill nc（100Hz decimated，Hole A trace 1307–1403，跳過頂部 73 ch，對應深度 ~300–700 m） 前處理: per-file bad-channel masking(median+10×MAD) → bandpass 1–20 Hz（sosfiltfilt，逐檔獨立，非跨檔 causal filter state） 公式 : sqrt( sum(x[ch,t]^2) / (97 ch × 100 samples) ) / DAS_SENSITIVITY 意義 : STA/LTA 偵測峰值那一秒，97 個 channel × 100 個取樣點的 RMS 振幅 單位 : strain rate (1/s)，已轉換為物理應變率（DAS_SENSITIVITY=7.0621e+08） 參考值: 典型背景 ~7.08e-10–2.83e-09，大地震 > 1.13e-08 RMS stats mean=4.459e-09 std=3.705e-09 min=2.250e-09 Q25=3.620e-09 median=3.841e-09 Q75=4.158e-09 max=4.154e-08 ID timestamp_tw (UTC+8) RMS_below300m fk_label CWA ------------------------------------------------------------------ 000 2024-01-18 08:04:43 4.111e-09 noise 0 001 2024-01-18 08:12:31 3.719e-09 noise 0 002 2024-01-18 08:14:49 4.233e-09 noise 0 003 2024-01-18 08:15:35 3.740e-09 noise 0 004 2024-01-18 08:16:24 4.186e-09 noise 0 005 2024-01-18 08:19:49 4.538e-09 noise 0 006 2024-01-18 08:28:31 4.245e-09 noise 0 007 2024-01-18 08:52:55 3.955e-09 down 0 008 2024-01-18 09:09:33 4.005e-09 noise 0 009 2024-01-18 09:15:11 4.688e-09 noise 0 010 2024-01-18 09:16:17 4.216e-09 noise 0 011 2024-01-18 09:18:41 4.728e-09 noise 0 012 2024-01-18 09:21:46 9.483e-09 up 0 013 2024-01-18 09:24:13 4.696e-09 noise 0 014 2024-01-18 09:26:25 4.311e-09 noise 0 015 2024-01-18 09:27:41 4.490e-09 noise 0 016 2024-01-18 09:30:41 4.538e-09 noise 0 017 2024-01-18 09:36:57 2.483e-08 noise_large 0 018 2024-01-18 09:38:32 4.414e-09 noise 0 019 2024-01-18 09:38:59 5.423e-09 noise 0 020 2024-01-18 09:43:38 4.347e-09 noise 0 021 2024-01-18 09:53:44 4.333e-09 noise 0 022 2024-01-18 09:56:55 4.425e-09 noise 0 023 2024-01-18 10:00:09 4.496e-09 noise 0 024 2024-01-18 10:04:32 4.427e-09 noise 0 025 2024-01-18 10:06:27 3.967e-09 noise 0 026 2024-01-18 10:06:39 4.354e-09 noise 0 027 2024-01-18 10:08:32 3.974e-09 noise 0 028 2024-01-18 10:08:44 4.259e-09 noise 0 029 2024-01-18 10:14:24 5.482e-09 down 0 030 2024-01-18 10:16:54 4.022e-09 noise 0 031 2024-01-18 10:23:01 4.169e-09 noise 0 032 2024-01-18 10:26:15 4.082e-09 noise 0 033 2024-01-18 10:33:12 4.744e-09 noise 0 034 2024-01-18 10:37:15 3.774e-09 noise 0 035 2024-01-18 11:00:03 3.662e-09 noise 0 036 2024-01-18 11:06:23 3.618e-09 noise 0 037 2024-01-18 11:15:20 4.855e-09 noise 0 038 2024-01-18 11:18:26 4.337e-09 noise 0 039 2024-01-18 11:21:41 4.635e-09 noise 0 040 2024-01-18 11:21:54 4.304e-09 noise 0 041 2024-01-18 11:22:30 4.929e-09 noise 0 042 2024-01-18 11:26:52 4.293e-09 noise 0 043 2024-01-18 11:29:18 3.706e-09 noise 0 044 2024-01-18 11:37:23 3.746e-09 noise 0 045 2024-01-18 11:38:01 3.897e-09 noise 0 046 2024-01-18 11:47:03 1.437e-08 noise_large 0 047 2024-01-18 11:47:44 3.601e-09 noise 0 048 2024-01-18 11:59:32 3.760e-09 noise 0 049 2024-01-18 12:03:15 3.951e-09 noise 0 050 2024-01-18 12:16:05 2.904e-09 noise 0 051 2024-01-18 12:20:19 3.269e-09 noise 0 052 2024-01-18 12:25:51 1.074e-08 noise 0 053 2024-01-18 12:32:40 3.741e-09 down 0 054 2024-01-18 12:33:49 3.438e-09 noise 0 055 2024-01-18 12:35:32 4.010e-09 down 0 056 2024-01-18 12:43:31 3.574e-09 noise 0 057 2024-01-18 12:45:05 3.557e-09 noise 0 058 2024-01-18 12:45:59 3.482e-09 noise 0 059 2024-01-18 12:46:31 3.705e-09 noise 0 060 2024-01-18 12:48:04 3.650e-09 noise 0 061 2024-01-18 12:48:17 3.663e-09 noise 0 062 2024-01-18 12:49:44 4.154e-08 noise_large 0 063 2024-01-18 12:50:55 4.082e-09 noise 0 064 2024-01-18 12:54:02 3.626e-09 noise 0 065 2024-01-18 12:54:58 3.976e-09 noise 0 066 2024-01-18 12:55:11 3.776e-09 noise 0 067 2024-01-18 12:55:41 2.487e-08 noise_large 0 068 2024-01-18 12:59:33 4.043e-09 noise 0 069 2024-01-18 13:02:00 3.440e-09 noise 0 070 2024-01-18 13:02:46 3.898e-09 noise 0 071 2024-01-18 13:04:07 4.332e-09 noise 0 072 2024-01-18 13:04:28 4.834e-09 noise 0 073 2024-01-18 13:05:17 3.283e-09 noise 0 074 2024-01-18 13:08:31 3.633e-09 noise 0 075 2024-01-18 13:09:27 4.062e-09 noise 0 076 2024-01-18 13:09:40 4.056e-09 noise 0 077 2024-01-18 13:10:16 3.763e-09 noise 0 078 2024-01-18 13:11:46 3.724e-09 noise 0 079 2024-01-18 13:12:57 3.795e-09 noise 0 080 2024-01-18 13:23:46 3.554e-09 noise 0 081 2024-01-18 13:24:34 4.348e-09 noise 0 082 2024-01-18 13:25:42 3.859e-09 noise 0 083 2024-01-18 13:26:53 4.241e-09 noise 0 084 2024-01-18 13:29:32 3.731e-09 noise 0 085 2024-01-18 13:31:52 3.732e-09 noise 0 086 2024-01-18 13:34:17 4.365e-09 noise 0 087 2024-01-18 13:38:08 3.789e-09 noise 0 088 2024-01-18 13:38:20 4.059e-09 noise 0 089 2024-01-18 13:40:17 4.246e-09 noise 0 090 2024-01-18 13:42:19 4.059e-09 noise 0 091 2024-01-18 13:44:27 4.294e-09 noise 0 092 2024-01-18 13:48:04 3.523e-09 noise 0 093 2024-01-18 13:53:47 3.816e-09 noise 0 094 2024-01-18 13:55:43 3.879e-09 noise 0 095 2024-01-18 13:56:06 3.944e-09 noise 0 096 2024-01-18 13:57:36 3.457e-09 noise 0 097 2024-01-18 13:57:49 3.825e-09 noise 0 098 2024-01-18 14:01:26 4.125e-09 noise 0 099 2024-01-18 14:02:54 3.891e-09 noise 0 100 2024-01-18 14:05:02 3.765e-09 noise 0 101 2024-01-18 14:05:15 3.929e-09 noise 0 102 2024-01-18 14:06:58 3.850e-09 noise 0 103 2024-01-18 14:08:42 4.121e-09 noise 0 104 2024-01-18 14:13:39 3.634e-09 noise 0 105 2024-01-18 14:15:35 3.787e-09 noise 0 106 2024-01-18 14:15:47 4.286e-09 noise 0 107 2024-01-18 14:17:18 3.897e-09 noise 0 108 2024-01-18 14:18:37 3.855e-09 noise 0 109 2024-01-18 14:19:46 3.272e-09 noise 0 110 2024-01-18 14:20:45 4.284e-09 noise 0 111 2024-01-18 14:22:30 5.006e-09 noise 0 112 2024-01-18 14:25:44 3.794e-09 noise 0 113 2024-01-18 14:36:01 3.537e-09 noise 0 114 2024-01-18 14:36:43 7.383e-09 down 0 115 2024-01-18 14:47:44 3.723e-09 noise 0 116 2024-01-18 14:58:16 3.826e-09 noise 0 117 2024-01-18 15:14:21 4.226e-09 noise 0 118 2024-01-18 15:14:34 4.192e-09 noise 0 119 2024-01-18 15:19:47 4.364e-09 noise 0 120 2024-01-18 15:20:24 3.954e-09 noise 0 121 2024-01-18 15:21:14 3.883e-09 noise 0 122 2024-01-18 15:23:19 3.831e-09 noise 0 123 2024-01-18 15:25:22 4.129e-09 noise 0 124 2024-01-18 15:25:35 4.434e-09 noise 0 125 2024-01-18 15:26:52 3.693e-09 noise 0 126 2024-01-18 15:27:50 2.934e-08 down 0 127 2024-01-18 15:30:39 4.140e-09 noise 0 128 2024-01-18 15:32:06 3.936e-09 noise 0 129 2024-01-18 15:32:19 4.019e-09 noise 0 130 2024-01-18 15:33:58 3.843e-09 noise 0 131 2024-01-18 15:36:13 1.023e-08 up 0 132 2024-01-18 15:41:05 4.298e-09 noise 0 133 2024-01-18 15:44:03 3.962e-09 noise 0 134 2024-01-18 15:46:19 4.203e-09 noise 0 135 2024-01-18 15:51:43 3.908e-09 noise 0 136 2024-01-18 15:55:27 3.952e-09 noise 0 137 2024-01-18 15:56:03 3.877e-09 noise 0 138 2024-01-18 16:00:28 4.155e-09 noise 0 139 2024-01-18 16:02:43 4.213e-09 noise 0 140 2024-01-18 16:06:15 3.881e-09 noise 0 141 2024-01-18 16:06:27 4.069e-09 noise 0 142 2024-01-18 16:07:43 4.071e-09 noise 0 143 2024-01-18 16:07:56 4.034e-09 noise 0 144 2024-01-18 16:08:33 3.681e-09 noise 0 145 2024-01-18 16:11:27 3.984e-09 noise 0 146 2024-01-18 16:11:42 3.750e-09 noise 0 147 2024-01-18 16:14:59 3.733e-09 noise 0 148 2024-01-18 16:15:12 4.694e-09 noise 0 149 2024-01-18 16:16:39 4.148e-09 noise 0 150 2024-01-18 16:18:06 3.968e-09 noise 0 151 2024-01-18 16:18:43 3.785e-09 noise 0 152 2024-01-18 16:20:04 4.139e-09 noise 0 153 2024-01-18 16:21:03 3.544e-09 noise 0 154 2024-01-18 16:22:07 4.020e-09 noise 0 155 2024-01-18 16:25:27 4.295e-09 noise 0 156 2024-01-18 16:27:29 4.336e-09 noise 0 157 2024-01-18 16:28:47 3.976e-09 noise 0 158 2024-01-18 16:30:15 4.195e-09 noise 0 159 2024-01-18 16:32:24 3.530e-09 noise 0 160 2024-01-18 16:33:24 4.721e-09 down 0 161 2024-01-18 16:35:07 3.848e-09 noise 0 162 2024-01-18 16:44:07 3.400e-09 noise 0 163 2024-01-18 16:47:37 3.997e-09 noise 0 164 2024-01-18 16:49:07 4.198e-09 noise 0 165 2024-01-18 16:49:34 3.496e-09 noise 0 166 2024-01-18 16:51:03 4.154e-09 noise 0 167 2024-01-18 16:52:33 3.844e-09 noise 0 168 2024-01-18 16:54:13 3.604e-09 noise 0 169 2024-01-18 16:55:43 3.679e-09 noise 0 170 2024-01-18 16:56:06 3.474e-09 noise 0 171 2024-01-18 16:57:10 3.695e-09 noise 0 172 2024-01-18 16:57:33 3.708e-09 noise 0 173 2024-01-18 17:06:28 3.627e-09 noise 0 174 2024-01-18 17:09:54 3.433e-09 noise 0 175 2024-01-18 17:13:57 3.591e-09 noise 0 176 2024-01-18 17:21:01 3.718e-09 noise 0 177 2024-01-18 17:22:48 4.129e-09 noise 0 178 2024-01-18 17:23:01 4.057e-09 noise 0 179 2024-01-18 17:24:23 3.775e-09 noise 0 180 2024-01-18 17:25:55 3.478e-09 noise 0 181 2024-01-18 17:27:29 3.673e-09 noise 0 182 2024-01-18 17:27:53 3.535e-09 noise 0 183 2024-01-18 17:29:48 4.008e-09 noise 0 184 2024-01-18 17:31:23 3.998e-09 noise 0 185 2024-01-18 17:33:54 3.685e-09 noise 0 186 2024-01-18 17:36:48 3.543e-09 noise 0 187 2024-01-18 17:38:02 3.749e-09 noise 0 188 2024-01-18 17:39:58 3.694e-09 noise 0 189 2024-01-18 17:43:29 3.720e-09 noise 0 190 2024-01-18 17:43:52 4.290e-09 noise 0 191 2024-01-18 17:46:25 4.280e-09 noise 0 192 2024-01-18 17:51:55 3.715e-09 noise 0 193 2024-01-18 17:53:07 3.962e-09 noise 0 194 2024-01-18 17:53:31 4.230e-09 noise 0 195 2024-01-18 17:55:27 3.855e-09 noise 0 196 2024-01-18 17:56:03 4.320e-09 noise 0 197 2024-01-18 17:57:37 4.065e-09 noise 0 198 2024-01-18 17:58:02 3.654e-09 noise 0 199 2024-01-18 18:00:00 3.414e-09 noise 0 200 2024-01-18 18:08:02 3.271e-09 noise 0 201 2024-01-18 18:08:25 3.821e-09 noise 0 202 2024-01-18 18:09:02 3.381e-09 noise 0 203 2024-01-18 18:10:34 3.923e-09 noise 0 204 2024-01-18 18:11:00 3.915e-09 noise 0 205 2024-01-18 18:11:35 3.444e-09 noise 0 206 2024-01-18 18:13:09 3.858e-09 noise 0 207 2024-01-18 18:13:33 3.840e-09 noise 0 208 2024-01-18 18:15:31 4.057e-09 noise 0 209 2024-01-18 18:17:40 3.600e-09 noise 0 210 2024-01-18 18:21:58 3.549e-09 noise 0 211 2024-01-18 18:22:11 3.429e-09 noise 0 212 2024-01-18 18:23:43 3.943e-09 noise 0 213 2024-01-18 18:24:07 3.650e-09 noise 0 214 2024-01-18 18:26:05 4.056e-09 noise 0 215 2024-01-18 18:26:30 3.161e-09 noise 0 216 2024-01-18 18:28:14 4.201e-09 noise 0 217 2024-01-18 18:28:38 3.763e-09 noise 0 218 2024-01-18 18:30:12 3.965e-09 noise 0 219 2024-01-18 18:35:45 1.303e-08 up 0 220 2024-01-18 18:41:20 3.621e-09 noise 0 221 2024-01-18 18:42:28 3.641e-09 noise 0 222 2024-01-18 18:45:27 4.127e-09 noise 0 223 2024-01-18 18:47:36 3.492e-09 noise 0 224 2024-01-18 18:52:48 3.478e-09 noise 0 225 2024-01-18 18:53:01 3.582e-09 noise 0 226 2024-01-18 18:53:25 3.812e-09 noise 0 227 2024-01-18 18:58:23 4.166e-09 noise 0 228 2024-01-18 19:02:07 3.649e-09 noise 0 229 2024-01-18 19:02:31 3.227e-09 noise 0 230 2024-01-18 19:02:44 3.689e-09 noise 0 231 2024-01-18 19:03:24 3.733e-09 noise 0 232 2024-01-18 19:03:47 3.833e-09 noise 0 233 2024-01-18 19:07:05 3.509e-09 noise 0 234 2024-01-18 19:13:21 3.341e-09 noise 0 235 2024-01-18 19:14:11 3.594e-09 noise 0 236 2024-01-18 19:16:04 3.725e-09 noise 0 237 2024-01-18 19:18:22 3.701e-09 noise 0 238 2024-01-18 19:20:03 3.668e-09 noise 0 239 2024-01-18 19:21:30 3.807e-09 noise 0 240 2024-01-18 19:24:14 3.865e-09 noise 0 241 2024-01-18 19:26:05 3.525e-09 noise 0 242 2024-01-18 19:29:12 3.582e-09 noise 0 243 2024-01-18 19:34:11 3.484e-09 noise 0 244 2024-01-18 19:35:15 3.278e-09 noise 0 245 2024-01-18 19:36:54 3.209e-09 noise 0 246 2024-01-18 19:39:13 3.636e-09 noise 0 247 2024-01-18 19:39:36 3.776e-09 noise 0 248 2024-01-18 19:40:27 3.704e-09 noise 0 249 2024-01-18 19:44:37 3.573e-09 noise 0 250 2024-01-18 19:47:51 3.380e-09 noise 0 251 2024-01-18 19:48:53 3.657e-09 noise 0 252 2024-01-18 19:50:44 3.506e-09 noise 0 253 2024-01-18 19:52:24 3.886e-09 noise 0 254 2024-01-18 19:57:56 3.343e-09 noise 0 255 2024-01-18 20:02:19 3.790e-09 noise 0 256 2024-01-18 20:06:18 3.776e-09 noise 0 257 2024-01-18 20:06:54 3.533e-09 noise 0 258 2024-01-18 20:07:18 3.310e-09 noise 0 259 2024-01-18 20:08:21 3.533e-09 noise 0 260 2024-01-18 20:10:17 3.584e-09 noise 0 261 2024-01-18 20:11:16 3.417e-09 noise 0 262 2024-01-18 20:14:15 3.939e-09 noise 0 263 2024-01-18 20:14:41 3.348e-09 noise 0 264 2024-01-18 20:15:41 3.275e-09 noise 0 265 2024-01-18 20:18:40 3.801e-09 noise 0 266 2024-01-18 20:19:30 3.563e-09 noise 0 267 2024-01-18 20:21:03 3.407e-09 noise 0 268 2024-01-18 20:23:05 3.584e-09 noise 0 269 2024-01-18 20:26:54 3.896e-09 noise 0 270 2024-01-18 20:27:29 3.549e-09 noise 0 271 2024-01-18 20:30:02 3.662e-09 noise 0 272 2024-01-18 20:39:42 3.466e-09 noise 0 273 2024-01-18 20:48:07 3.677e-09 noise 0 274 2024-01-18 20:50:59 3.660e-09 noise 0 275 2024-01-18 21:09:52 4.448e-09 noise 0 276 2024-01-18 21:21:34 3.327e-09 noise 0 277 2024-01-18 21:29:56 2.771e-09 noise 0 278 2024-01-18 23:28:52 3.222e-09 up 0 279 2024-01-18 23:57:27 3.337e-09 noise 0 280 2024-01-19 00:07:42 2.944e-09 noise 0 281 2024-01-19 00:09:15 4.485e-09 down 0 282 2024-01-19 01:15:42 3.551e-09 up 0 283 2024-01-19 01:27:20 3.186e-08 up 0 284 2024-01-19 01:41:00 4.717e-09 up 0 285 2024-01-19 02:29:08 3.649e-09 up 0 286 2024-01-19 03:32:55 2.250e-09 noise 0 287 2024-01-19 03:44:25 2.289e-09 noise 0 288 2024-01-19 04:00:24 2.314e-09 noise 0 289 2024-01-19 05:27:10 2.933e-09 noise 0 290 2024-01-19 06:02:07 3.344e-09 noise 0 291 2024-01-19 06:23:42 4.207e-09 noise 0
