| 日期 (UTC) | 20240210 |
|---|---|
| 事件總數 | 169 |
| ↑ up (紅) | 17 |
| ↓ down (橘) | 120 |
| 共模噪音 (綠) | 32 |
| noise_large (洋紅) | 0 |
| CWA 地震 (紫★) | 0 |
| RMS max | 0.000 |
| RMS median | 0.000 |
| RMS mean | 0.000 |
互動版（24 條小時線）：點圖例中的小時色塊 → 該小時線變明顯、其餘變半透明；再點一次還原。

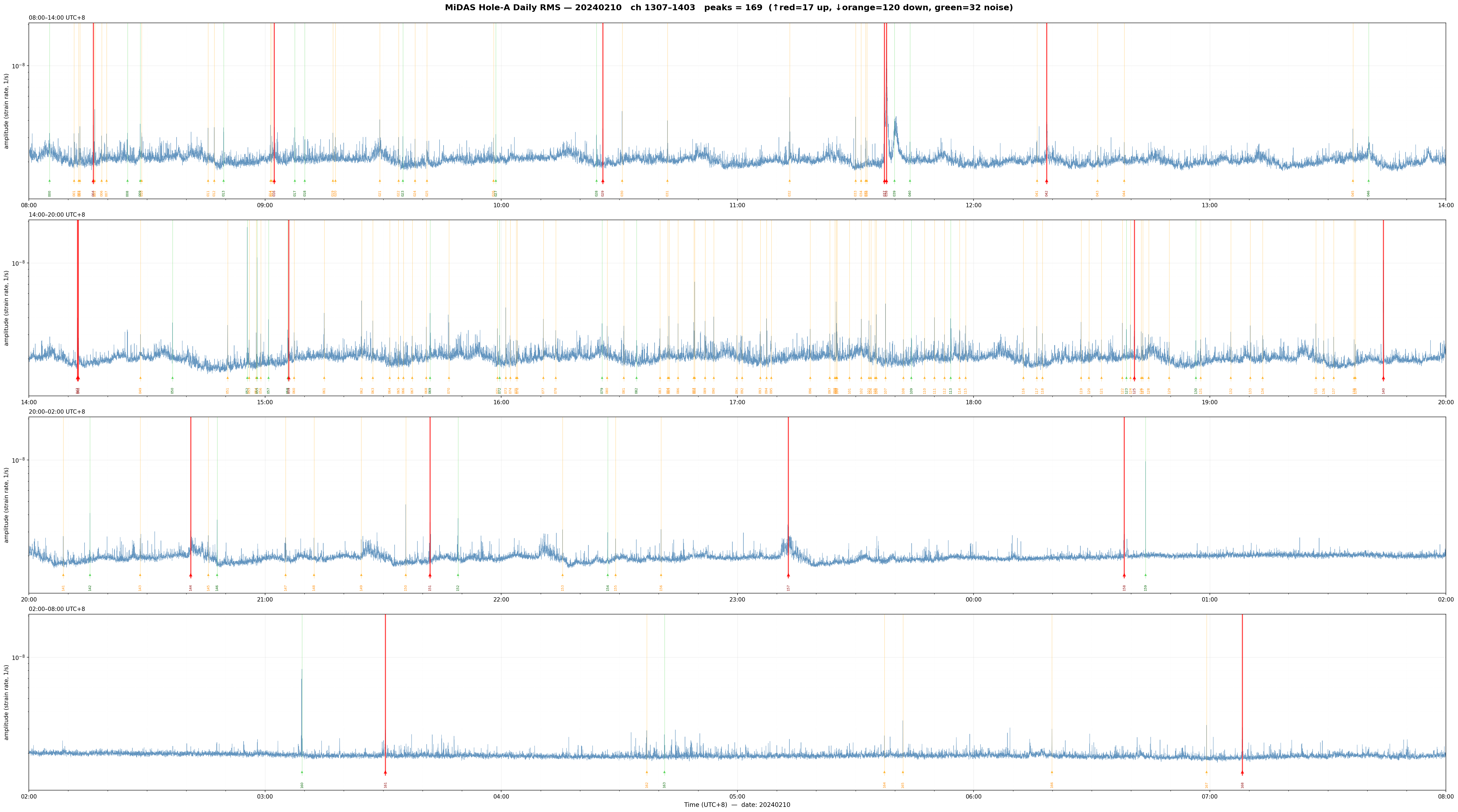

點擊上圖的紅色 up 事件以顯示 waterfall plot。

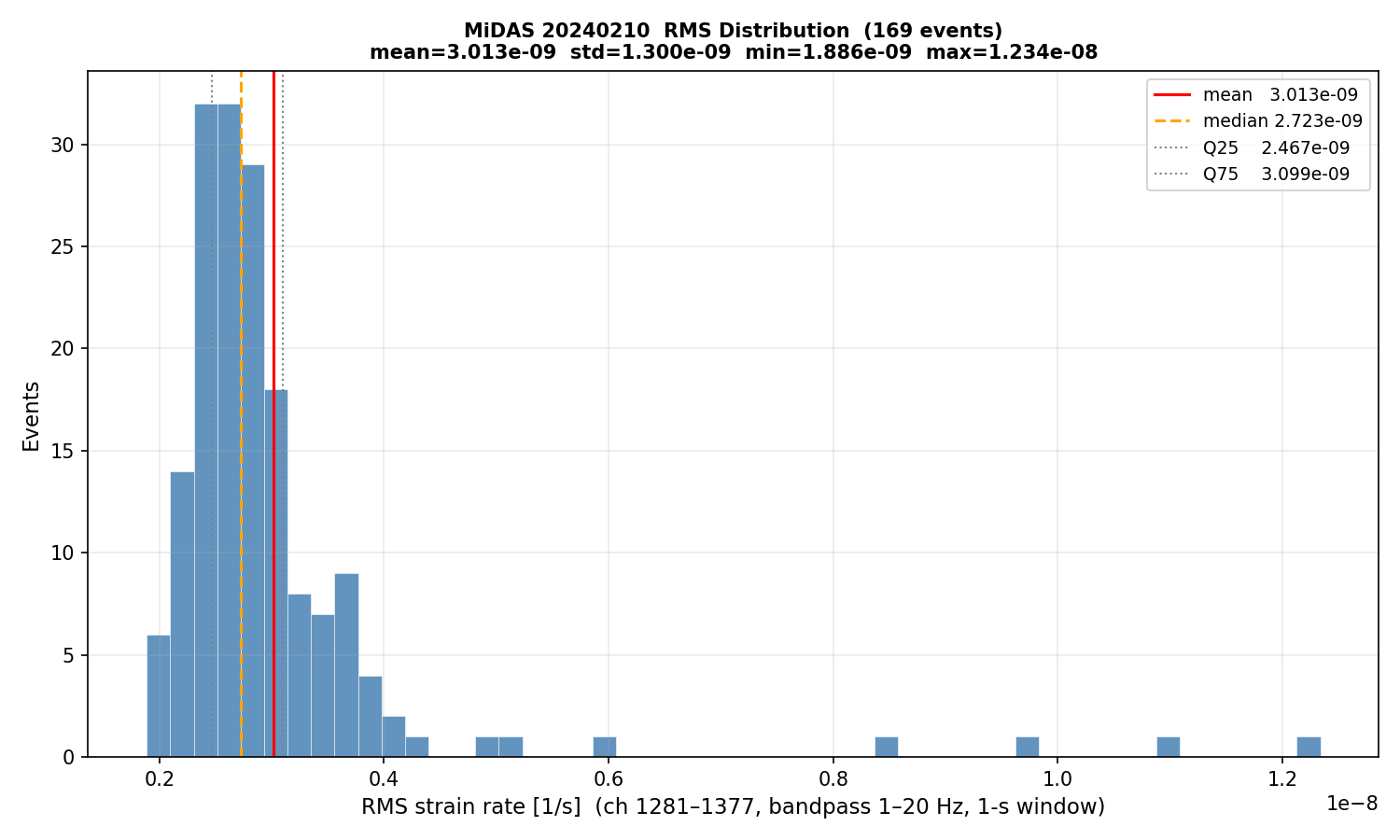

MiDAS Daily RMS peaks — 20240210 Total: 169 events [RMS_below300m 欄位說明] 來源 : 2024 backfill nc（100Hz decimated，Hole A trace 1307–1403，跳過頂部 73 ch，對應深度 ~300–700 m） 前處理: per-file bad-channel masking(median+10×MAD) → bandpass 1–20 Hz（sosfiltfilt，逐檔獨立，非跨檔 causal filter state） 公式 : sqrt( sum(x[ch,t]^2) / (97 ch × 100 samples) ) / DAS_SENSITIVITY 意義 : STA/LTA 偵測峰值那一秒，97 個 channel × 100 個取樣點的 RMS 振幅 單位 : strain rate (1/s)，已轉換為物理應變率（DAS_SENSITIVITY=7.0621e+08） 參考值: 典型背景 ~7.08e-10–2.83e-09，大地震 > 1.13e-08 RMS stats mean=3.013e-09 std=1.300e-09 min=1.886e-09 Q25=2.467e-09 median=2.723e-09 Q75=3.099e-09 max=1.234e-08 ID timestamp_tw (UTC+8) RMS_below300m fk_label CWA ------------------------------------------------------------------ 000 2024-02-10 08:05:16 3.016e-09 noise 0 001 2024-02-10 08:11:30 2.549e-09 down 0 002 2024-02-10 08:12:40 2.486e-09 down 0 003 2024-02-10 08:12:59 2.617e-09 down 0 004 2024-02-10 08:16:22 1.886e-09 up 0 005 2024-02-10 08:16:45 4.813e-09 down 0 006 2024-02-10 08:18:29 2.512e-09 down 0 007 2024-02-10 08:19:45 2.496e-09 down 0 008 2024-02-10 08:25:04 2.815e-09 noise 0 009 2024-02-10 08:28:17 3.767e-09 noise 0 010 2024-02-10 08:28:40 3.255e-09 down 0 011 2024-02-10 08:45:32 2.258e-09 down 0 012 2024-02-10 08:47:06 3.562e-09 down 0 013 2024-02-10 08:49:28 2.185e-09 noise 0 014 2024-02-10 09:01:23 3.608e-09 down 0 015 2024-02-10 09:01:43 2.658e-09 down 0 016 2024-02-10 09:02:20 2.891e-09 up 0 017 2024-02-10 09:07:34 2.894e-09 noise 0 018 2024-02-10 09:10:05 2.888e-09 noise 0 019 2024-02-10 09:17:14 3.240e-09 down 0 020 2024-02-10 09:17:53 2.766e-09 down 0 021 2024-02-10 09:29:10 2.679e-09 down 0 022 2024-02-10 09:33:56 3.016e-09 down 0 023 2024-02-10 09:35:01 2.571e-09 noise 0 024 2024-02-10 09:38:06 2.242e-09 down 0 025 2024-02-10 09:41:08 2.462e-09 down 0 026 2024-02-10 09:58:02 2.981e-09 down 0 027 2024-02-10 09:58:38 3.167e-09 noise 0 028 2024-02-10 10:24:13 2.610e-09 noise 0 029 2024-02-10 10:25:49 2.925e-09 up 0 030 2024-02-10 10:30:43 2.172e-09 down 0 031 2024-02-10 10:42:13 3.986e-09 down 0 032 2024-02-10 11:13:16 3.209e-09 down 0 033 2024-02-10 11:30:02 2.414e-09 down 0 034 2024-02-10 11:31:25 2.653e-09 down 0 035 2024-02-10 11:32:34 2.995e-09 down 0 036 2024-02-10 11:32:53 2.658e-09 down 0 037 2024-02-10 11:37:22 5.904e-09 up 0 038 2024-02-10 11:37:52 1.234e-08 up 0 039 2024-02-10 11:39:54 3.493e-09 noise 0 040 2024-02-10 11:43:50 2.788e-09 noise 0 041 2024-02-10 12:16:07 2.558e-09 down 0 042 2024-02-10 12:18:33 3.711e-09 up 0 043 2024-02-10 12:31:29 2.361e-09 down 0 044 2024-02-10 12:38:15 2.692e-09 down 0 045 2024-02-10 13:36:21 2.721e-09 down 0 046 2024-02-10 13:40:20 2.880e-09 noise 0 047 2024-02-10 14:12:20 3.966e-09 up 0 048 2024-02-10 14:12:36 2.720e-09 up 0 049 2024-02-10 14:28:21 3.013e-09 down 0 050 2024-02-10 14:36:30 2.411e-09 noise 0 051 2024-02-10 14:50:30 2.880e-09 down 0 052 2024-02-10 14:55:29 2.057e-09 noise 0 053 2024-02-10 14:55:57 2.749e-09 down 0 054 2024-02-10 14:57:45 3.101e-09 down 0 055 2024-02-10 14:58:00 1.094e-08 noise 0 056 2024-02-10 14:58:55 2.471e-09 down 0 057 2024-02-10 15:00:53 1.956e-09 noise 0 058 2024-02-10 15:05:46 2.746e-09 noise 0 059 2024-02-10 15:06:03 2.736e-09 up 0 060 2024-02-10 15:07:23 2.185e-09 down 0 061 2024-02-10 15:15:02 2.944e-09 down 0 062 2024-02-10 15:24:32 3.544e-09 down 0 063 2024-02-10 15:27:23 3.786e-09 down 0 064 2024-02-10 15:31:40 2.316e-09 down 0 065 2024-02-10 15:33:53 2.554e-09 down 0 066 2024-02-10 15:35:09 2.372e-09 down 0 067 2024-02-10 15:37:23 2.230e-09 down 0 068 2024-02-10 15:40:57 3.411e-09 down 0 069 2024-02-10 15:41:55 4.300e-09 noise 0 070 2024-02-10 15:46:43 3.100e-09 down 0 071 2024-02-10 15:59:03 2.441e-09 down 0 072 2024-02-10 15:59:36 2.280e-09 noise 0 073 2024-02-10 16:01:10 2.712e-09 down 0 074 2024-02-10 16:02:19 2.341e-09 down 0 075 2024-02-10 16:03:47 2.737e-09 down 0 076 2024-02-10 16:04:06 2.432e-09 down 0 077 2024-02-10 16:10:42 2.467e-09 down 0 078 2024-02-10 16:13:51 2.862e-09 down 0 079 2024-02-10 16:25:37 3.618e-09 noise 0 080 2024-02-10 16:26:54 2.467e-09 down 0 081 2024-02-10 16:31:08 2.180e-09 down 0 082 2024-02-10 16:34:22 2.328e-09 noise 0 083 2024-02-10 16:40:21 2.370e-09 down 0 084 2024-02-10 16:42:20 2.743e-09 down 0 085 2024-02-10 16:42:37 2.952e-09 down 0 086 2024-02-10 16:44:55 3.611e-09 down 0 087 2024-02-10 16:48:54 3.474e-09 down 0 088 2024-02-10 16:49:10 3.819e-09 down 0 089 2024-02-10 16:51:47 2.963e-09 down 0 090 2024-02-10 16:54:00 2.656e-09 down 0 091 2024-02-10 16:59:51 2.705e-09 down 0 092 2024-02-10 17:01:12 2.709e-09 down 0 093 2024-02-10 17:05:49 2.633e-09 down 0 094 2024-02-10 17:07:24 2.709e-09 down 0 095 2024-02-10 17:08:36 2.930e-09 down 0 096 2024-02-10 17:18:30 2.494e-09 down 0 097 2024-02-10 17:23:26 2.599e-09 down 0 098 2024-02-10 17:24:45 3.099e-09 down 0 099 2024-02-10 17:25:05 2.893e-09 down 0 100 2024-02-10 17:25:18 2.916e-09 down 0 101 2024-02-10 17:28:28 2.841e-09 down 0 102 2024-02-10 17:31:28 3.896e-09 down 0 103 2024-02-10 17:33:25 2.494e-09 down 0 104 2024-02-10 17:33:54 2.583e-09 down 0 105 2024-02-10 17:34:58 2.664e-09 down 0 106 2024-02-10 17:35:18 2.666e-09 down 0 107 2024-02-10 17:37:37 5.042e-09 down 0 108 2024-02-10 17:42:10 2.224e-09 down 0 109 2024-02-10 17:44:10 2.836e-09 noise 0 110 2024-02-10 17:47:32 2.478e-09 down 0 111 2024-02-10 17:50:03 2.574e-09 down 0 112 2024-02-10 17:52:37 2.506e-09 down 0 113 2024-02-10 17:54:10 2.296e-09 noise 0 114 2024-02-10 17:56:25 3.030e-09 down 0 115 2024-02-10 17:57:58 3.492e-09 down 0 116 2024-02-10 18:12:39 3.357e-09 down 0 117 2024-02-10 18:16:03 2.588e-09 down 0 118 2024-02-10 18:17:30 2.235e-09 down 0 119 2024-02-10 18:27:18 2.384e-09 down 0 120 2024-02-10 18:29:17 2.654e-09 down 0 121 2024-02-10 18:32:29 2.624e-09 down 0 122 2024-02-10 18:37:46 3.644e-09 down 0 123 2024-02-10 18:38:49 3.278e-09 noise 0 124 2024-02-10 18:39:50 2.398e-09 down 0 125 2024-02-10 18:40:50 3.196e-09 up 0 126 2024-02-10 18:42:35 3.158e-09 down 0 127 2024-02-10 18:42:57 2.403e-09 down 0 128 2024-02-10 18:44:27 2.742e-09 down 0 129 2024-02-10 18:49:40 2.588e-09 down 0 130 2024-02-10 18:56:28 2.083e-09 noise 0 131 2024-02-10 18:57:41 2.764e-09 down 0 132 2024-02-10 19:05:19 2.359e-09 down 0 133 2024-02-10 19:10:17 2.333e-09 down 0 134 2024-02-10 19:13:25 2.957e-09 down 0 135 2024-02-10 19:26:58 2.376e-09 down 0 136 2024-02-10 19:28:56 2.502e-09 down 0 137 2024-02-10 19:31:29 2.105e-09 down 0 138 2024-02-10 19:36:40 2.766e-09 down 0 139 2024-02-10 19:37:00 2.555e-09 down 0 140 2024-02-10 19:44:06 8.479e-09 up 0 141 2024-02-10 20:08:45 2.134e-09 down 0 142 2024-02-10 20:15:32 4.103e-09 noise 0 143 2024-02-10 20:28:16 2.691e-09 down 0 144 2024-02-10 20:41:07 2.546e-09 up 0 145 2024-02-10 20:45:35 2.820e-09 down 0 146 2024-02-10 20:47:49 3.666e-09 noise 0 147 2024-02-10 21:05:13 2.723e-09 down 0 148 2024-02-10 21:12:26 2.361e-09 down 0 149 2024-02-10 21:24:27 2.440e-09 down 0 150 2024-02-10 21:35:45 2.783e-09 down 0 151 2024-02-10 21:41:54 3.513e-09 up 0 152 2024-02-10 21:49:01 3.758e-09 noise 0 153 2024-02-10 22:15:35 3.112e-09 down 0 154 2024-02-10 22:27:03 2.965e-09 noise 0 155 2024-02-10 22:29:03 2.671e-09 down 0 156 2024-02-10 22:40:36 3.124e-09 down 0 157 2024-02-10 23:12:57 2.876e-09 up 0 158 2024-02-11 00:38:16 2.884e-09 up 0 159 2024-02-11 00:43:41 9.770e-09 noise 0 160 2024-02-11 03:09:23 2.022e-09 noise 0 161 2024-02-11 03:30:34 2.944e-09 up 0 162 2024-02-11 04:36:59 2.094e-09 down 0 163 2024-02-11 04:41:27 2.198e-09 noise 0 164 2024-02-11 05:37:20 2.401e-09 down 0 165 2024-02-11 05:42:02 2.450e-09 down 0 166 2024-02-11 06:19:54 2.994e-09 down 0 167 2024-02-11 06:59:10 3.196e-09 down 0 168 2024-02-11 07:08:16 2.810e-09 up 0
