| 日期 (UTC) | 20240312 |
|---|---|
| 事件總數 | 357 |
| ↑ up (紅) | 11 |
| ↓ down (橘) | 102 |
| 共模噪音 (綠) | 244 |
| noise_large (洋紅) | 0 |
| CWA 地震 (紫★) | 0 |
| RMS max | 0.000 |
| RMS median | 0.000 |
| RMS mean | 0.000 |
互動版（24 條小時線）：點圖例中的小時色塊 → 該小時線變明顯、其餘變半透明；再點一次還原。
點擊上圖的紅色 up 事件以顯示 waterfall plot。

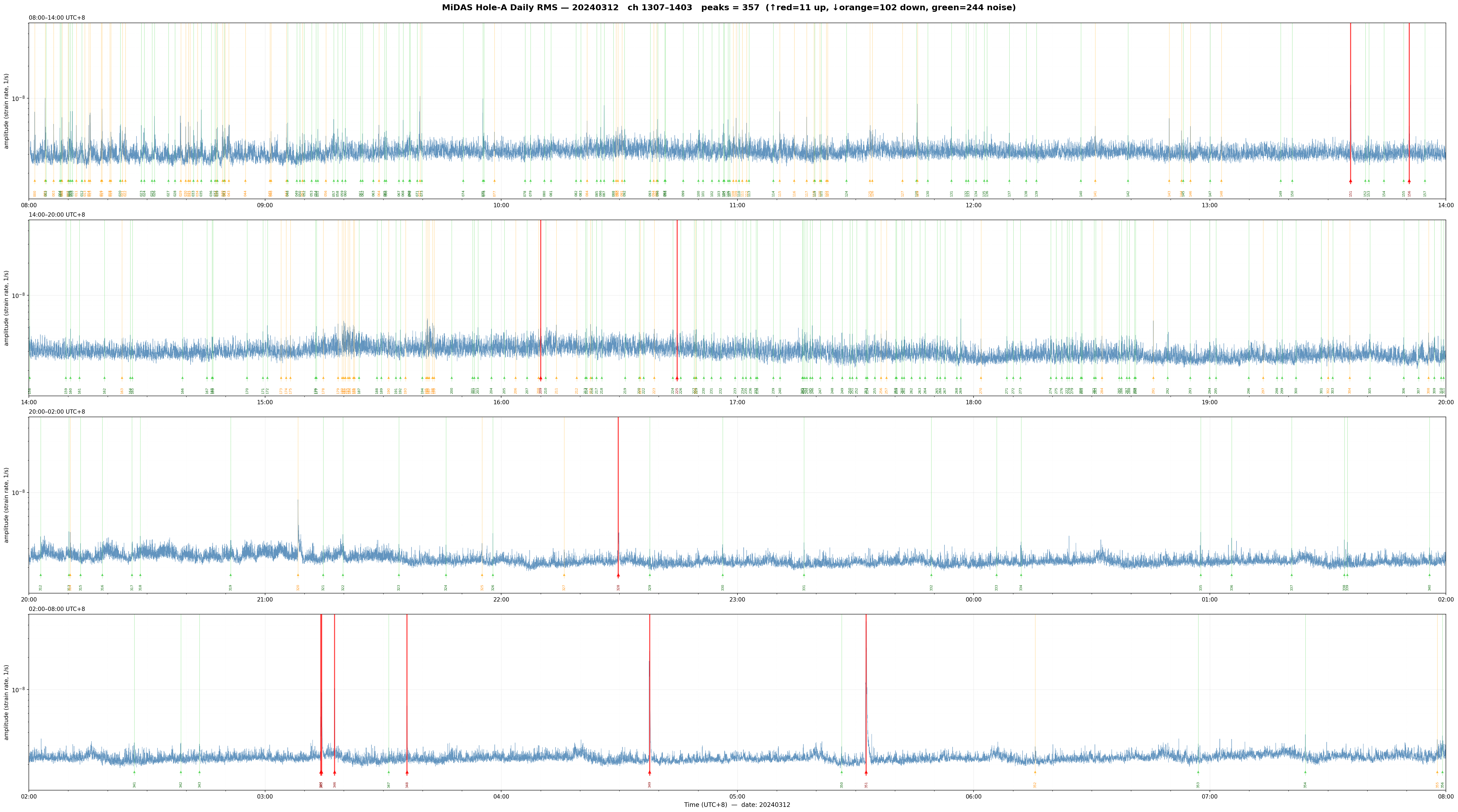

MiDAS Daily RMS peaks — 20240312 Total: 357 events [RMS_below300m 欄位說明] 來源 : 2024 backfill nc（100Hz decimated，Hole A trace 1307–1403，跳過頂部 73 ch，對應深度 ~300–700 m） 前處理: per-file bad-channel masking(median+10×MAD) → bandpass 1–20 Hz（sosfiltfilt，逐檔獨立，非跨檔 causal filter state） 公式 : sqrt( sum(x[ch,t]^2) / (97 ch × 100 samples) ) / DAS_SENSITIVITY 意義 : STA/LTA 偵測峰值那一秒，97 個 channel × 100 個取樣點的 RMS 振幅 單位 : strain rate (1/s)，已轉換為物理應變率（DAS_SENSITIVITY=7.0621e+08） 參考值: 典型背景 ~7.08e-10–2.83e-09，大地震 > 1.13e-08 RMS stats mean=4.501e-09 std=2.518e-09 min=2.613e-09 Q25=3.778e-09 median=4.153e-09 Q75=4.603e-09 max=4.314e-08 ID timestamp_tw (UTC+8) RMS_below300m fk_label CWA ------------------------------------------------------------------ 000 2024-03-12 08:01:30 4.285e-09 down 0 001 2024-03-12 08:04:08 1.004e-08 down 0 002 2024-03-12 08:04:20 4.095e-09 noise 0 003 2024-03-12 08:06:18 5.333e-09 down 0 004 2024-03-12 08:07:54 3.555e-09 noise 0 005 2024-03-12 08:08:13 3.974e-09 noise 0 006 2024-03-12 08:08:26 3.656e-09 down 0 007 2024-03-12 08:09:57 3.417e-09 down 0 008 2024-03-12 08:10:12 5.985e-09 noise 0 009 2024-03-12 08:10:37 5.178e-09 noise 0 010 2024-03-12 08:11:04 7.561e-09 noise 0 011 2024-03-12 08:12:04 4.607e-09 down 0 012 2024-03-12 08:13:29 3.845e-09 noise 0 013 2024-03-12 08:14:13 4.289e-09 down 0 014 2024-03-12 08:15:13 5.602e-09 down 0 015 2024-03-12 08:15:35 7.311e-09 down 0 016 2024-03-12 08:18:23 4.024e-09 down 0 017 2024-03-12 08:18:37 7.937e-09 down 0 018 2024-03-12 08:20:33 3.976e-09 down 0 019 2024-03-12 08:20:52 4.215e-09 down 0 020 2024-03-12 08:23:12 4.431e-09 noise 0 021 2024-03-12 08:23:45 4.969e-09 down 0 022 2024-03-12 08:24:32 4.085e-09 down 0 023 2024-03-12 08:28:35 4.943e-09 noise 0 024 2024-03-12 08:29:20 3.864e-09 noise 0 025 2024-03-12 08:31:17 3.711e-09 noise 0 026 2024-03-12 08:31:54 5.390e-09 noise 0 027 2024-03-12 08:35:28 3.319e-09 noise 0 028 2024-03-12 08:37:08 3.393e-09 noise 0 029 2024-03-12 08:38:36 5.867e-09 down 0 030 2024-03-12 08:39:51 4.504e-09 down 0 031 2024-03-12 08:40:31 5.991e-09 down 0 032 2024-03-12 08:40:58 5.458e-09 down 0 033 2024-03-12 08:41:49 5.036e-09 noise 0 034 2024-03-12 08:42:50 3.897e-09 down 0 035 2024-03-12 08:43:48 5.256e-09 noise 0 036 2024-03-12 08:46:19 3.789e-09 noise 0 037 2024-03-12 08:47:19 3.585e-09 noise 0 038 2024-03-12 08:47:40 3.888e-09 down 0 039 2024-03-12 08:47:55 3.719e-09 noise 0 040 2024-03-12 08:49:14 3.709e-09 down 0 041 2024-03-12 08:49:36 4.119e-09 noise 0 042 2024-03-12 08:49:49 5.246e-09 down 0 043 2024-03-12 08:50:49 5.677e-09 down 0 044 2024-03-12 08:55:00 3.981e-09 down 0 045 2024-03-12 09:01:14 3.620e-09 down 0 046 2024-03-12 09:01:33 4.905e-09 down 0 047 2024-03-12 09:05:27 5.771e-09 down 0 048 2024-03-12 09:05:44 5.884e-09 noise 0 049 2024-03-12 09:08:04 3.689e-09 noise 0 050 2024-03-12 09:08:52 4.383e-09 noise 0 051 2024-03-12 09:09:31 4.324e-09 down 0 052 2024-03-12 09:09:57 3.185e-09 noise 0 053 2024-03-12 09:11:50 4.559e-09 noise 0 054 2024-03-12 09:12:55 3.856e-09 noise 0 055 2024-03-12 09:13:25 3.798e-09 noise 0 056 2024-03-12 09:15:27 4.436e-09 down 0 057 2024-03-12 09:17:28 4.100e-09 noise 0 058 2024-03-12 09:18:28 5.184e-09 noise 0 059 2024-03-12 09:19:37 3.999e-09 noise 0 060 2024-03-12 09:20:25 3.960e-09 noise 0 061 2024-03-12 09:24:17 4.014e-09 noise 0 062 2024-03-12 09:24:47 4.669e-09 noise 0 063 2024-03-12 09:27:31 3.679e-09 noise 0 064 2024-03-12 09:28:57 3.987e-09 down 0 065 2024-03-12 09:30:23 4.132e-09 noise 0 066 2024-03-12 09:30:47 4.958e-09 noise 0 067 2024-03-12 09:34:01 4.213e-09 noise 0 068 2024-03-12 09:35:05 3.302e-09 noise 0 069 2024-03-12 09:36:39 4.368e-09 noise 0 070 2024-03-12 09:36:51 4.854e-09 noise 0 071 2024-03-12 09:38:40 4.152e-09 noise 0 072 2024-03-12 09:39:22 1.044e-08 down 0 073 2024-03-12 09:39:50 4.643e-09 noise 0 074 2024-03-12 09:50:21 4.323e-09 noise 0 075 2024-03-12 09:55:21 9.885e-09 noise 0 076 2024-03-12 09:55:37 4.750e-09 noise 0 077 2024-03-12 09:58:18 3.891e-09 down 0 078 2024-03-12 10:06:03 4.240e-09 noise 0 079 2024-03-12 10:07:27 4.528e-09 noise 0 080 2024-03-12 10:10:58 4.049e-09 noise 0 081 2024-03-12 10:12:39 4.676e-09 noise 0 082 2024-03-12 10:19:01 4.648e-09 noise 0 083 2024-03-12 10:20:13 4.247e-09 noise 0 084 2024-03-12 10:21:49 6.144e-09 down 0 085 2024-03-12 10:24:17 4.633e-09 noise 0 086 2024-03-12 10:25:16 5.368e-09 noise 0 087 2024-03-12 10:26:08 8.554e-09 noise 0 088 2024-03-12 10:28:31 4.511e-09 noise 0 089 2024-03-12 10:29:11 4.446e-09 down 0 090 2024-03-12 10:29:38 4.909e-09 down 0 091 2024-03-12 10:30:41 4.821e-09 down 0 092 2024-03-12 10:31:19 5.056e-09 noise 0 093 2024-03-12 10:37:50 4.791e-09 noise 0 094 2024-03-12 10:38:44 4.175e-09 down 0 095 2024-03-12 10:39:28 5.117e-09 down 0 096 2024-03-12 10:39:45 4.545e-09 noise 0 097 2024-03-12 10:41:31 4.156e-09 noise 0 098 2024-03-12 10:41:43 4.502e-09 noise 0 099 2024-03-12 10:46:14 4.016e-09 noise 0 100 2024-03-12 10:50:05 4.524e-09 noise 0 101 2024-03-12 10:51:16 4.681e-09 noise 0 102 2024-03-12 10:53:32 5.126e-09 noise 0 103 2024-03-12 10:55:17 4.272e-09 noise 0 104 2024-03-12 10:56:28 4.456e-09 noise 0 105 2024-03-12 10:56:40 4.709e-09 noise 0 106 2024-03-12 10:57:37 6.320e-09 noise 0 107 2024-03-12 10:58:03 4.576e-09 noise 0 108 2024-03-12 10:58:57 5.447e-09 down 0 109 2024-03-12 10:59:40 6.532e-09 down 0 110 2024-03-12 11:00:24 4.444e-09 noise 0 111 2024-03-12 11:01:14 4.315e-09 down 0 112 2024-03-12 11:02:20 5.878e-09 down 0 113 2024-03-12 11:02:56 4.426e-09 noise 0 114 2024-03-12 11:09:08 3.467e-09 noise 0 115 2024-03-12 11:10:44 5.839e-09 down 0 116 2024-03-12 11:14:25 4.544e-09 down 0 117 2024-03-12 11:17:36 6.686e-09 down 0 118 2024-03-12 11:19:27 3.792e-09 down 0 119 2024-03-12 11:19:40 4.216e-09 noise 0 120 2024-03-12 11:20:57 3.744e-09 down 0 121 2024-03-12 11:21:16 3.703e-09 noise 0 122 2024-03-12 11:22:35 3.966e-09 down 0 123 2024-03-12 11:22:56 4.228e-09 down 0 124 2024-03-12 11:27:42 4.435e-09 noise 0 125 2024-03-12 11:33:39 4.590e-09 down 0 126 2024-03-12 11:34:16 4.603e-09 down 0 127 2024-03-12 11:41:56 3.770e-09 down 0 128 2024-03-12 11:45:28 3.991e-09 noise 0 129 2024-03-12 11:45:44 6.658e-09 down 0 130 2024-03-12 11:48:22 4.378e-09 noise 0 131 2024-03-12 11:54:22 4.730e-09 noise 0 132 2024-03-12 11:58:05 4.627e-09 noise 0 133 2024-03-12 11:58:39 5.081e-09 noise 0 134 2024-03-12 12:00:36 4.528e-09 noise 0 135 2024-03-12 12:02:41 4.075e-09 noise 0 136 2024-03-12 12:03:25 5.462e-09 noise 0 137 2024-03-12 12:09:05 3.905e-09 noise 0 138 2024-03-12 12:13:21 4.193e-09 noise 0 139 2024-03-12 12:15:57 4.059e-09 noise 0 140 2024-03-12 12:27:14 4.309e-09 noise 0 141 2024-03-12 12:30:54 5.486e-09 down 0 142 2024-03-12 12:39:13 4.058e-09 noise 0 143 2024-03-12 12:49:41 6.489e-09 down 0 144 2024-03-12 12:52:48 4.980e-09 down 0 145 2024-03-12 12:53:15 4.136e-09 noise 0 146 2024-03-12 12:55:05 4.204e-09 down 0 147 2024-03-12 13:00:05 4.389e-09 noise 0 148 2024-03-12 13:02:56 3.595e-09 down 0 149 2024-03-12 13:18:01 3.886e-09 noise 0 150 2024-03-12 13:20:57 4.025e-09 noise 0 151 2024-03-12 13:35:46 1.216e-08 up 0 152 2024-03-12 13:39:30 4.100e-09 noise 0 153 2024-03-12 13:40:23 4.413e-09 noise 0 154 2024-03-12 13:44:14 3.936e-09 noise 0 155 2024-03-12 13:49:15 4.056e-09 noise 0 156 2024-03-12 13:50:39 4.409e-09 up 0 157 2024-03-12 13:54:39 4.127e-09 noise 0 158 2024-03-12 14:00:13 4.870e-09 noise 0 159 2024-03-12 14:09:24 3.705e-09 noise 0 160 2024-03-12 14:10:34 4.865e-09 noise 0 161 2024-03-12 14:12:52 3.789e-09 noise 0 162 2024-03-12 14:19:13 3.951e-09 noise 0 163 2024-03-12 14:23:40 3.955e-09 down 0 164 2024-03-12 14:25:46 3.546e-09 noise 0 165 2024-03-12 14:26:18 3.912e-09 noise 0 166 2024-03-12 14:39:02 3.736e-09 noise 0 167 2024-03-12 14:45:15 3.842e-09 noise 0 168 2024-03-12 14:46:31 3.439e-09 noise 0 169 2024-03-12 14:46:44 4.108e-09 noise 0 170 2024-03-12 14:55:25 4.439e-09 noise 0 171 2024-03-12 14:59:28 3.551e-09 noise 0 172 2024-03-12 15:00:36 4.115e-09 noise 0 173 2024-03-12 15:04:05 3.967e-09 down 0 174 2024-03-12 15:05:22 4.080e-09 down 0 175 2024-03-12 15:06:27 3.575e-09 down 0 176 2024-03-12 15:12:49 4.075e-09 noise 0 177 2024-03-12 15:13:04 5.141e-09 noise 0 178 2024-03-12 15:14:49 4.249e-09 down 0 179 2024-03-12 15:18:33 3.995e-09 down 0 180 2024-03-12 15:19:35 5.207e-09 down 0 181 2024-03-12 15:19:59 5.027e-09 down 0 182 2024-03-12 15:20:25 5.486e-09 down 0 183 2024-03-12 15:21:05 4.411e-09 down 0 184 2024-03-12 15:21:31 5.181e-09 down 0 185 2024-03-12 15:22:26 5.037e-09 down 0 186 2024-03-12 15:22:44 4.819e-09 down 0 187 2024-03-12 15:23:53 4.487e-09 noise 0 188 2024-03-12 15:28:26 4.340e-09 noise 0 189 2024-03-12 15:29:33 4.410e-09 noise 0 190 2024-03-12 15:31:23 4.180e-09 down 0 191 2024-03-12 15:33:15 3.895e-09 noise 0 192 2024-03-12 15:34:23 3.723e-09 noise 0 193 2024-03-12 15:35:41 4.316e-09 down 0 194 2024-03-12 15:39:57 4.608e-09 noise 0 195 2024-03-12 15:40:56 4.864e-09 down 0 196 2024-03-12 15:41:17 4.898e-09 down 0 197 2024-03-12 15:41:41 5.073e-09 down 0 198 2024-03-12 15:42:32 5.510e-09 down 0 199 2024-03-12 15:42:57 4.955e-09 down 0 200 2024-03-12 15:47:25 4.053e-09 noise 0 201 2024-03-12 15:52:42 4.605e-09 noise 0 202 2024-03-12 15:53:10 4.207e-09 noise 0 203 2024-03-12 15:54:06 4.388e-09 noise 0 204 2024-03-12 15:57:31 4.867e-09 noise 0 205 2024-03-12 16:00:47 4.495e-09 noise 0 206 2024-03-12 16:03:39 3.844e-09 down 0 207 2024-03-12 16:06:34 4.095e-09 noise 0 208 2024-03-12 16:09:28 4.348e-09 down 0 209 2024-03-12 16:10:02 4.302e-09 up 0 210 2024-03-12 16:11:18 4.650e-09 noise 0 211 2024-03-12 16:14:01 4.478e-09 down 0 212 2024-03-12 16:19:11 4.746e-09 down 0 213 2024-03-12 16:21:23 4.540e-09 noise 0 214 2024-03-12 16:21:42 4.235e-09 noise 0 215 2024-03-12 16:22:42 3.851e-09 down 0 216 2024-03-12 16:23:05 4.117e-09 noise 0 217 2024-03-12 16:24:12 4.231e-09 noise 0 218 2024-03-12 16:25:33 4.503e-09 noise 0 219 2024-03-12 16:31:29 4.298e-09 noise 0 220 2024-03-12 16:35:03 4.526e-09 noise 0 221 2024-03-12 16:35:18 4.143e-09 down 0 222 2024-03-12 16:36:11 4.530e-09 noise 0 223 2024-03-12 16:38:53 4.851e-09 down 0 224 2024-03-12 16:43:35 4.802e-09 noise 0 225 2024-03-12 16:44:40 4.335e-09 up 0 226 2024-03-12 16:45:36 4.468e-09 noise 0 227 2024-03-12 16:48:59 4.730e-09 noise 0 228 2024-03-12 16:49:22 4.337e-09 down 0 229 2024-03-12 16:49:34 4.465e-09 noise 0 230 2024-03-12 16:51:28 4.248e-09 noise 0 231 2024-03-12 16:53:26 3.993e-09 noise 0 232 2024-03-12 16:55:45 3.976e-09 noise 0 233 2024-03-12 16:59:25 4.262e-09 noise 0 234 2024-03-12 17:01:23 3.737e-09 noise 0 235 2024-03-12 17:02:10 4.160e-09 noise 0 236 2024-03-12 17:03:21 4.479e-09 noise 0 237 2024-03-12 17:04:44 4.770e-09 noise 0 238 2024-03-12 17:05:04 4.068e-09 noise 0 239 2024-03-12 17:09:08 3.573e-09 noise 0 240 2024-03-12 17:10:50 3.503e-09 noise 0 241 2024-03-12 17:16:29 4.001e-09 noise 0 242 2024-03-12 17:16:41 3.929e-09 noise 0 243 2024-03-12 17:17:06 4.531e-09 noise 0 244 2024-03-12 17:17:38 4.507e-09 noise 0 245 2024-03-12 17:18:30 4.290e-09 noise 0 246 2024-03-12 17:19:02 4.272e-09 noise 0 247 2024-03-12 17:21:03 4.125e-09 noise 0 248 2024-03-12 17:24:09 4.209e-09 noise 0 249 2024-03-12 17:26:38 4.485e-09 noise 0 250 2024-03-12 17:28:34 3.318e-09 noise 0 251 2024-03-12 17:29:12 3.840e-09 noise 0 252 2024-03-12 17:30:16 3.372e-09 noise 0 253 2024-03-12 17:32:40 3.273e-09 noise 0 254 2024-03-12 17:33:01 3.383e-09 noise 0 255 2024-03-12 17:34:55 3.735e-09 noise 0 256 2024-03-12 17:36:29 4.382e-09 down 0 257 2024-03-12 17:37:52 3.960e-09 down 0 258 2024-03-12 17:40:13 3.553e-09 noise 0 259 2024-03-12 17:40:26 3.541e-09 noise 0 260 2024-03-12 17:41:48 3.842e-09 noise 0 261 2024-03-12 17:42:20 3.797e-09 noise 0 262 2024-03-12 17:44:14 3.892e-09 noise 0 263 2024-03-12 17:46:21 3.777e-09 noise 0 264 2024-03-12 17:47:41 4.434e-09 noise 0 265 2024-03-12 17:50:45 4.217e-09 noise 0 266 2024-03-12 17:51:31 4.145e-09 noise 0 267 2024-03-12 17:52:44 3.941e-09 noise 0 268 2024-03-12 17:55:44 4.106e-09 noise 0 269 2024-03-12 17:56:45 4.646e-09 noise 0 270 2024-03-12 18:01:52 2.888e-09 down 0 271 2024-03-12 18:08:26 2.830e-09 noise 0 272 2024-03-12 18:10:04 3.641e-09 noise 0 273 2024-03-12 18:11:53 3.771e-09 noise 0 274 2024-03-12 18:19:36 4.196e-09 noise 0 275 2024-03-12 18:20:59 3.937e-09 noise 0 276 2024-03-12 18:22:23 3.512e-09 noise 0 277 2024-03-12 18:23:44 4.095e-09 noise 0 278 2024-03-12 18:24:16 4.039e-09 noise 0 279 2024-03-12 18:25:03 3.778e-09 noise 0 280 2024-03-12 18:27:14 4.114e-09 noise 0 281 2024-03-12 18:27:30 4.410e-09 noise 0 282 2024-03-12 18:30:36 3.768e-09 noise 0 283 2024-03-12 18:31:01 3.340e-09 noise 0 284 2024-03-12 18:32:37 3.470e-09 down 0 285 2024-03-12 18:36:59 3.816e-09 noise 0 286 2024-03-12 18:37:34 4.213e-09 noise 0 287 2024-03-12 18:38:55 3.833e-09 noise 0 288 2024-03-12 18:39:33 3.436e-09 noise 0 289 2024-03-12 18:40:53 3.838e-09 noise 0 290 2024-03-12 18:41:10 3.751e-09 noise 0 291 2024-03-12 18:45:40 4.137e-09 down 0 292 2024-03-12 18:49:18 3.330e-09 noise 0 293 2024-03-12 18:55:02 3.525e-09 noise 0 294 2024-03-12 18:59:57 3.343e-09 noise 0 295 2024-03-12 19:01:35 3.124e-09 noise 0 296 2024-03-12 19:09:53 3.785e-09 noise 0 297 2024-03-12 19:13:34 3.414e-09 down 0 298 2024-03-12 19:17:04 3.846e-09 noise 0 299 2024-03-12 19:18:22 3.176e-09 noise 0 300 2024-03-12 19:21:54 3.275e-09 noise 0 301 2024-03-12 19:28:19 3.560e-09 noise 0 302 2024-03-12 19:30:04 3.651e-09 down 0 303 2024-03-12 19:31:13 3.826e-09 noise 0 304 2024-03-12 19:35:33 4.243e-09 down 0 305 2024-03-12 19:40:40 4.357e-09 noise 0 306 2024-03-12 19:49:16 3.040e-09 noise 0 307 2024-03-12 19:53:03 3.498e-09 noise 0 308 2024-03-12 19:55:34 4.063e-09 down 0 309 2024-03-12 19:57:02 4.018e-09 noise 0 310 2024-03-12 19:58:46 3.891e-09 noise 0 311 2024-03-12 19:59:24 3.886e-09 noise 0 312 2024-03-12 20:03:00 3.880e-09 noise 0 313 2024-03-12 20:10:11 3.002e-09 noise 0 314 2024-03-12 20:10:31 4.267e-09 down 0 315 2024-03-12 20:13:08 3.345e-09 noise 0 316 2024-03-12 20:18:40 3.226e-09 noise 0 317 2024-03-12 20:26:12 3.410e-09 noise 0 318 2024-03-12 20:28:19 3.664e-09 noise 0 319 2024-03-12 20:51:15 3.574e-09 noise 0 320 2024-03-12 21:08:23 8.029e-09 down 0 321 2024-03-12 21:14:46 3.102e-09 noise 0 322 2024-03-12 21:19:47 4.064e-09 noise 0 323 2024-03-12 21:34:00 3.293e-09 noise 0 324 2024-03-12 21:45:58 2.874e-09 noise 0 325 2024-03-12 21:55:08 3.361e-09 down 0 326 2024-03-12 21:57:53 4.159e-09 noise 0 327 2024-03-12 22:15:59 2.926e-09 down 0 328 2024-03-12 22:29:45 4.153e-09 up 0 329 2024-03-12 22:37:45 2.951e-09 noise 0 330 2024-03-12 22:56:16 2.863e-09 noise 0 331 2024-03-12 23:16:55 3.408e-09 noise 0 332 2024-03-12 23:49:16 2.886e-09 noise 0 333 2024-03-13 00:05:50 3.110e-09 noise 0 334 2024-03-13 00:12:04 3.059e-09 noise 0 335 2024-03-13 00:57:42 4.262e-09 noise 0 336 2024-03-13 01:05:33 2.613e-09 noise 0 337 2024-03-13 01:20:48 2.851e-09 noise 0 338 2024-03-13 01:34:10 2.665e-09 noise 0 339 2024-03-13 01:34:56 3.440e-09 noise 0 340 2024-03-13 01:55:49 3.065e-09 noise 0 341 2024-03-13 02:26:48 3.107e-09 noise 0 342 2024-03-13 02:38:37 3.176e-09 noise 0 343 2024-03-13 02:43:21 3.061e-09 noise 0 344 2024-03-13 03:14:10 4.420e-09 up 0 345 2024-03-13 03:14:22 9.381e-09 up 0 346 2024-03-13 03:17:41 1.016e-08 up 0 347 2024-03-13 03:31:25 2.874e-09 noise 0 348 2024-03-13 03:36:05 5.231e-09 up 0 349 2024-03-13 04:37:42 2.167e-08 up 0 350 2024-03-13 05:26:29 2.943e-09 noise 0 351 2024-03-13 05:32:42 4.314e-08 up 0 352 2024-03-13 06:15:38 2.905e-09 down 0 353 2024-03-13 06:57:03 3.124e-09 noise 0 354 2024-03-13 07:24:16 3.808e-09 noise 0 355 2024-03-13 07:57:47 2.847e-09 down 0 356 2024-03-13 07:59:06 3.708e-09 noise 0
