| 日期 (UTC) | 20240313 |
|---|---|
| 事件總數 | 261 |
| ↑ up (紅) | 12 |
| ↓ down (橘) | 23 |
| 共模噪音 (綠) | 223 |
| noise_large (洋紅) | 3 |
| CWA 地震 (紫★) | 0 |
| RMS max | 0.000 |
| RMS median | 0.000 |
| RMS mean | 0.000 |
互動版（24 條小時線）：點圖例中的小時色塊 → 該小時線變明顯、其餘變半透明；再點一次還原。

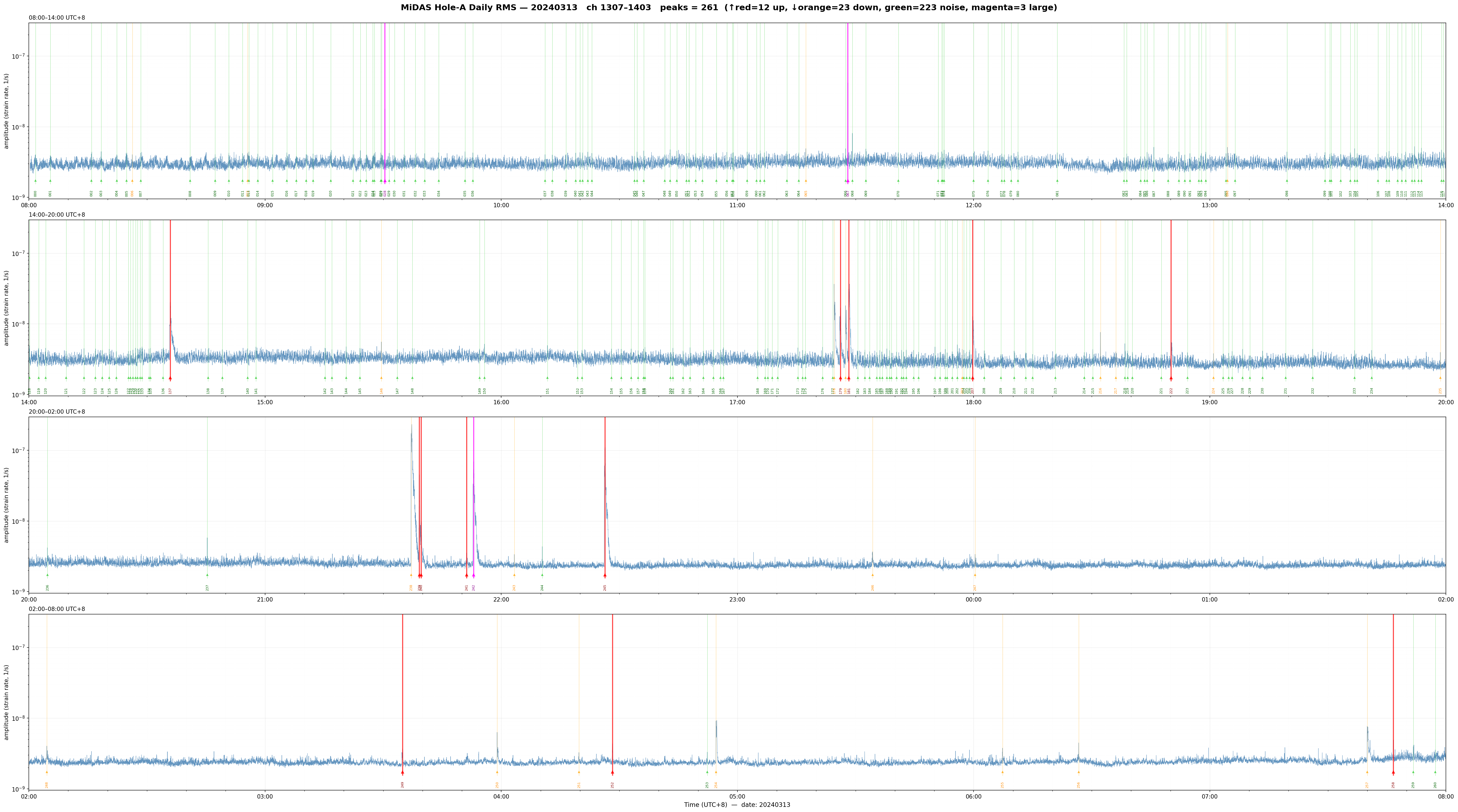

點擊上圖的紅色 up 事件以顯示 waterfall plot。

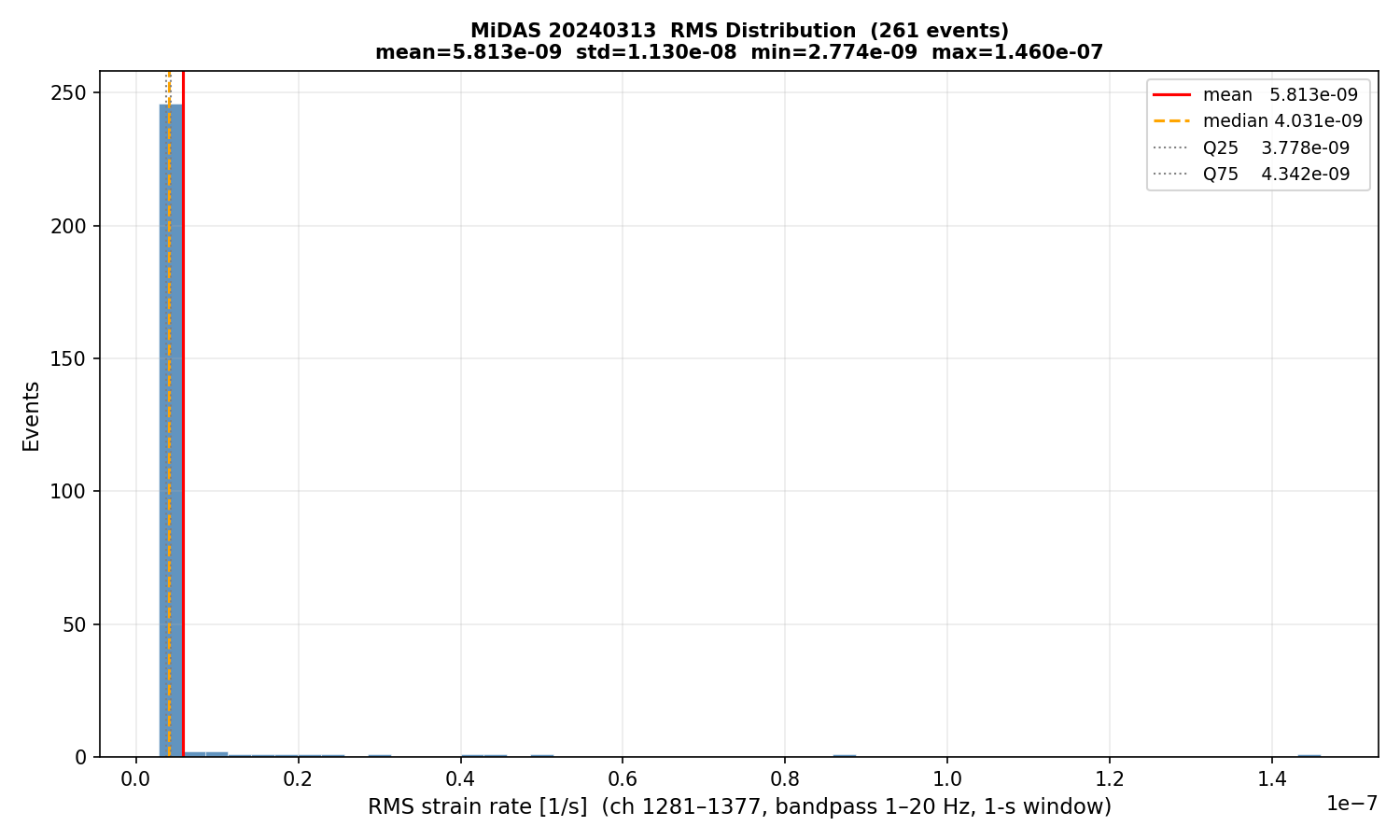

MiDAS Daily RMS peaks — 20240313 Total: 261 events [RMS_below300m 欄位說明] 來源 : 2024 backfill nc（100Hz decimated，Hole A trace 1307–1403，跳過頂部 73 ch，對應深度 ~300–700 m） 前處理: per-file bad-channel masking(median+10×MAD) → bandpass 1–20 Hz（sosfiltfilt，逐檔獨立，非跨檔 causal filter state） 公式 : sqrt( sum(x[ch,t]^2) / (97 ch × 100 samples) ) / DAS_SENSITIVITY 意義 : STA/LTA 偵測峰值那一秒，97 個 channel × 100 個取樣點的 RMS 振幅 單位 : strain rate (1/s)，已轉換為物理應變率（DAS_SENSITIVITY=7.0621e+08） 參考值: 典型背景 ~7.08e-10–2.83e-09，大地震 > 1.13e-08 RMS stats mean=5.813e-09 std=1.130e-08 min=2.774e-09 Q25=3.778e-09 median=4.031e-09 Q75=4.342e-09 max=1.460e-07 ID timestamp_tw (UTC+8) RMS_below300m fk_label CWA ------------------------------------------------------------------ 000 2024-03-13 08:01:41 4.031e-09 noise 0 001 2024-03-13 08:05:27 3.913e-09 noise 0 002 2024-03-13 08:15:53 3.932e-09 noise 0 003 2024-03-13 08:18:23 4.462e-09 noise 0 004 2024-03-13 08:22:21 4.023e-09 noise 0 005 2024-03-13 08:24:49 3.777e-09 noise 0 006 2024-03-13 08:26:17 3.841e-09 down 0 007 2024-03-13 08:28:26 3.894e-09 noise 0 008 2024-03-13 08:40:58 3.702e-09 noise 0 009 2024-03-13 08:47:20 4.077e-09 noise 0 010 2024-03-13 08:50:49 4.261e-09 noise 0 011 2024-03-13 08:54:17 3.654e-09 noise 0 012 2024-03-13 08:55:35 3.844e-09 down 0 013 2024-03-13 08:55:54 4.143e-09 noise 0 014 2024-03-13 08:58:10 3.884e-09 noise 0 015 2024-03-13 09:01:55 3.418e-09 noise 0 016 2024-03-13 09:05:32 4.292e-09 noise 0 017 2024-03-13 09:07:57 3.825e-09 noise 0 018 2024-03-13 09:10:27 3.780e-09 noise 0 019 2024-03-13 09:12:13 3.690e-09 noise 0 020 2024-03-13 09:16:42 4.342e-09 noise 0 021 2024-03-13 09:22:21 3.977e-09 noise 0 022 2024-03-13 09:24:13 4.610e-09 noise 0 023 2024-03-13 09:25:43 3.403e-09 noise 0 024 2024-03-13 09:27:23 3.875e-09 noise 0 025 2024-03-13 09:27:47 3.827e-09 noise 0 026 2024-03-13 09:29:24 4.276e-09 noise 0 027 2024-03-13 09:29:36 3.978e-09 noise 0 028 2024-03-13 09:30:28 1.787e-08 noise_large 0 029 2024-03-13 09:31:32 4.235e-09 noise 0 030 2024-03-13 09:32:53 3.898e-09 noise 0 031 2024-03-13 09:35:20 3.723e-09 noise 0 032 2024-03-13 09:38:11 4.025e-09 noise 0 033 2024-03-13 09:40:34 4.186e-09 noise 0 034 2024-03-13 09:44:08 4.114e-09 noise 0 035 2024-03-13 09:50:48 3.881e-09 noise 0 036 2024-03-13 09:52:48 4.286e-09 noise 0 037 2024-03-13 10:11:08 4.048e-09 noise 0 038 2024-03-13 10:12:59 3.970e-09 noise 0 039 2024-03-13 10:16:27 3.839e-09 noise 0 040 2024-03-13 10:18:55 4.259e-09 noise 0 041 2024-03-13 10:20:01 3.778e-09 noise 0 042 2024-03-13 10:20:40 4.283e-09 noise 0 043 2024-03-13 10:22:00 4.400e-09 noise 0 044 2024-03-13 10:23:02 4.111e-09 noise 0 045 2024-03-13 10:33:51 3.756e-09 noise 0 046 2024-03-13 10:34:30 4.128e-09 noise 0 047 2024-03-13 10:36:12 4.559e-09 noise 0 048 2024-03-13 10:41:32 4.013e-09 noise 0 049 2024-03-13 10:42:54 4.750e-09 noise 0 050 2024-03-13 10:44:36 4.538e-09 noise 0 051 2024-03-13 10:47:03 3.820e-09 noise 0 052 2024-03-13 10:47:41 4.252e-09 noise 0 053 2024-03-13 10:49:23 4.183e-09 noise 0 054 2024-03-13 10:51:07 3.629e-09 noise 0 055 2024-03-13 10:54:39 3.916e-09 noise 0 056 2024-03-13 10:57:19 3.588e-09 noise 0 057 2024-03-13 10:58:41 3.783e-09 noise 0 058 2024-03-13 10:58:59 4.009e-09 noise 0 059 2024-03-13 11:02:28 4.403e-09 noise 0 060 2024-03-13 11:04:51 4.199e-09 noise 0 061 2024-03-13 11:05:47 4.604e-09 noise 0 062 2024-03-13 11:06:50 4.293e-09 noise 0 063 2024-03-13 11:12:34 4.490e-09 noise 0 064 2024-03-13 11:15:35 4.280e-09 noise 0 065 2024-03-13 11:17:24 3.598e-09 down 0 066 2024-03-13 11:27:29 4.904e-09 noise 0 067 2024-03-13 11:28:04 4.195e-08 noise_large 0 068 2024-03-13 11:29:13 3.391e-09 noise 0 069 2024-03-13 11:32:38 4.865e-09 noise 0 070 2024-03-13 11:40:52 4.330e-09 noise 0 071 2024-03-13 11:50:59 4.222e-09 noise 0 072 2024-03-13 11:51:55 3.926e-09 noise 0 073 2024-03-13 11:52:10 4.142e-09 noise 0 074 2024-03-13 11:52:31 3.561e-09 noise 0 075 2024-03-13 11:59:59 4.091e-09 noise 0 076 2024-03-13 12:03:39 4.570e-09 noise 0 077 2024-03-13 12:07:09 3.804e-09 noise 0 078 2024-03-13 12:07:48 4.038e-09 noise 0 079 2024-03-13 12:09:33 3.934e-09 noise 0 080 2024-03-13 12:11:16 4.406e-09 noise 0 081 2024-03-13 12:21:16 3.771e-09 noise 0 082 2024-03-13 12:38:12 3.460e-09 noise 0 083 2024-03-13 12:38:54 4.145e-09 noise 0 084 2024-03-13 12:42:26 3.788e-09 noise 0 085 2024-03-13 12:43:26 3.789e-09 noise 0 086 2024-03-13 12:44:04 3.777e-09 noise 0 087 2024-03-13 12:45:48 3.680e-09 noise 0 088 2024-03-13 12:49:25 3.758e-09 noise 0 089 2024-03-13 12:52:09 3.628e-09 noise 0 090 2024-03-13 12:53:39 4.011e-09 noise 0 091 2024-03-13 12:54:58 3.509e-09 noise 0 092 2024-03-13 12:57:13 3.624e-09 noise 0 093 2024-03-13 12:57:51 4.047e-09 noise 0 094 2024-03-13 12:58:59 4.392e-09 noise 0 095 2024-03-13 13:04:07 4.194e-09 noise 0 096 2024-03-13 13:04:29 3.360e-09 down 0 097 2024-03-13 13:06:25 4.171e-09 noise 0 098 2024-03-13 13:19:36 3.468e-09 noise 0 099 2024-03-13 13:29:16 4.336e-09 noise 0 100 2024-03-13 13:30:29 3.759e-09 noise 0 101 2024-03-13 13:30:52 4.246e-09 noise 0 102 2024-03-13 13:33:15 4.002e-09 noise 0 103 2024-03-13 13:35:42 3.760e-09 noise 0 104 2024-03-13 13:36:49 4.278e-09 noise 0 105 2024-03-13 13:37:26 4.201e-09 noise 0 106 2024-03-13 13:42:43 4.118e-09 noise 0 107 2024-03-13 13:44:54 3.980e-09 noise 0 108 2024-03-13 13:45:32 4.508e-09 noise 0 109 2024-03-13 13:47:43 3.469e-09 noise 0 110 2024-03-13 13:48:47 3.778e-09 noise 0 111 2024-03-13 13:49:45 4.206e-09 noise 0 112 2024-03-13 13:51:22 4.123e-09 noise 0 113 2024-03-13 13:52:01 4.594e-09 noise 0 114 2024-03-13 13:53:01 4.374e-09 noise 0 115 2024-03-13 13:53:46 5.004e-09 noise 0 116 2024-03-13 13:58:51 3.872e-09 noise 0 117 2024-03-13 13:59:23 3.832e-09 noise 0 118 2024-03-13 14:00:10 4.949e-09 noise 0 119 2024-03-13 14:02:30 4.048e-09 noise 0 120 2024-03-13 14:04:16 3.570e-09 noise 0 121 2024-03-13 14:09:28 4.032e-09 noise 0 122 2024-03-13 14:14:01 4.493e-09 noise 0 123 2024-03-13 14:16:54 3.937e-09 noise 0 124 2024-03-13 14:18:39 4.167e-09 noise 0 125 2024-03-13 14:20:25 4.391e-09 noise 0 126 2024-03-13 14:22:14 4.121e-09 noise 0 127 2024-03-13 14:25:19 3.770e-09 noise 0 128 2024-03-13 14:25:48 4.028e-09 noise 0 129 2024-03-13 14:26:27 4.280e-09 noise 0 130 2024-03-13 14:27:06 3.942e-09 noise 0 131 2024-03-13 14:27:37 4.453e-09 noise 0 132 2024-03-13 14:28:16 4.573e-09 noise 0 133 2024-03-13 14:28:45 4.728e-09 noise 0 134 2024-03-13 14:30:32 4.107e-09 noise 0 135 2024-03-13 14:30:55 4.529e-09 noise 0 136 2024-03-13 14:34:05 4.439e-09 noise 0 137 2024-03-13 14:35:55 2.034e-08 up 0 138 2024-03-13 14:45:33 4.363e-09 noise 0 139 2024-03-13 14:49:10 4.337e-09 noise 0 140 2024-03-13 14:55:35 4.353e-09 noise 0 141 2024-03-13 14:57:42 4.720e-09 noise 0 142 2024-03-13 15:15:14 4.111e-09 noise 0 143 2024-03-13 15:17:00 4.345e-09 noise 0 144 2024-03-13 15:20:37 4.760e-09 noise 0 145 2024-03-13 15:24:06 4.527e-09 noise 0 146 2024-03-13 15:29:33 5.565e-09 down 0 147 2024-03-13 15:33:36 4.328e-09 noise 0 148 2024-03-13 15:37:26 4.515e-09 noise 0 149 2024-03-13 15:54:30 4.370e-09 noise 0 150 2024-03-13 15:55:45 5.190e-09 noise 0 151 2024-03-13 16:11:44 4.956e-09 noise 0 152 2024-03-13 16:19:24 4.150e-09 noise 0 153 2024-03-13 16:20:32 4.004e-09 noise 0 154 2024-03-13 16:28:00 4.425e-09 noise 0 155 2024-03-13 16:30:30 4.005e-09 noise 0 156 2024-03-13 16:33:01 4.436e-09 noise 0 157 2024-03-13 16:34:46 4.184e-09 noise 0 158 2024-03-13 16:36:09 4.416e-09 noise 0 159 2024-03-13 16:36:31 4.681e-09 noise 0 160 2024-03-13 16:42:58 3.945e-09 noise 0 161 2024-03-13 16:43:37 4.546e-09 noise 0 162 2024-03-13 16:46:11 4.076e-09 noise 0 163 2024-03-13 16:47:58 4.005e-09 noise 0 164 2024-03-13 16:51:21 3.852e-09 noise 0 165 2024-03-13 16:53:54 4.266e-09 noise 0 166 2024-03-13 16:55:41 4.095e-09 noise 0 167 2024-03-13 16:56:26 4.608e-09 noise 0 168 2024-03-13 17:05:07 3.534e-09 noise 0 169 2024-03-13 17:07:02 4.027e-09 noise 0 170 2024-03-13 17:07:44 4.095e-09 noise 0 171 2024-03-13 17:08:51 3.843e-09 noise 0 172 2024-03-13 17:10:14 3.928e-09 noise 0 173 2024-03-13 17:15:22 3.778e-09 noise 0 174 2024-03-13 17:16:34 4.239e-09 noise 0 175 2024-03-13 17:17:16 4.099e-09 noise 0 176 2024-03-13 17:21:39 4.358e-09 noise 0 177 2024-03-13 17:24:13 4.097e-09 noise 0 178 2024-03-13 17:24:35 2.529e-08 down 0 179 2024-03-13 17:26:11 1.593e-08 up 0 180 2024-03-13 17:27:28 1.228e-08 down 0 181 2024-03-13 17:28:18 3.126e-08 up 0 182 2024-03-13 17:30:35 4.148e-09 noise 0 183 2024-03-13 17:32:23 4.279e-09 noise 0 184 2024-03-13 17:33:34 3.468e-09 noise 0 185 2024-03-13 17:35:24 3.797e-09 noise 0 186 2024-03-13 17:36:10 3.526e-09 noise 0 187 2024-03-13 17:36:49 3.680e-09 noise 0 188 2024-03-13 17:37:58 4.449e-09 noise 0 189 2024-03-13 17:38:40 4.217e-09 noise 0 190 2024-03-13 17:39:08 3.816e-09 noise 0 191 2024-03-13 17:40:26 4.009e-09 noise 0 192 2024-03-13 17:41:42 3.896e-09 noise 0 193 2024-03-13 17:42:12 4.012e-09 noise 0 194 2024-03-13 17:42:54 4.276e-09 noise 0 195 2024-03-13 17:44:46 3.863e-09 noise 0 196 2024-03-13 17:46:01 3.995e-09 noise 0 197 2024-03-13 17:50:11 4.720e-09 noise 0 198 2024-03-13 17:51:28 3.697e-09 noise 0 199 2024-03-13 17:52:49 3.661e-09 noise 0 200 2024-03-13 17:53:17 3.828e-09 noise 0 201 2024-03-13 17:54:35 3.527e-09 noise 0 202 2024-03-13 17:55:52 4.319e-09 noise 0 203 2024-03-13 17:57:08 4.213e-09 down 0 204 2024-03-13 17:57:31 3.675e-09 noise 0 205 2024-03-13 17:58:13 4.020e-09 noise 0 206 2024-03-13 17:59:00 4.040e-09 noise 0 207 2024-03-13 17:59:46 9.941e-09 up 0 208 2024-03-13 18:02:42 4.177e-09 noise 0 209 2024-03-13 18:06:56 3.694e-09 noise 0 210 2024-03-13 18:10:19 3.589e-09 noise 0 211 2024-03-13 18:13:15 3.685e-09 noise 0 212 2024-03-13 18:14:59 3.372e-09 noise 0 213 2024-03-13 18:20:46 3.479e-09 noise 0 214 2024-03-13 18:28:07 3.398e-09 noise 0 215 2024-03-13 18:30:17 3.827e-09 noise 0 216 2024-03-13 18:32:13 4.728e-09 down 0 217 2024-03-13 18:36:08 4.028e-09 down 0 218 2024-03-13 18:38:26 3.573e-09 noise 0 219 2024-03-13 18:39:08 3.928e-09 noise 0 220 2024-03-13 18:40:20 3.993e-09 noise 0 221 2024-03-13 18:47:40 3.450e-09 noise 0 222 2024-03-13 18:50:10 4.550e-09 up 0 223 2024-03-13 18:54:20 3.501e-09 noise 0 224 2024-03-13 19:00:56 3.431e-09 down 0 225 2024-03-13 19:03:23 3.484e-09 noise 0 226 2024-03-13 19:04:47 3.853e-09 noise 0 227 2024-03-13 19:05:40 3.504e-09 noise 0 228 2024-03-13 19:08:19 4.385e-09 noise 0 229 2024-03-13 19:10:11 3.512e-09 noise 0 230 2024-03-13 19:13:24 4.144e-09 noise 0 231 2024-03-13 19:19:16 3.584e-09 noise 0 232 2024-03-13 19:26:08 3.307e-09 noise 0 233 2024-03-13 19:36:46 3.182e-09 noise 0 234 2024-03-13 19:41:08 3.484e-09 noise 0 235 2024-03-13 19:58:34 3.203e-09 down 0 236 2024-03-13 20:04:44 3.783e-09 noise 0 237 2024-03-13 20:45:20 3.808e-09 noise 0 238 2024-03-13 21:37:07 1.460e-07 down 0 239 2024-03-13 21:39:13 4.522e-08 up 0 240 2024-03-13 21:39:40 9.393e-09 up 0 241 2024-03-13 21:51:13 3.535e-09 up 0 242 2024-03-13 21:52:59 4.885e-08 noise_large 0 243 2024-03-13 22:03:20 2.774e-09 down 0 244 2024-03-13 22:10:25 4.341e-09 noise 0 245 2024-03-13 22:26:21 8.707e-08 up 0 246 2024-03-13 23:34:21 3.692e-09 down 0 247 2024-03-14 00:00:22 3.382e-09 down 0 248 2024-03-14 02:04:34 4.031e-09 down 0 249 2024-03-14 03:34:56 3.677e-09 up 0 250 2024-03-14 03:58:58 4.312e-09 down 0 251 2024-03-14 04:19:45 3.151e-09 down 0 252 2024-03-14 04:28:16 3.949e-09 up 0 253 2024-03-14 04:52:20 3.299e-09 noise 0 254 2024-03-14 04:54:34 7.374e-09 down 0 255 2024-03-14 06:07:21 3.771e-09 down 0 256 2024-03-14 06:26:42 3.816e-09 down 0 257 2024-03-14 07:39:59 7.661e-09 down 0 258 2024-03-14 07:46:38 4.913e-09 up 0 259 2024-03-14 07:51:41 3.538e-09 noise 0 260 2024-03-14 07:57:16 3.522e-09 noise 0
