| 日期 (UTC) | 20240322 |
|---|---|
| 事件總數 | 273 |
| ↑ up (紅) | 16 |
| ↓ down (橘) | 17 |
| 共模噪音 (綠) | 237 |
| noise_large (洋紅) | 3 |
| CWA 地震 (紫★) | 0 |
| RMS max | 0.000 |
| RMS median | 0.000 |
| RMS mean | 0.000 |

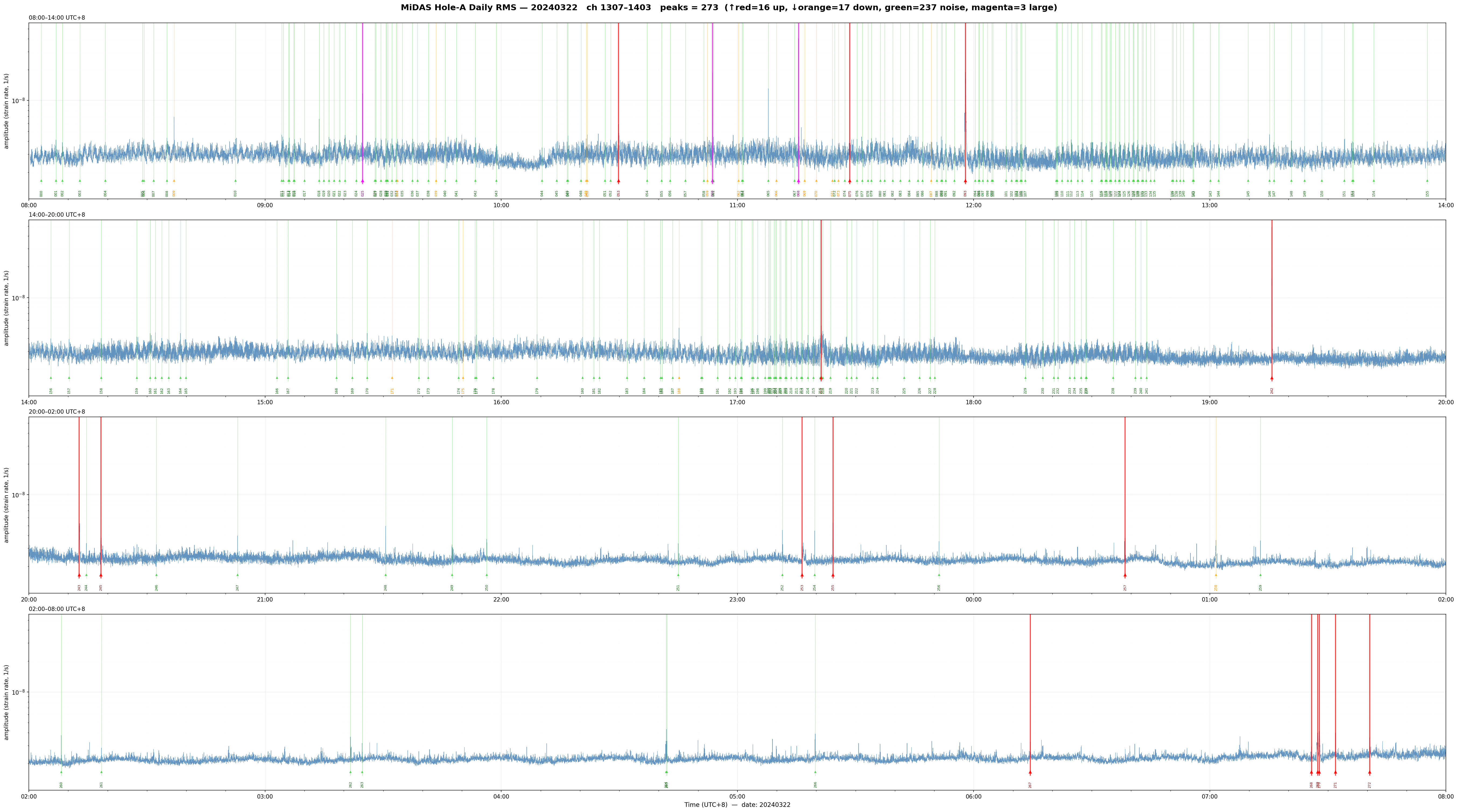

互動版（24 條小時線）：點圖例中的小時色塊 → 該小時線變明顯、其餘變半透明；再點一次還原。
點擊上圖的紅色 up 事件以顯示 waterfall plot。

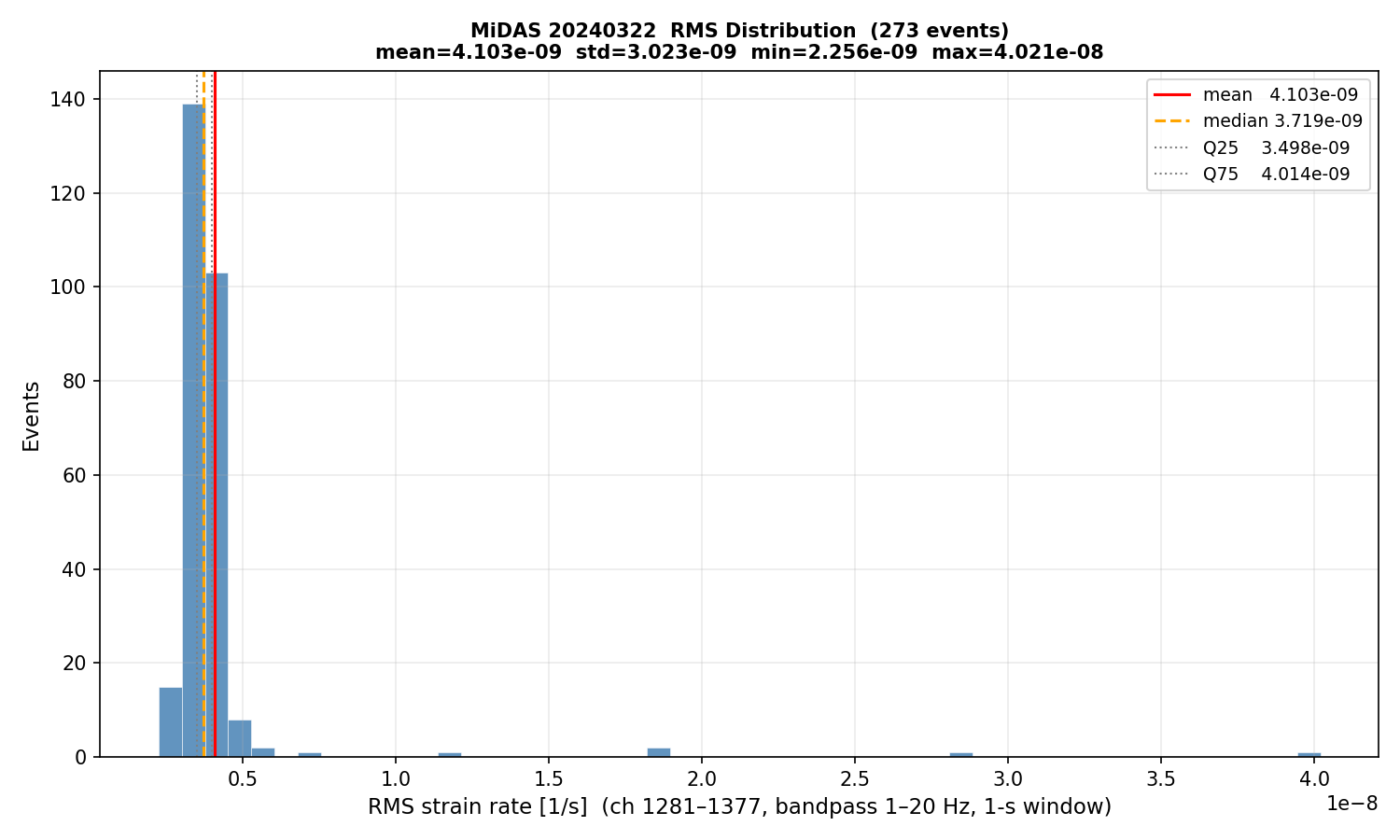

MiDAS Daily RMS peaks — 20240322 Total: 273 events [RMS_below300m 欄位說明] 來源 : 2024 backfill nc（100Hz decimated，Hole A trace 1307–1403，跳過頂部 73 ch，對應深度 ~300–700 m） 前處理: per-file bad-channel masking(median+10×MAD) → bandpass 1–20 Hz（sosfiltfilt，逐檔獨立，非跨檔 causal filter state） 公式 : sqrt( sum(x[ch,t]^2) / (97 ch × 100 samples) ) / DAS_SENSITIVITY 意義 : STA/LTA 偵測峰值那一秒，97 個 channel × 100 個取樣點的 RMS 振幅 單位 : strain rate (1/s)，已轉換為物理應變率（DAS_SENSITIVITY=7.0621e+08） 參考值: 典型背景 ~7.08e-10–2.83e-09，大地震 > 1.13e-08 RMS stats mean=4.103e-09 std=3.023e-09 min=2.256e-09 Q25=3.498e-09 median=3.719e-09 Q75=4.014e-09 max=4.021e-08 ID timestamp_tw (UTC+8) RMS_below300m fk_label CWA ------------------------------------------------------------------ 000 2024-03-22 08:03:09 3.694e-09 noise 0 001 2024-03-22 08:06:54 4.129e-09 noise 0 002 2024-03-22 08:08:32 3.896e-09 noise 0 003 2024-03-22 08:12:58 3.708e-09 noise 0 004 2024-03-22 08:19:26 3.942e-09 noise 0 005 2024-03-22 08:28:52 4.353e-09 noise 0 006 2024-03-22 08:29:14 4.193e-09 noise 0 007 2024-03-22 08:31:43 3.877e-09 noise 0 008 2024-03-22 08:35:05 4.311e-09 noise 0 009 2024-03-22 08:36:53 6.907e-09 down 0 010 2024-03-22 08:52:30 4.173e-09 noise 0 011 2024-03-22 09:04:14 4.608e-09 noise 0 012 2024-03-22 09:04:40 4.143e-09 noise 0 013 2024-03-22 09:05:57 3.825e-09 noise 0 014 2024-03-22 09:06:11 4.330e-09 noise 0 015 2024-03-22 09:07:17 3.670e-09 noise 0 016 2024-03-22 09:07:29 4.182e-09 noise 0 017 2024-03-22 09:10:02 3.914e-09 noise 0 018 2024-03-22 09:13:45 3.254e-09 noise 0 019 2024-03-22 09:14:57 3.707e-09 noise 0 020 2024-03-22 09:16:15 4.075e-09 noise 0 021 2024-03-22 09:17:33 3.793e-09 noise 0 022 2024-03-22 09:18:57 4.133e-09 noise 0 023 2024-03-22 09:20:20 4.605e-09 noise 0 024 2024-03-22 09:23:12 4.559e-09 noise 0 025 2024-03-22 09:24:47 1.169e-08 noise_large 0 026 2024-03-22 09:27:53 3.602e-09 noise 0 027 2024-03-22 09:28:08 4.326e-09 noise 0 028 2024-03-22 09:29:27 4.257e-09 noise 0 029 2024-03-22 09:30:42 4.248e-09 noise 0 030 2024-03-22 09:30:57 3.743e-09 noise 0 031 2024-03-22 09:31:10 4.072e-09 noise 0 032 2024-03-22 09:32:15 3.689e-09 noise 0 033 2024-03-22 09:33:20 3.774e-09 noise 0 034 2024-03-22 09:33:38 4.199e-09 down 0 035 2024-03-22 09:34:53 3.698e-09 noise 0 036 2024-03-22 09:37:27 3.942e-09 noise 0 037 2024-03-22 09:38:45 3.815e-09 noise 0 038 2024-03-22 09:41:31 3.934e-09 noise 0 039 2024-03-22 09:43:28 3.777e-09 down 0 040 2024-03-22 09:45:45 3.693e-09 noise 0 041 2024-03-22 09:48:36 4.317e-09 noise 0 042 2024-03-22 09:53:26 4.337e-09 noise 0 043 2024-03-22 09:58:46 3.737e-09 noise 0 044 2024-03-22 10:10:22 3.465e-09 noise 0 045 2024-03-22 10:14:06 3.927e-09 noise 0 046 2024-03-22 10:16:45 3.649e-09 noise 0 047 2024-03-22 10:16:58 4.531e-09 noise 0 048 2024-03-22 10:20:16 3.645e-09 noise 0 049 2024-03-22 10:21:34 4.235e-09 down 0 050 2024-03-22 10:21:53 4.639e-09 down 0 051 2024-03-22 10:26:21 3.767e-09 noise 0 052 2024-03-22 10:27:47 3.750e-09 noise 0 053 2024-03-22 10:29:49 5.421e-09 up 0 054 2024-03-22 10:37:04 4.053e-09 noise 0 055 2024-03-22 10:40:45 3.401e-09 noise 0 056 2024-03-22 10:42:55 3.197e-09 noise 0 057 2024-03-22 10:46:47 3.893e-09 noise 0 058 2024-03-22 10:51:29 4.036e-09 noise 0 059 2024-03-22 10:52:23 3.609e-09 down 0 060 2024-03-22 10:53:41 1.854e-08 noise_large 0 061 2024-03-22 10:53:54 4.396e-09 noise 0 062 2024-03-22 11:00:18 3.792e-09 down 0 063 2024-03-22 11:01:10 3.982e-09 noise 0 064 2024-03-22 11:01:24 3.514e-09 noise 0 065 2024-03-22 11:07:51 4.180e-09 noise 0 066 2024-03-22 11:09:55 3.350e-09 down 0 067 2024-03-22 11:14:31 4.357e-09 noise 0 068 2024-03-22 11:15:31 4.021e-08 noise_large 0 069 2024-03-22 11:17:05 3.552e-09 down 0 070 2024-03-22 11:20:03 4.164e-09 down 0 071 2024-03-22 11:24:08 2.980e-09 down 0 072 2024-03-22 11:24:41 3.408e-09 noise 0 073 2024-03-22 11:25:40 3.380e-09 down 0 074 2024-03-22 11:27:16 3.912e-09 noise 0 075 2024-03-22 11:28:32 3.743e-09 up 0 076 2024-03-22 11:30:23 4.199e-09 noise 0 077 2024-03-22 11:31:44 4.013e-09 noise 0 078 2024-03-22 11:33:10 4.121e-09 noise 0 079 2024-03-22 11:34:02 4.281e-09 noise 0 080 2024-03-22 11:36:19 3.873e-09 noise 0 081 2024-03-22 11:37:24 4.000e-09 noise 0 082 2024-03-22 11:39:28 4.337e-09 noise 0 083 2024-03-22 11:41:24 3.742e-09 noise 0 084 2024-03-22 11:43:40 3.764e-09 noise 0 085 2024-03-22 11:45:52 3.982e-09 noise 0 086 2024-03-22 11:47:01 3.948e-09 noise 0 087 2024-03-22 11:49:13 3.957e-09 down 0 088 2024-03-22 11:50:40 3.934e-09 noise 0 089 2024-03-22 11:51:47 4.448e-09 noise 0 090 2024-03-22 11:52:01 3.658e-09 noise 0 091 2024-03-22 11:52:56 3.446e-09 noise 0 092 2024-03-22 11:55:07 3.558e-09 noise 0 093 2024-03-22 11:57:55 1.891e-08 up 0 094 2024-03-22 12:00:24 3.144e-09 noise 0 095 2024-03-22 12:01:17 3.981e-09 noise 0 096 2024-03-22 12:01:29 4.030e-09 noise 0 097 2024-03-22 12:02:20 4.010e-09 noise 0 098 2024-03-22 12:03:33 3.542e-09 noise 0 099 2024-03-22 12:04:37 3.976e-09 noise 0 100 2024-03-22 12:04:53 3.767e-09 noise 0 101 2024-03-22 12:08:14 3.575e-09 noise 0 102 2024-03-22 12:09:39 3.286e-09 noise 0 103 2024-03-22 12:10:47 3.221e-09 noise 0 104 2024-03-22 12:11:03 3.883e-09 noise 0 105 2024-03-22 12:11:56 3.499e-09 noise 0 106 2024-03-22 12:12:12 3.425e-09 noise 0 107 2024-03-22 12:13:07 3.566e-09 noise 0 108 2024-03-22 12:20:59 3.474e-09 noise 0 109 2024-03-22 12:21:15 3.563e-09 noise 0 110 2024-03-22 12:22:28 3.901e-09 noise 0 111 2024-03-22 12:23:56 3.241e-09 noise 0 112 2024-03-22 12:24:47 4.158e-09 noise 0 113 2024-03-22 12:26:28 3.430e-09 noise 0 114 2024-03-22 12:27:36 3.605e-09 noise 0 115 2024-03-22 12:30:01 3.218e-09 noise 0 116 2024-03-22 12:32:23 3.345e-09 noise 0 117 2024-03-22 12:32:36 3.539e-09 noise 0 118 2024-03-22 12:33:31 3.547e-09 noise 0 119 2024-03-22 12:33:47 3.525e-09 noise 0 120 2024-03-22 12:34:39 2.846e-09 noise 0 121 2024-03-22 12:34:55 3.586e-09 noise 0 122 2024-03-22 12:35:59 3.776e-09 noise 0 123 2024-03-22 12:36:54 3.517e-09 noise 0 124 2024-03-22 12:37:07 3.311e-09 noise 0 125 2024-03-22 12:38:18 3.826e-09 noise 0 126 2024-03-22 12:39:26 3.634e-09 noise 0 127 2024-03-22 12:40:30 3.820e-09 noise 0 128 2024-03-22 12:40:43 3.541e-09 noise 0 129 2024-03-22 12:41:38 4.113e-09 noise 0 130 2024-03-22 12:41:51 3.498e-09 noise 0 131 2024-03-22 12:42:47 3.666e-09 noise 0 132 2024-03-22 12:43:03 3.446e-09 noise 0 133 2024-03-22 12:43:50 3.729e-09 noise 0 134 2024-03-22 12:44:58 3.396e-09 noise 0 135 2024-03-22 12:45:54 3.770e-09 noise 0 136 2024-03-22 12:50:25 3.460e-09 noise 0 137 2024-03-22 12:50:41 3.836e-09 noise 0 138 2024-03-22 12:51:33 3.494e-09 noise 0 139 2024-03-22 12:52:29 3.676e-09 noise 0 140 2024-03-22 12:53:20 3.300e-09 noise 0 141 2024-03-22 12:55:42 3.169e-09 noise 0 142 2024-03-22 12:55:55 3.621e-09 noise 0 143 2024-03-22 13:00:09 3.677e-09 noise 0 144 2024-03-22 13:02:14 3.668e-09 noise 0 145 2024-03-22 13:09:44 4.219e-09 noise 0 146 2024-03-22 13:15:10 4.660e-09 noise 0 147 2024-03-22 13:16:19 3.327e-09 noise 0 148 2024-03-22 13:20:43 4.053e-09 noise 0 149 2024-03-22 13:24:05 3.580e-09 noise 0 150 2024-03-22 13:28:27 3.755e-09 noise 0 151 2024-03-22 13:34:10 3.778e-09 noise 0 152 2024-03-22 13:36:12 3.551e-09 noise 0 153 2024-03-22 13:36:28 3.602e-09 noise 0 154 2024-03-22 13:41:39 3.865e-09 noise 0 155 2024-03-22 13:55:14 3.630e-09 noise 0 156 2024-03-22 14:05:35 3.349e-09 noise 0 157 2024-03-22 14:10:13 3.737e-09 noise 0 158 2024-03-22 14:18:23 3.693e-09 noise 0 159 2024-03-22 14:27:26 3.561e-09 noise 0 160 2024-03-22 14:30:49 3.419e-09 noise 0 161 2024-03-22 14:32:09 4.561e-09 noise 0 162 2024-03-22 14:33:46 3.649e-09 noise 0 163 2024-03-22 14:35:32 3.623e-09 noise 0 164 2024-03-22 14:38:31 3.233e-09 noise 0 165 2024-03-22 14:39:55 3.513e-09 noise 0 166 2024-03-22 15:03:02 3.665e-09 noise 0 167 2024-03-22 15:05:51 3.938e-09 noise 0 168 2024-03-22 15:18:10 4.461e-09 noise 0 169 2024-03-22 15:22:11 3.897e-09 noise 0 170 2024-03-22 15:25:57 4.022e-09 noise 0 171 2024-03-22 15:32:17 3.835e-09 down 0 172 2024-03-22 15:39:04 3.651e-09 noise 0 173 2024-03-22 15:41:27 3.578e-09 noise 0 174 2024-03-22 15:49:11 3.439e-09 noise 0 175 2024-03-22 15:50:18 3.538e-09 down 0 176 2024-03-22 15:53:22 4.168e-09 noise 0 177 2024-03-22 15:53:42 4.342e-09 noise 0 178 2024-03-22 15:57:59 4.098e-09 noise 0 179 2024-03-22 16:09:06 4.380e-09 noise 0 180 2024-03-22 16:20:40 3.802e-09 noise 0 181 2024-03-22 16:23:32 4.030e-09 noise 0 182 2024-03-22 16:24:58 3.937e-09 noise 0 183 2024-03-22 16:31:57 3.778e-09 noise 0 184 2024-03-22 16:36:19 3.652e-09 noise 0 185 2024-03-22 16:40:29 3.537e-09 noise 0 186 2024-03-22 16:40:50 3.904e-09 noise 0 187 2024-03-22 16:43:34 3.240e-09 noise 0 188 2024-03-22 16:45:11 4.014e-09 down 0 189 2024-03-22 16:50:48 4.193e-09 noise 0 190 2024-03-22 16:51:04 3.721e-09 noise 0 191 2024-03-22 16:54:58 3.427e-09 noise 0 192 2024-03-22 16:58:03 3.358e-09 noise 0 193 2024-03-22 16:59:29 3.612e-09 noise 0 194 2024-03-22 17:00:52 3.272e-09 noise 0 195 2024-03-22 17:01:06 3.719e-09 noise 0 196 2024-03-22 17:03:44 3.576e-09 noise 0 197 2024-03-22 17:04:03 3.459e-09 noise 0 198 2024-03-22 17:05:09 3.787e-09 noise 0 199 2024-03-22 17:07:02 4.033e-09 noise 0 200 2024-03-22 17:07:54 3.819e-09 noise 0 201 2024-03-22 17:08:10 3.537e-09 noise 0 202 2024-03-22 17:08:26 4.243e-09 noise 0 203 2024-03-22 17:09:19 3.797e-09 noise 0 204 2024-03-22 17:09:38 3.553e-09 noise 0 205 2024-03-22 17:09:51 3.770e-09 noise 0 206 2024-03-22 17:10:46 4.374e-09 noise 0 207 2024-03-22 17:11:02 3.968e-09 noise 0 208 2024-03-22 17:12:11 3.197e-09 noise 0 209 2024-03-22 17:12:27 3.999e-09 noise 0 210 2024-03-22 17:13:39 3.390e-09 noise 0 211 2024-03-22 17:15:03 3.615e-09 noise 0 212 2024-03-22 17:16:11 3.429e-09 noise 0 213 2024-03-22 17:16:27 3.618e-09 noise 0 214 2024-03-22 17:17:55 4.314e-09 noise 0 215 2024-03-22 17:19:19 4.157e-09 noise 0 216 2024-03-22 17:21:02 4.268e-09 noise 0 217 2024-03-22 17:21:18 5.205e-09 up 0 218 2024-03-22 17:21:42 4.714e-09 noise 0 219 2024-03-22 17:23:38 3.586e-09 noise 0 220 2024-03-22 17:27:46 4.181e-09 noise 0 221 2024-03-22 17:28:58 3.216e-09 noise 0 222 2024-03-22 17:30:17 3.507e-09 noise 0 223 2024-03-22 17:34:23 3.525e-09 noise 0 224 2024-03-22 17:35:35 3.349e-09 noise 0 225 2024-03-22 17:42:22 3.788e-09 noise 0 226 2024-03-22 17:46:16 3.711e-09 noise 0 227 2024-03-22 17:48:56 3.960e-09 noise 0 228 2024-03-22 17:50:09 3.503e-09 noise 0 229 2024-03-22 18:13:10 3.383e-09 noise 0 230 2024-03-22 18:17:34 3.393e-09 noise 0 231 2024-03-22 18:20:23 3.270e-09 noise 0 232 2024-03-22 18:21:26 3.490e-09 noise 0 233 2024-03-22 18:24:26 3.488e-09 noise 0 234 2024-03-22 18:25:38 3.725e-09 noise 0 235 2024-03-22 18:27:18 3.933e-09 noise 0 236 2024-03-22 18:28:30 3.633e-09 noise 0 237 2024-03-22 18:28:42 3.372e-09 noise 0 238 2024-03-22 18:35:26 3.700e-09 noise 0 239 2024-03-22 18:41:05 3.515e-09 noise 0 240 2024-03-22 18:42:31 3.434e-09 noise 0 241 2024-03-22 18:43:57 3.550e-09 noise 0 242 2024-03-22 19:15:46 2.864e-08 up 0 243 2024-03-22 20:12:48 4.460e-09 up 0 244 2024-03-22 20:14:37 3.365e-09 noise 0 245 2024-03-22 20:18:18 3.538e-09 up 0 246 2024-03-22 20:32:25 3.266e-09 noise 0 247 2024-03-22 20:53:01 2.823e-09 noise 0 248 2024-03-22 21:30:38 3.105e-09 noise 0 249 2024-03-22 21:47:31 2.759e-09 noise 0 250 2024-03-22 21:56:19 2.921e-09 noise 0 251 2024-03-22 22:44:58 2.429e-09 noise 0 252 2024-03-22 23:11:25 2.477e-09 noise 0 253 2024-03-22 23:16:26 3.109e-09 up 0 254 2024-03-22 23:19:37 4.455e-09 noise 0 255 2024-03-22 23:24:16 5.297e-09 up 0 256 2024-03-22 23:51:13 2.474e-09 noise 0 257 2024-03-23 00:38:29 2.341e-09 up 0 258 2024-03-23 01:01:34 3.606e-09 down 0 259 2024-03-23 01:12:52 3.564e-09 noise 0 260 2024-03-23 02:08:14 2.331e-09 noise 0 261 2024-03-23 02:18:26 2.841e-09 noise 0 262 2024-03-23 03:21:42 2.256e-09 noise 0 263 2024-03-23 03:24:40 2.860e-09 noise 0 264 2024-03-23 04:41:52 3.054e-09 noise 0 265 2024-03-23 04:42:05 3.315e-09 noise 0 266 2024-03-23 05:19:47 2.341e-09 noise 0 267 2024-03-23 06:14:23 3.239e-09 up 0 268 2024-03-23 07:25:49 2.933e-09 up 0 269 2024-03-23 07:27:24 3.902e-09 up 0 270 2024-03-23 07:27:48 3.771e-09 up 0 271 2024-03-23 07:31:56 3.982e-09 up 0 272 2024-03-23 07:40:37 3.573e-09 up 0
