| 日期 (UTC) | 20240418 |
|---|---|
| 事件總數 | 349 |
| ↑ up (紅) | 219 |
| ↓ down (橘) | 94 |
| 共模噪音 (綠) | 34 |
| noise_large (洋紅) | 2 |
| CWA 地震 (紫★) | 0 |
| RMS max | 0.000 |
| RMS median | 0.000 |
| RMS mean | 0.000 |

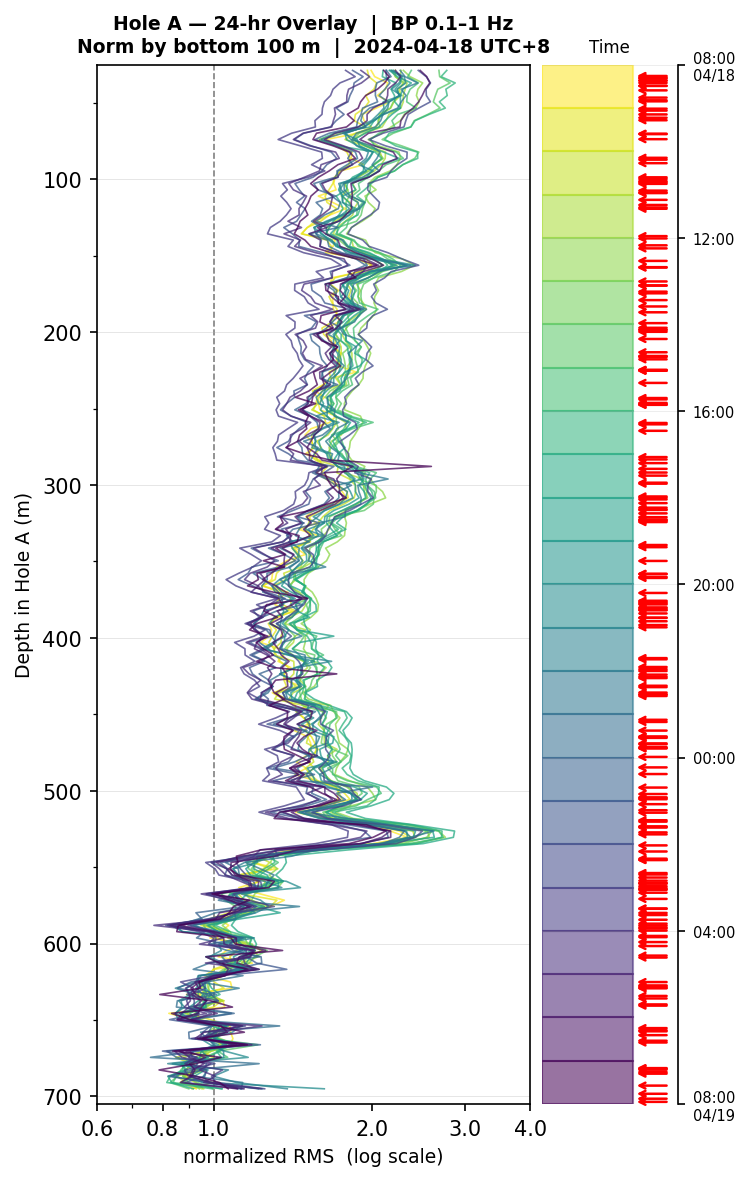

互動版（24 條小時線）：點圖例中的小時色塊 → 該小時線變明顯、其餘變半透明；再點一次還原。

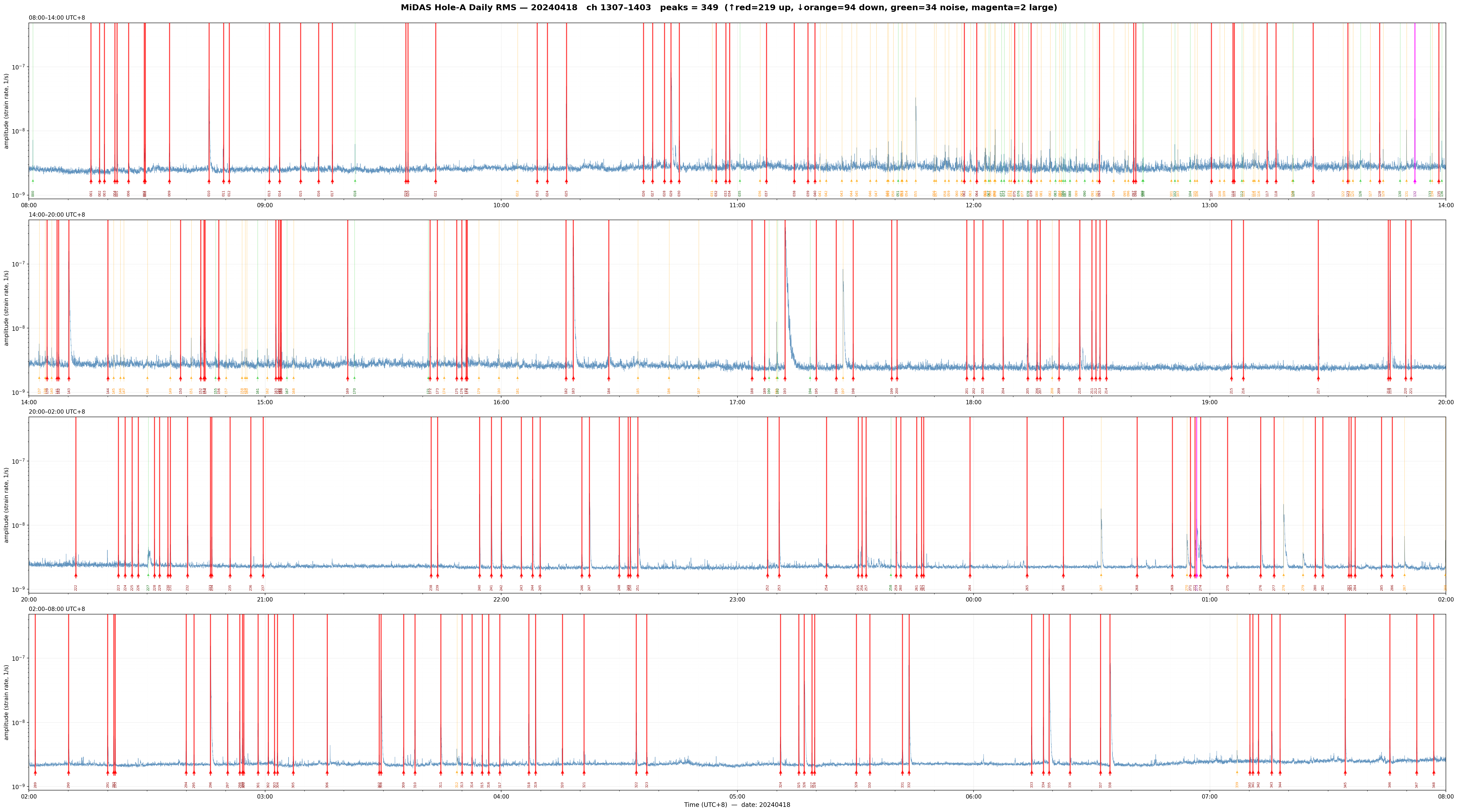

點擊上圖的紅色 up 事件以顯示 waterfall plot。

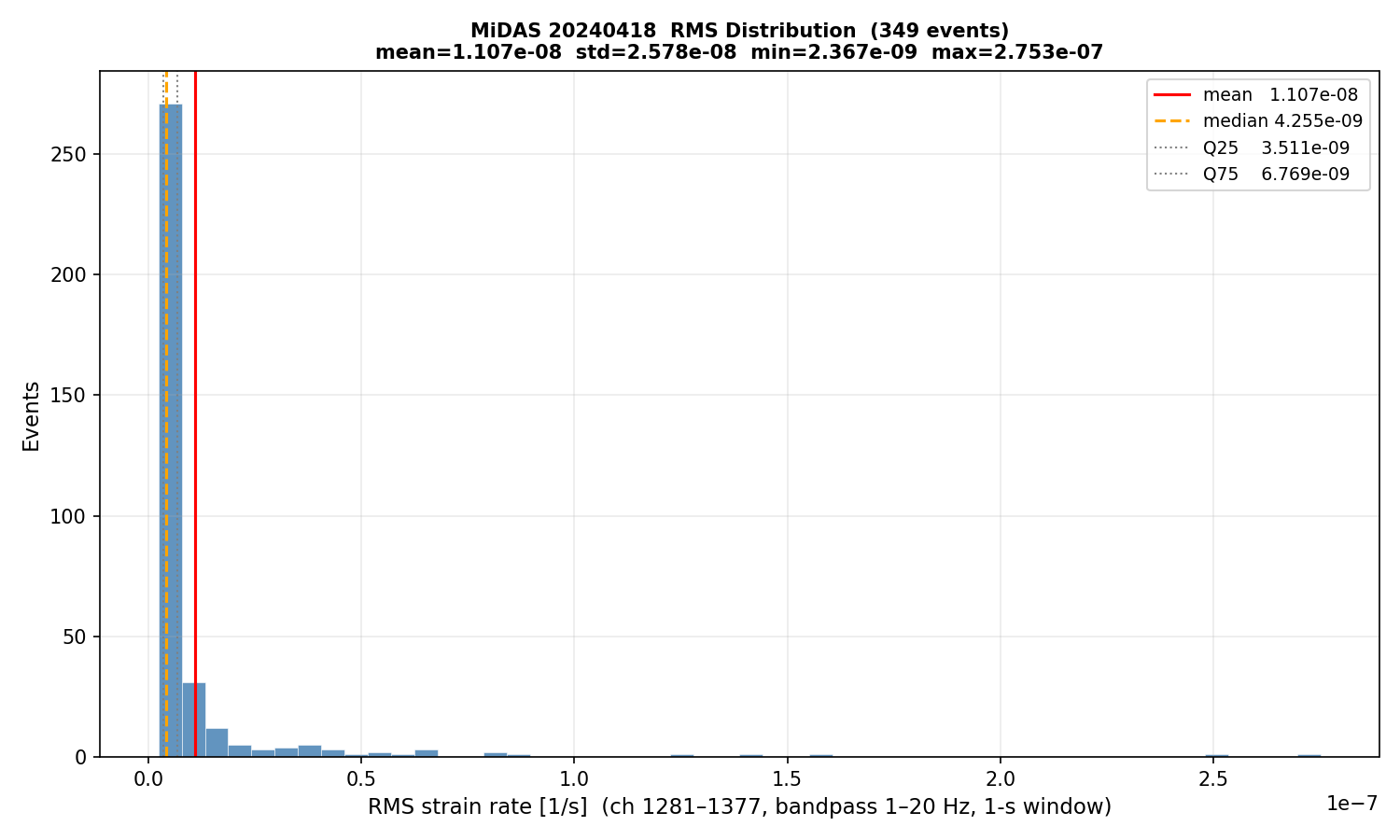

MiDAS Daily RMS peaks — 20240418 Total: 349 events [RMS_below300m 欄位說明] 來源 : 2024 backfill nc（100Hz decimated，Hole A trace 1307–1403，跳過頂部 73 ch，對應深度 ~300–700 m） 前處理: per-file bad-channel masking(median+10×MAD) → bandpass 1–20 Hz（sosfiltfilt，逐檔獨立，非跨檔 causal filter state） 公式 : sqrt( sum(x[ch,t]^2) / (97 ch × 100 samples) ) / DAS_SENSITIVITY 意義 : STA/LTA 偵測峰值那一秒，97 個 channel × 100 個取樣點的 RMS 振幅 單位 : strain rate (1/s)，已轉換為物理應變率（DAS_SENSITIVITY=7.0621e+08） 參考值: 典型背景 ~7.08e-10–2.83e-09，大地震 > 1.13e-08 RMS stats mean=1.107e-08 std=2.578e-08 min=2.367e-09 Q25=3.511e-09 median=4.255e-09 Q75=6.769e-09 max=2.753e-07 ID timestamp_tw (UTC+8) RMS_below300m fk_label CWA ------------------------------------------------------------------ 000 2024-04-18 08:01:02 7.216e-09 noise 0 001 2024-04-18 08:15:48 3.551e-09 up 0 002 2024-04-18 08:18:00 3.350e-09 up 0 003 2024-04-18 08:19:13 4.511e-09 up 0 004 2024-04-18 08:21:50 3.655e-09 up 0 005 2024-04-18 08:22:25 3.785e-08 up 0 006 2024-04-18 08:25:20 2.935e-09 up 0 007 2024-04-18 08:29:21 4.389e-09 up 0 008 2024-04-18 08:29:34 4.301e-09 up 0 009 2024-04-18 08:35:43 6.367e-09 up 0 010 2024-04-18 08:45:46 4.373e-08 up 0 011 2024-04-18 08:49:28 6.076e-09 up 0 012 2024-04-18 08:50:54 3.373e-09 up 0 013 2024-04-18 09:01:06 3.806e-09 up 0 014 2024-04-18 09:03:44 3.783e-09 up 0 015 2024-04-18 09:09:04 6.718e-09 up 0 016 2024-04-18 09:13:38 3.900e-09 up 0 017 2024-04-18 09:17:07 5.876e-09 up 0 018 2024-04-18 09:22:53 2.635e-09 noise 0 019 2024-04-18 09:35:47 4.018e-09 up 0 020 2024-04-18 09:36:20 3.728e-09 up 0 021 2024-04-18 09:43:20 6.367e-09 up 0 022 2024-04-18 10:04:07 3.628e-09 down 0 023 2024-04-18 10:09:09 3.532e-09 up 0 024 2024-04-18 10:11:43 3.975e-09 up 0 025 2024-04-18 10:16:34 3.020e-08 up 0 026 2024-04-18 10:36:10 4.288e-09 up 0 027 2024-04-18 10:38:27 5.984e-09 up 0 028 2024-04-18 10:41:29 3.666e-09 up 0 029 2024-04-18 10:43:09 5.939e-08 up 0 030 2024-04-18 10:45:13 7.320e-09 up 0 031 2024-04-18 10:53:33 3.097e-09 down 0 032 2024-04-18 10:54:36 3.417e-09 up 0 033 2024-04-18 10:57:04 5.990e-09 up 0 034 2024-04-18 10:58:01 1.629e-08 up 0 035 2024-04-18 11:00:38 4.391e-09 noise 0 036 2024-04-18 11:05:44 3.351e-09 down 0 037 2024-04-18 11:07:22 5.250e-09 up 0 038 2024-04-18 11:14:28 4.192e-09 up 0 039 2024-04-18 11:17:56 5.515e-09 up 0 040 2024-04-18 11:19:43 4.323e-09 up 0 041 2024-04-18 11:20:59 4.452e-09 down 0 042 2024-04-18 11:22:34 3.170e-09 down 0 043 2024-04-18 11:26:32 4.084e-09 down 0 044 2024-04-18 11:28:58 3.590e-09 down 0 045 2024-04-18 11:30:20 3.971e-09 down 0 046 2024-04-18 11:33:44 4.432e-09 down 0 047 2024-04-18 11:35:17 5.439e-09 down 0 048 2024-04-18 11:38:05 3.035e-09 down 0 049 2024-04-18 11:38:22 6.838e-09 down 0 050 2024-04-18 11:39:36 3.153e-09 down 0 051 2024-04-18 11:40:50 3.451e-09 noise 0 052 2024-04-18 11:41:42 5.127e-09 down 0 053 2024-04-18 11:41:54 3.116e-09 down 0 054 2024-04-18 11:42:59 3.298e-09 down 0 055 2024-04-18 11:45:18 1.867e-08 down 0 056 2024-04-18 11:49:59 4.226e-09 down 0 057 2024-04-18 11:50:27 3.585e-09 down 0 058 2024-04-18 11:52:45 4.484e-09 down 0 059 2024-04-18 11:53:42 5.936e-09 down 0 060 2024-04-18 11:55:46 2.828e-09 down 0 061 2024-04-18 11:56:59 4.002e-09 down 0 062 2024-04-18 11:57:38 3.764e-09 up 0 063 2024-04-18 11:59:12 4.722e-09 down 0 064 2024-04-18 12:00:49 3.240e-09 up 0 065 2024-04-18 12:02:52 4.509e-09 down 0 066 2024-04-18 12:03:04 5.266e-09 down 0 067 2024-04-18 12:03:52 4.031e-09 noise 0 068 2024-04-18 12:04:15 3.328e-09 down 0 069 2024-04-18 12:05:17 4.185e-09 down 0 070 2024-04-18 12:05:31 3.598e-09 down 0 071 2024-04-18 12:07:03 4.284e-09 noise 0 072 2024-04-18 12:07:44 3.139e-09 noise 0 073 2024-04-18 12:09:03 3.670e-09 down 0 074 2024-04-18 12:09:34 7.372e-09 down 0 075 2024-04-18 12:10:24 5.240e-09 up 0 076 2024-04-18 12:11:27 3.777e-09 noise 0 077 2024-04-18 12:12:24 6.317e-09 down 0 078 2024-04-18 12:13:54 3.485e-09 noise 0 079 2024-04-18 12:14:37 3.218e-09 up 0 080 2024-04-18 12:16:06 3.132e-09 down 0 081 2024-04-18 12:17:09 4.258e-09 down 0 082 2024-04-18 12:19:27 9.936e-09 down 0 083 2024-04-18 12:20:48 3.109e-09 noise 0 084 2024-04-18 12:21:48 3.802e-09 down 0 085 2024-04-18 12:22:16 3.988e-09 down 0 086 2024-04-18 12:22:43 3.541e-09 noise 0 087 2024-04-18 12:23:15 4.452e-09 noise 0 088 2024-04-18 12:24:29 3.822e-09 noise 0 089 2024-04-18 12:26:08 3.263e-09 down 0 090 2024-04-18 12:28:14 3.688e-09 noise 0 091 2024-04-18 12:30:14 3.203e-09 down 0 092 2024-04-18 12:31:22 3.647e-09 down 0 093 2024-04-18 12:31:57 1.243e-08 up 0 094 2024-04-18 12:35:36 3.687e-09 down 0 095 2024-04-18 12:38:28 3.898e-09 down 0 096 2024-04-18 12:39:18 3.868e-09 down 0 097 2024-04-18 12:40:38 1.511e-08 up 0 098 2024-04-18 12:41:12 7.855e-09 up 0 099 2024-04-18 12:42:54 3.670e-09 noise 0 100 2024-04-18 12:43:07 3.147e-09 noise 0 101 2024-04-18 12:50:14 3.279e-09 down 0 102 2024-04-18 12:51:08 3.664e-09 noise 0 103 2024-04-18 12:51:54 3.932e-09 down 0 104 2024-04-18 12:55:00 3.593e-09 noise 0 105 2024-04-18 12:56:12 4.446e-09 down 0 106 2024-04-18 12:56:46 4.285e-09 down 0 107 2024-04-18 13:00:26 4.089e-09 up 0 108 2024-04-18 13:02:32 3.971e-09 down 0 109 2024-04-18 13:03:40 3.243e-09 down 0 110 2024-04-18 13:05:54 4.216e-09 up 0 111 2024-04-18 13:06:13 3.987e-09 up 0 112 2024-04-18 13:08:08 4.249e-09 noise 0 113 2024-04-18 13:08:33 3.464e-09 down 0 114 2024-04-18 13:11:01 3.506e-09 down 0 115 2024-04-18 13:11:24 3.304e-09 down 0 116 2024-04-18 13:12:26 4.133e-09 down 0 117 2024-04-18 13:14:34 3.545e-08 up 0 118 2024-04-18 13:16:50 1.354e-08 up 0 119 2024-04-18 13:20:59 3.466e-09 down 0 120 2024-04-18 13:21:12 3.749e-09 noise 0 121 2024-04-18 13:26:16 7.881e-09 up 0 122 2024-04-18 13:33:50 3.401e-09 down 0 123 2024-04-18 13:35:04 4.169e-09 up 0 124 2024-04-18 13:35:28 4.316e-09 down 0 125 2024-04-18 13:36:21 4.268e-09 down 0 126 2024-04-18 13:38:16 5.003e-09 noise 0 127 2024-04-18 13:40:47 3.449e-09 down 0 128 2024-04-18 13:43:09 1.273e-08 up 0 129 2024-04-18 13:44:03 4.474e-09 down 0 130 2024-04-18 13:48:19 3.301e-09 noise 0 131 2024-04-18 13:49:58 6.548e-09 down 0 132 2024-04-18 13:52:06 1.554e-08 noise_large 0 133 2024-04-18 13:55:58 4.048e-09 noise 0 134 2024-04-18 13:56:28 3.355e-09 down 0 135 2024-04-18 13:58:10 1.614e-08 up 0 136 2024-04-18 13:58:56 4.362e-09 noise 0 137 2024-04-18 14:02:38 4.654e-09 down 0 138 2024-04-18 14:04:10 3.505e-09 down 0 139 2024-04-18 14:04:38 5.044e-09 up 0 140 2024-04-18 14:05:47 3.424e-09 down 0 141 2024-04-18 14:07:10 4.042e-09 up 0 142 2024-04-18 14:07:35 3.824e-09 up 0 143 2024-04-18 14:10:11 1.581e-07 up 0 144 2024-04-18 14:20:07 3.712e-09 up 0 145 2024-04-18 14:21:33 3.504e-09 down 0 146 2024-04-18 14:23:16 4.812e-09 down 0 147 2024-04-18 14:24:07 3.545e-09 down 0 148 2024-04-18 14:30:07 3.671e-09 down 0 149 2024-04-18 14:35:56 4.361e-09 down 0 150 2024-04-18 14:38:32 3.662e-09 up 0 151 2024-04-18 14:41:15 7.016e-09 down 0 152 2024-04-18 14:43:39 1.005e-08 up 0 153 2024-04-18 14:44:29 6.725e-09 up 0 154 2024-04-18 14:44:47 1.031e-08 up 0 155 2024-04-18 14:47:25 4.237e-09 noise 0 156 2024-04-18 14:48:17 5.674e-09 up 0 157 2024-04-18 14:50:08 3.815e-09 down 0 158 2024-04-18 14:54:09 3.119e-09 down 0 159 2024-04-18 14:54:56 4.677e-09 down 0 160 2024-04-18 14:55:24 3.794e-09 down 0 161 2024-04-18 14:58:07 4.553e-09 noise 0 162 2024-04-18 15:00:35 3.340e-09 down 0 163 2024-04-18 15:02:47 1.164e-08 up 0 164 2024-04-18 15:03:25 5.748e-09 up 0 165 2024-04-18 15:03:51 3.560e-09 up 0 166 2024-04-18 15:04:08 8.524e-09 up 0 167 2024-04-18 15:05:33 3.638e-09 noise 0 168 2024-04-18 15:07:15 4.771e-09 down 0 169 2024-04-18 15:20:59 1.609e-08 up 0 170 2024-04-18 15:22:43 4.009e-09 noise 0 171 2024-04-18 15:41:28 3.626e-09 noise 0 172 2024-04-18 15:41:56 3.777e-08 up 0 173 2024-04-18 15:43:47 5.024e-09 up 0 174 2024-04-18 15:45:31 3.354e-09 down 0 175 2024-04-18 15:48:42 3.508e-09 up 0 176 2024-04-18 15:49:58 5.558e-09 up 0 177 2024-04-18 15:51:04 4.978e-09 up 0 178 2024-04-18 15:51:20 1.349e-08 up 0 179 2024-04-18 15:54:20 3.481e-09 down 0 180 2024-04-18 15:59:25 3.910e-09 down 0 181 2024-04-18 16:04:08 3.084e-09 down 0 182 2024-04-18 16:16:29 3.346e-09 up 0 183 2024-04-18 16:18:20 2.753e-07 up 0 184 2024-04-18 16:27:19 5.229e-08 up 0 185 2024-04-18 16:34:44 4.325e-09 down 0 186 2024-04-18 16:42:37 3.133e-09 down 0 187 2024-04-18 16:50:10 3.236e-09 down 0 188 2024-04-18 17:03:44 2.927e-09 up 0 189 2024-04-18 17:06:57 4.068e-09 up 0 190 2024-04-18 17:08:02 3.210e-09 noise 0 191 2024-04-18 17:09:57 5.993e-09 down 0 192 2024-04-18 17:10:12 3.738e-09 noise 0 193 2024-04-18 17:12:05 2.499e-07 up 0 194 2024-04-18 17:18:27 3.530e-09 noise 0 195 2024-04-18 17:20:02 9.085e-09 up 0 196 2024-04-18 17:25:08 3.499e-09 up 0 197 2024-04-18 17:26:50 5.169e-08 down 0 198 2024-04-18 17:29:25 4.174e-09 up 0 199 2024-04-18 17:39:13 3.428e-09 up 0 200 2024-04-18 17:40:33 3.267e-09 up 0 201 2024-04-18 17:58:17 3.524e-09 up 0 202 2024-04-18 18:00:07 3.320e-09 up 0 203 2024-04-18 18:02:21 6.670e-09 up 0 204 2024-04-18 18:07:31 6.169e-09 up 0 205 2024-04-18 18:13:47 7.089e-09 up 0 206 2024-04-18 18:16:08 3.456e-09 up 0 207 2024-04-18 18:16:56 6.613e-09 up 0 208 2024-04-18 18:19:57 2.831e-09 down 0 209 2024-04-18 18:21:42 5.033e-09 up 0 210 2024-04-18 18:26:57 4.093e-08 up 0 211 2024-04-18 18:30:04 1.544e-08 up 0 212 2024-04-18 18:31:03 8.454e-09 up 0 213 2024-04-18 18:32:05 4.993e-09 up 0 214 2024-04-18 18:33:44 3.330e-08 up 0 215 2024-04-18 19:05:31 6.792e-09 up 0 216 2024-04-18 19:08:31 3.473e-09 up 0 217 2024-04-18 19:27:35 9.924e-09 up 0 218 2024-04-18 19:45:22 5.327e-09 up 0 219 2024-04-18 19:45:50 7.966e-08 up 0 220 2024-04-18 19:49:46 5.428e-09 up 0 221 2024-04-18 19:51:09 3.752e-09 up 0 222 2024-04-18 20:11:57 3.718e-09 up 0 223 2024-04-18 20:22:46 3.386e-09 up 0 224 2024-04-18 20:24:29 6.447e-09 up 0 225 2024-04-18 20:26:13 1.409e-08 up 0 226 2024-04-18 20:27:49 5.073e-09 up 0 227 2024-04-18 20:30:20 4.037e-09 noise 0 228 2024-04-18 20:31:57 6.107e-09 up 0 229 2024-04-18 20:33:14 3.004e-09 up 0 230 2024-04-18 20:35:22 4.381e-09 up 0 231 2024-04-18 20:35:57 5.001e-09 up 0 232 2024-04-18 20:40:20 1.011e-08 up 0 233 2024-04-18 20:46:08 3.307e-09 up 0 234 2024-04-18 20:46:30 4.057e-09 up 0 235 2024-04-18 20:51:08 3.015e-09 up 0 236 2024-04-18 20:56:23 3.908e-09 up 0 237 2024-04-18 20:59:31 2.796e-09 up 0 238 2024-04-18 21:42:12 1.771e-08 up 0 239 2024-04-18 21:43:51 3.160e-09 up 0 240 2024-04-18 21:54:31 3.041e-08 up 0 241 2024-04-18 21:57:30 3.835e-08 up 0 242 2024-04-18 22:00:02 1.055e-08 up 0 243 2024-04-18 22:05:08 5.523e-09 up 0 244 2024-04-18 22:07:59 4.487e-08 up 0 245 2024-04-18 22:09:52 5.187e-09 up 0 246 2024-04-18 22:20:30 2.732e-09 up 0 247 2024-04-18 22:22:24 3.134e-08 up 0 248 2024-04-18 22:29:58 5.199e-09 up 0 249 2024-04-18 22:32:17 3.090e-09 up 0 250 2024-04-18 22:32:48 9.210e-09 up 0 251 2024-04-18 22:34:41 6.379e-08 up 0 252 2024-04-18 23:07:40 3.973e-09 up 0 253 2024-04-18 23:10:38 2.324e-08 up 0 254 2024-04-18 23:22:37 5.047e-09 up 0 255 2024-04-18 23:30:43 4.201e-09 up 0 256 2024-04-18 23:31:38 4.999e-09 up 0 257 2024-04-18 23:32:43 2.727e-08 up 0 258 2024-04-18 23:38:59 2.871e-09 noise 0 259 2024-04-18 23:40:20 2.681e-08 up 0 260 2024-04-18 23:41:30 3.730e-09 up 0 261 2024-04-18 23:45:33 5.705e-09 up 0 262 2024-04-18 23:46:47 3.898e-09 up 0 263 2024-04-18 23:47:18 3.995e-09 up 0 264 2024-04-18 23:59:05 3.787e-09 up 0 265 2024-04-19 00:13:36 4.688e-09 up 0 266 2024-04-19 00:22:48 3.255e-09 up 0 267 2024-04-19 00:32:24 1.285e-08 down 0 268 2024-04-19 00:41:32 2.871e-09 up 0 269 2024-04-19 00:50:30 9.996e-09 up 0 270 2024-04-19 00:54:12 6.487e-09 down 0 271 2024-04-19 00:55:04 2.288e-08 up 0 272 2024-04-19 00:56:13 8.284e-09 up 0 273 2024-04-19 00:56:41 1.141e-08 noise_large 0 274 2024-04-19 00:57:40 9.900e-09 up 0 275 2024-04-19 01:04:32 3.252e-09 up 0 276 2024-04-19 01:12:55 2.698e-08 up 0 277 2024-04-19 01:16:20 3.041e-09 up 0 278 2024-04-19 01:18:45 2.128e-08 down 0 279 2024-04-19 01:23:41 3.554e-09 down 0 280 2024-04-19 01:26:48 3.006e-09 up 0 281 2024-04-19 01:28:43 1.789e-08 up 0 282 2024-04-19 01:35:20 3.147e-09 up 0 283 2024-04-19 01:35:53 3.555e-09 up 0 284 2024-04-19 01:36:55 2.367e-09 up 0 285 2024-04-19 01:43:39 6.769e-09 up 0 286 2024-04-19 01:46:21 6.260e-09 up 0 287 2024-04-19 01:49:28 6.348e-09 down 0 288 2024-04-19 01:59:51 5.839e-09 down 0 289 2024-04-19 02:01:39 3.522e-09 up 0 290 2024-04-19 02:10:06 4.255e-09 up 0 291 2024-04-19 02:20:03 3.670e-09 up 0 292 2024-04-19 02:21:34 6.128e-09 up 0 293 2024-04-19 02:21:58 5.246e-09 up 0 294 2024-04-19 02:39:58 5.030e-09 up 0 295 2024-04-19 02:41:58 3.128e-09 up 0 296 2024-04-19 02:46:10 1.236e-07 up 0 297 2024-04-19 02:50:31 2.056e-08 up 0 298 2024-04-19 02:53:36 8.833e-09 up 0 299 2024-04-19 02:54:17 4.947e-09 up 0 300 2024-04-19 02:54:35 7.657e-09 up 0 301 2024-04-19 02:58:15 9.634e-09 up 0 302 2024-04-19 03:00:49 3.622e-09 up 0 303 2024-04-19 03:02:26 3.519e-09 up 0 304 2024-04-19 03:03:11 3.350e-09 up 0 305 2024-04-19 03:07:11 2.750e-09 up 0 306 2024-04-19 03:15:47 5.104e-08 up 0 307 2024-04-19 03:29:01 2.952e-09 up 0 308 2024-04-19 03:29:29 6.512e-08 up 0 309 2024-04-19 03:35:12 3.778e-09 up 0 310 2024-04-19 03:38:07 1.010e-08 up 0 311 2024-04-19 03:44:38 9.327e-09 up 0 312 2024-04-19 03:48:44 3.118e-09 down 0 313 2024-04-19 03:50:04 3.131e-09 up 0 314 2024-04-19 03:52:34 2.982e-09 up 0 315 2024-04-19 03:55:10 3.271e-09 up 0 316 2024-04-19 03:56:50 4.999e-09 up 0 317 2024-04-19 03:59:40 6.018e-09 up 0 318 2024-04-19 04:07:03 1.040e-08 up 0 319 2024-04-19 04:08:45 8.226e-08 up 0 320 2024-04-19 04:15:34 3.963e-09 up 0 321 2024-04-19 04:21:03 3.511e-09 up 0 322 2024-04-19 04:34:20 8.895e-09 up 0 323 2024-04-19 04:37:00 2.925e-09 up 0 324 2024-04-19 05:10:58 5.908e-09 up 0 325 2024-04-19 05:15:38 9.708e-09 up 0 326 2024-04-19 05:17:00 3.652e-08 up 0 327 2024-04-19 05:18:55 2.623e-09 up 0 328 2024-04-19 05:19:36 3.458e-09 up 0 329 2024-04-19 05:30:12 3.831e-09 up 0 330 2024-04-19 05:33:39 2.894e-09 up 0 331 2024-04-19 05:41:56 3.144e-09 up 0 332 2024-04-19 05:43:36 8.700e-08 up 0 333 2024-04-19 06:14:46 8.386e-09 up 0 334 2024-04-19 06:17:44 9.280e-09 up 0 335 2024-04-19 06:19:12 1.398e-07 up 0 336 2024-04-19 06:24:30 9.594e-09 up 0 337 2024-04-19 06:32:15 8.227e-09 up 0 338 2024-04-19 06:34:40 6.270e-08 up 0 339 2024-04-19 07:06:56 3.089e-09 down 0 340 2024-04-19 07:10:11 2.687e-09 up 0 341 2024-04-19 07:10:58 4.813e-09 up 0 342 2024-04-19 07:12:21 5.474e-09 up 0 343 2024-04-19 07:15:44 7.265e-09 up 0 344 2024-04-19 07:17:52 3.878e-09 up 0 345 2024-04-19 07:34:25 2.006e-08 up 0 346 2024-04-19 07:45:43 5.475e-09 up 0 347 2024-04-19 07:52:33 5.226e-09 up 0 348 2024-04-19 07:56:55 3.324e-09 up 0
