| 日期 (UTC) | 20240427 |
|---|---|
| 事件總數 | 320 |
| ↑ up (紅) | 268 |
| ↓ down (橘) | 31 |
| 共模噪音 (綠) | 19 |
| noise_large (洋紅) | 2 |
| CWA 地震 (紫★) | 0 |
| RMS max | 0.000 |
| RMS median | 0.000 |
| RMS mean | 0.000 |

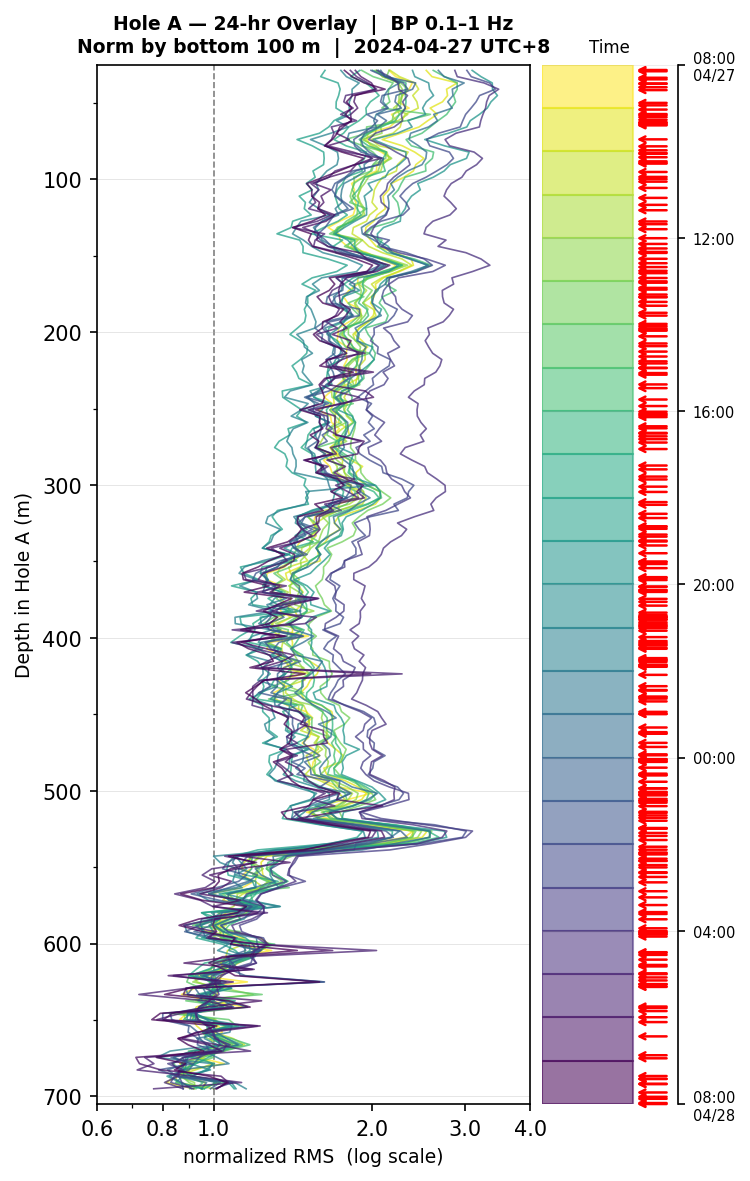

互動版（24 條小時線）：點圖例中的小時色塊 → 該小時線變明顯、其餘變半透明；再點一次還原。

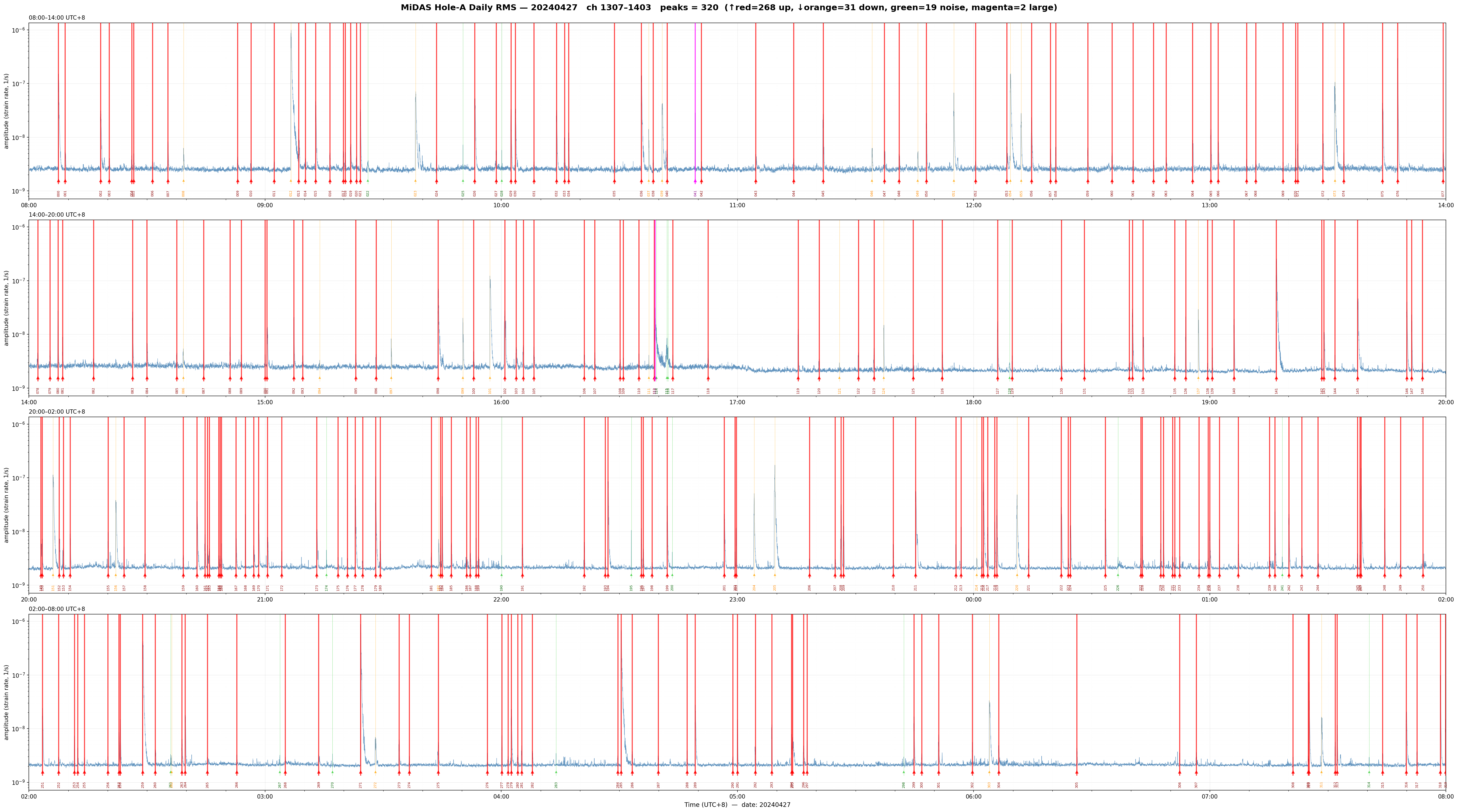

點擊上圖的紅色 up 事件以顯示 waterfall plot。

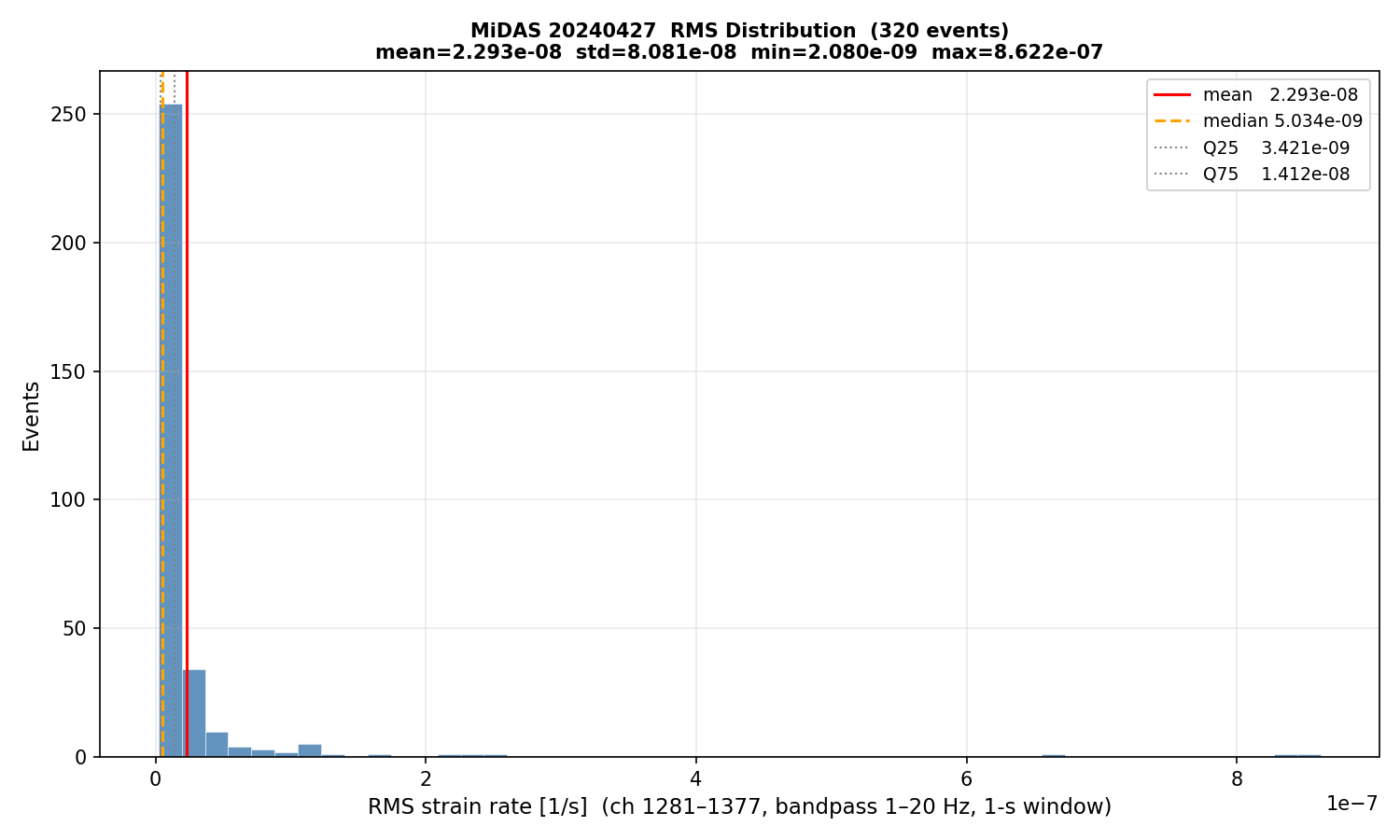

MiDAS Daily RMS peaks — 20240427 Total: 320 events [RMS_below300m 欄位說明] 來源 : 2024 backfill nc（100Hz decimated，Hole A trace 1307–1403，跳過頂部 73 ch，對應深度 ~300–700 m） 前處理: per-file bad-channel masking(median+10×MAD) → bandpass 1–20 Hz（sosfiltfilt，逐檔獨立，非跨檔 causal filter state） 公式 : sqrt( sum(x[ch,t]^2) / (97 ch × 100 samples) ) / DAS_SENSITIVITY 意義 : STA/LTA 偵測峰值那一秒，97 個 channel × 100 個取樣點的 RMS 振幅 單位 : strain rate (1/s)，已轉換為物理應變率（DAS_SENSITIVITY=7.0621e+08） 參考值: 典型背景 ~7.08e-10–2.83e-09，大地震 > 1.13e-08 RMS stats mean=2.293e-08 std=8.081e-08 min=2.080e-09 Q25=3.421e-09 median=5.034e-09 Q75=1.412e-08 max=8.622e-07 ID timestamp_tw (UTC+8) RMS_below300m fk_label CWA ------------------------------------------------------------------ 000 2024-04-27 08:07:32 1.062e-07 up 0 001 2024-04-27 08:09:14 4.944e-09 up 0 002 2024-04-27 08:18:16 2.577e-08 up 0 003 2024-04-27 08:20:26 3.960e-09 up 0 004 2024-04-27 08:26:08 3.883e-09 up 0 005 2024-04-27 08:26:39 4.963e-09 up 0 006 2024-04-27 08:31:25 3.516e-09 up 0 007 2024-04-27 08:35:21 8.271e-09 up 0 008 2024-04-27 08:39:18 4.882e-09 down 0 009 2024-04-27 08:53:04 4.328e-09 up 0 010 2024-04-27 08:56:27 3.110e-09 up 0 011 2024-04-27 09:02:20 3.495e-09 up 0 012 2024-04-27 09:06:33 8.622e-07 down 0 013 2024-04-27 09:08:33 9.367e-09 up 0 014 2024-04-27 09:10:14 3.834e-09 up 0 015 2024-04-27 09:12:52 3.293e-08 up 0 016 2024-04-27 09:16:30 5.124e-09 up 0 017 2024-04-27 09:19:53 5.195e-09 up 0 018 2024-04-27 09:20:24 5.255e-09 up 0 019 2024-04-27 09:21:47 7.001e-09 up 0 020 2024-04-27 09:23:14 4.402e-09 up 0 021 2024-04-27 09:24:12 2.114e-08 up 0 022 2024-04-27 09:26:06 3.550e-09 noise 0 023 2024-04-27 09:38:12 4.794e-08 down 0 024 2024-04-27 09:43:35 3.761e-09 up 0 025 2024-04-27 09:50:17 7.233e-09 noise 0 026 2024-04-27 09:53:15 4.815e-08 up 0 027 2024-04-27 09:58:45 5.345e-09 up 0 028 2024-04-27 10:00:08 5.751e-09 noise 0 029 2024-04-27 10:02:29 3.302e-08 up 0 030 2024-04-27 10:03:36 2.896e-08 up 0 031 2024-04-27 10:08:21 3.271e-09 up 0 032 2024-04-27 10:14:04 3.183e-08 up 0 033 2024-04-27 10:16:06 9.726e-09 up 0 034 2024-04-27 10:17:09 9.886e-09 up 0 035 2024-04-27 10:28:46 3.757e-09 up 0 036 2024-04-27 10:35:37 1.154e-07 up 0 037 2024-04-27 10:37:28 9.313e-09 down 0 038 2024-04-27 10:38:38 3.504e-09 up 0 039 2024-04-27 10:40:51 4.178e-08 down 0 040 2024-04-27 10:42:10 4.873e-09 up 0 041 2024-04-27 10:49:17 2.847e-08 noise_large 0 042 2024-04-27 10:50:52 3.351e-09 up 0 043 2024-04-27 11:04:40 4.831e-09 up 0 044 2024-04-27 11:14:19 4.023e-09 up 0 045 2024-04-27 11:21:48 2.658e-08 up 0 046 2024-04-27 11:34:10 6.192e-09 down 0 047 2024-04-27 11:37:22 4.636e-09 up 0 048 2024-04-27 11:41:04 4.492e-09 up 0 049 2024-04-27 11:45:47 5.211e-09 down 0 050 2024-04-27 11:48:02 2.277e-08 up 0 051 2024-04-27 11:54:59 6.564e-08 down 0 052 2024-04-27 12:00:31 3.257e-09 up 0 053 2024-04-27 12:08:27 5.521e-09 up 0 054 2024-04-27 12:09:20 1.283e-07 down 0 055 2024-04-27 12:12:05 2.796e-08 down 0 056 2024-04-27 12:14:44 2.053e-08 up 0 057 2024-04-27 12:19:32 6.097e-09 up 0 058 2024-04-27 12:20:54 6.315e-09 up 0 059 2024-04-27 12:29:02 5.497e-09 up 0 060 2024-04-27 12:35:10 4.526e-09 up 0 061 2024-04-27 12:40:31 3.731e-09 up 0 062 2024-04-27 12:45:43 3.156e-09 up 0 063 2024-04-27 12:48:56 3.434e-09 up 0 064 2024-04-27 12:55:39 7.006e-09 up 0 065 2024-04-27 13:00:18 1.403e-08 up 0 066 2024-04-27 13:02:09 8.345e-09 up 0 067 2024-04-27 13:09:21 3.688e-09 up 0 068 2024-04-27 13:11:41 3.066e-09 up 0 069 2024-04-27 13:18:37 3.400e-09 up 0 070 2024-04-27 13:21:48 4.040e-09 up 0 071 2024-04-27 13:22:22 7.367e-09 up 0 072 2024-04-27 13:28:45 7.477e-09 up 0 073 2024-04-27 13:31:48 1.064e-07 down 0 074 2024-04-27 13:34:03 4.534e-09 up 0 075 2024-04-27 13:43:52 2.746e-08 up 0 076 2024-04-27 13:47:45 2.137e-07 up 0 077 2024-04-27 13:59:16 4.785e-09 up 0 078 2024-04-27 14:02:18 4.042e-09 up 0 079 2024-04-27 14:05:23 4.794e-09 up 0 080 2024-04-27 14:07:24 1.956e-08 up 0 081 2024-04-27 14:08:36 8.931e-09 up 0 082 2024-04-27 14:16:26 3.368e-09 up 0 083 2024-04-27 14:26:22 2.629e-08 up 0 084 2024-04-27 14:30:01 6.651e-09 up 0 085 2024-04-27 14:37:36 4.504e-09 up 0 086 2024-04-27 14:39:15 5.410e-09 down 0 087 2024-04-27 14:44:25 3.703e-09 up 0 088 2024-04-27 14:51:07 8.443e-09 up 0 089 2024-04-27 14:53:58 3.589e-09 up 0 090 2024-04-27 15:00:02 3.528e-09 up 0 091 2024-04-27 15:00:30 9.881e-09 up 0 092 2024-04-27 15:07:20 2.057e-08 up 0 093 2024-04-27 15:09:35 3.877e-09 up 0 094 2024-04-27 15:13:53 3.032e-09 down 0 095 2024-04-27 15:23:05 3.768e-09 up 0 096 2024-04-27 15:28:13 4.295e-09 up 0 097 2024-04-27 15:32:03 5.692e-09 down 0 098 2024-04-27 15:43:59 5.560e-08 up 0 099 2024-04-27 15:50:15 1.649e-08 down 0 100 2024-04-27 15:53:01 4.395e-09 up 0 101 2024-04-27 15:57:08 1.166e-07 down 0 102 2024-04-27 16:00:55 2.407e-08 up 0 103 2024-04-27 16:03:49 5.253e-09 up 0 104 2024-04-27 16:05:37 6.281e-09 up 0 105 2024-04-27 16:08:18 4.979e-09 up 0 106 2024-04-27 16:21:05 3.509e-09 up 0 107 2024-04-27 16:23:48 4.525e-09 up 0 108 2024-04-27 16:30:13 3.425e-09 up 0 109 2024-04-27 16:31:01 2.964e-09 up 0 110 2024-04-27 16:35:00 3.142e-09 up 0 111 2024-04-27 16:37:30 3.136e-09 down 0 112 2024-04-27 16:38:53 1.240e-08 up 0 113 2024-04-27 16:39:07 3.145e-08 noise_large 0 114 2024-04-27 16:39:26 9.452e-09 noise 0 115 2024-04-27 16:42:04 8.421e-09 noise 0 116 2024-04-27 16:42:21 5.453e-09 noise 0 117 2024-04-27 16:43:35 3.646e-09 up 0 118 2024-04-27 16:52:35 4.990e-09 up 0 119 2024-04-27 17:15:26 1.250e-08 up 0 120 2024-04-27 17:20:46 3.398e-09 up 0 121 2024-04-27 17:25:54 2.888e-09 down 0 122 2024-04-27 17:30:45 4.581e-09 up 0 123 2024-04-27 17:34:43 4.698e-09 up 0 124 2024-04-27 17:37:10 1.012e-08 down 0 125 2024-04-27 17:44:41 3.158e-09 up 0 126 2024-04-27 17:52:01 4.707e-09 up 0 127 2024-04-27 18:06:06 1.740e-08 up 0 128 2024-04-27 18:09:08 2.984e-09 noise 0 129 2024-04-27 18:09:48 4.002e-09 up 0 130 2024-04-27 18:22:19 1.464e-08 up 0 131 2024-04-27 18:28:09 2.821e-09 up 0 132 2024-04-27 18:39:34 2.931e-09 up 0 133 2024-04-27 18:40:22 2.974e-08 up 0 134 2024-04-27 18:43:04 8.614e-09 up 0 135 2024-04-27 18:51:06 3.348e-09 up 0 136 2024-04-27 18:53:53 1.442e-08 up 0 137 2024-04-27 18:57:05 2.820e-08 down 0 138 2024-04-27 18:59:28 2.923e-09 up 0 139 2024-04-27 19:00:38 4.772e-09 up 0 140 2024-04-27 19:06:11 1.514e-08 up 0 141 2024-04-27 19:16:55 2.298e-07 up 0 142 2024-04-27 19:28:28 2.728e-09 up 0 143 2024-04-27 19:29:00 1.097e-08 up 0 144 2024-04-27 19:31:48 2.600e-09 up 0 145 2024-04-27 19:37:34 4.228e-08 up 0 146 2024-04-27 19:50:04 4.018e-08 up 0 147 2024-04-27 19:51:17 1.684e-08 up 0 148 2024-04-27 19:54:02 2.866e-09 up 0 149 2024-04-27 20:03:05 5.794e-09 up 0 150 2024-04-27 20:03:24 7.288e-09 up 0 151 2024-04-27 20:06:08 1.136e-07 down 0 152 2024-04-27 20:07:44 6.787e-09 up 0 153 2024-04-27 20:08:48 4.197e-09 up 0 154 2024-04-27 20:10:29 9.037e-09 up 0 155 2024-04-27 20:20:09 6.857e-09 up 0 156 2024-04-27 20:22:04 3.815e-08 down 0 157 2024-04-27 20:24:13 2.721e-09 up 0 158 2024-04-27 20:29:30 3.546e-09 up 0 159 2024-04-27 20:39:15 3.605e-09 up 0 160 2024-04-27 20:42:44 2.115e-08 up 0 161 2024-04-27 20:44:45 7.712e-09 up 0 162 2024-04-27 20:45:24 5.498e-09 up 0 163 2024-04-27 20:45:52 4.789e-09 up 0 164 2024-04-27 20:48:16 2.632e-09 up 0 165 2024-04-27 20:48:34 3.523e-09 up 0 166 2024-04-27 20:48:58 3.906e-09 up 0 167 2024-04-27 20:52:37 6.522e-09 up 0 168 2024-04-27 20:55:00 2.087e-08 up 0 169 2024-04-27 20:57:08 3.865e-09 up 0 170 2024-04-27 20:58:21 1.881e-08 up 0 171 2024-04-27 21:00:39 5.968e-09 up 0 172 2024-04-27 21:04:14 4.259e-09 up 0 173 2024-04-27 21:13:08 9.844e-09 up 0 174 2024-04-27 21:15:36 2.566e-09 noise 0 175 2024-04-27 21:18:34 2.522e-09 up 0 176 2024-04-27 21:20:57 2.445e-09 up 0 177 2024-04-27 21:22:56 7.330e-08 up 0 178 2024-04-27 21:24:48 2.874e-09 up 0 179 2024-04-27 21:28:07 1.019e-07 up 0 180 2024-04-27 21:29:17 4.719e-09 up 0 181 2024-04-27 21:42:14 4.015e-09 up 0 182 2024-04-27 21:44:05 7.174e-09 down 0 183 2024-04-27 21:44:34 4.234e-09 up 0 184 2024-04-27 21:44:59 4.499e-08 up 0 185 2024-04-27 21:47:18 5.492e-09 up 0 186 2024-04-27 21:51:15 2.768e-09 up 0 187 2024-04-27 21:52:07 3.370e-09 up 0 188 2024-04-27 21:53:38 4.619e-09 up 0 189 2024-04-27 21:54:12 3.117e-09 up 0 190 2024-04-27 22:00:05 3.614e-09 noise 0 191 2024-04-27 22:05:24 5.294e-09 up 0 192 2024-04-27 22:21:06 6.314e-09 up 0 193 2024-04-27 22:26:25 3.154e-09 up 0 194 2024-04-27 22:27:08 7.593e-08 up 0 195 2024-04-27 22:33:02 1.053e-08 noise 0 196 2024-04-27 22:35:35 1.082e-08 up 0 197 2024-04-27 22:36:06 4.726e-09 up 0 198 2024-04-27 22:38:18 2.656e-09 up 0 199 2024-04-27 22:42:11 2.267e-08 up 0 200 2024-04-27 22:43:27 2.080e-09 noise 0 201 2024-04-27 22:56:41 1.827e-08 up 0 202 2024-04-27 22:59:25 3.930e-09 up 0 203 2024-04-27 22:59:43 8.862e-09 up 0 204 2024-04-27 23:04:16 5.091e-08 down 0 205 2024-04-27 23:09:31 1.729e-07 down 0 206 2024-04-27 23:18:20 3.097e-09 up 0 207 2024-04-27 23:24:48 3.035e-09 up 0 208 2024-04-27 23:26:18 2.987e-08 up 0 209 2024-04-27 23:26:58 1.261e-08 up 0 210 2024-04-27 23:39:37 4.200e-09 up 0 211 2024-04-27 23:45:16 5.581e-08 up 0 212 2024-04-27 23:55:31 4.601e-09 up 0 213 2024-04-27 23:56:49 1.208e-08 up 0 214 2024-04-28 00:00:47 3.213e-09 down 0 215 2024-04-28 00:02:07 3.315e-09 up 0 216 2024-04-28 00:02:32 8.180e-08 up 0 217 2024-04-28 00:03:36 1.203e-08 up 0 218 2024-04-28 00:05:24 1.522e-08 up 0 219 2024-04-28 00:05:57 2.299e-08 up 0 220 2024-04-28 00:11:03 4.841e-08 down 0 221 2024-04-28 00:13:58 4.708e-09 up 0 222 2024-04-28 00:22:17 2.842e-08 up 0 223 2024-04-28 00:24:04 2.914e-09 up 0 224 2024-04-28 00:24:34 1.169e-08 up 0 225 2024-04-28 00:33:29 2.301e-08 up 0 226 2024-04-28 00:36:40 3.313e-09 noise 0 227 2024-04-28 00:42:28 2.513e-09 up 0 228 2024-04-28 00:42:51 7.722e-09 up 0 229 2024-04-28 00:47:33 6.013e-09 up 0 230 2024-04-28 00:48:13 2.447e-08 up 0 231 2024-04-28 00:50:33 3.370e-09 up 0 232 2024-04-28 00:51:06 3.324e-09 up 0 233 2024-04-28 00:52:21 2.798e-09 up 0 234 2024-04-28 00:57:16 2.866e-09 up 0 235 2024-04-28 00:59:37 2.886e-09 up 0 236 2024-04-28 00:59:59 1.214e-08 up 0 237 2024-04-28 01:02:27 7.126e-09 up 0 238 2024-04-28 01:07:14 5.772e-09 up 0 239 2024-04-28 01:15:12 2.953e-09 up 0 240 2024-04-28 01:16:34 2.335e-08 up 0 241 2024-04-28 01:18:25 2.249e-09 noise 0 242 2024-04-28 01:20:07 2.089e-08 up 0 243 2024-04-28 01:23:23 4.322e-09 up 0 244 2024-04-28 01:27:29 3.845e-09 up 0 245 2024-04-28 01:37:33 2.871e-09 up 0 246 2024-04-28 01:38:09 3.477e-09 up 0 247 2024-04-28 01:38:26 9.439e-08 up 0 248 2024-04-28 01:44:25 2.683e-08 up 0 249 2024-04-28 01:48:28 2.859e-09 up 0 250 2024-04-28 01:54:11 2.999e-09 up 0 251 2024-04-28 02:03:30 2.297e-08 up 0 252 2024-04-28 02:07:35 2.592e-09 up 0 253 2024-04-28 02:11:35 5.531e-09 up 0 254 2024-04-28 02:12:26 4.365e-09 up 0 255 2024-04-28 02:14:07 2.874e-09 up 0 256 2024-04-28 02:20:06 2.980e-09 up 0 257 2024-04-28 02:22:55 8.412e-09 up 0 258 2024-04-28 02:23:13 1.240e-08 up 0 259 2024-04-28 02:28:56 2.451e-07 up 0 260 2024-04-28 02:32:07 3.411e-09 up 0 261 2024-04-28 02:36:00 2.412e-09 noise 0 262 2024-04-28 02:36:16 2.629e-09 down 0 263 2024-04-28 02:38:53 6.257e-09 up 0 264 2024-04-28 02:39:43 1.774e-08 up 0 265 2024-04-28 02:45:21 2.916e-09 up 0 266 2024-04-28 02:52:50 3.250e-09 up 0 267 2024-04-28 03:03:45 3.208e-09 noise 0 268 2024-04-28 03:05:09 2.960e-09 up 0 269 2024-04-28 03:13:39 3.264e-09 up 0 270 2024-04-28 03:17:08 3.390e-09 noise 0 271 2024-04-28 03:24:17 8.411e-07 up 0 272 2024-04-28 03:28:03 6.296e-09 down 0 273 2024-04-28 03:34:05 6.037e-09 up 0 274 2024-04-28 03:36:40 2.523e-09 up 0 275 2024-04-28 03:44:01 5.580e-09 up 0 276 2024-04-28 03:56:29 2.753e-09 up 0 277 2024-04-28 04:00:10 5.079e-09 up 0 278 2024-04-28 04:01:45 2.784e-09 up 0 279 2024-04-28 04:02:35 2.198e-08 up 0 280 2024-04-28 04:04:13 2.975e-09 up 0 281 2024-04-28 04:05:13 4.102e-09 up 0 282 2024-04-28 04:07:55 3.117e-09 up 0 283 2024-04-28 04:13:57 2.379e-09 noise 0 284 2024-04-28 04:29:37 2.927e-09 up 0 285 2024-04-28 04:30:28 6.577e-07 up 0 286 2024-04-28 04:33:18 3.464e-09 up 0 287 2024-04-28 04:39:55 2.672e-09 up 0 288 2024-04-28 04:47:14 3.900e-09 up 0 289 2024-04-28 04:49:17 2.752e-08 up 0 290 2024-04-28 04:58:51 2.999e-09 up 0 291 2024-04-28 05:00:02 1.470e-08 up 0 292 2024-04-28 05:04:34 4.498e-09 up 0 293 2024-04-28 05:08:44 1.181e-08 up 0 294 2024-04-28 05:13:47 6.234e-09 up 0 295 2024-04-28 05:14:01 6.860e-09 up 0 296 2024-04-28 05:16:49 4.801e-09 up 0 297 2024-04-28 05:17:42 4.121e-09 up 0 298 2024-04-28 05:42:15 2.977e-09 noise 0 299 2024-04-28 05:44:52 1.664e-08 up 0 300 2024-04-28 05:46:49 3.208e-09 up 0 301 2024-04-28 05:51:08 6.905e-09 up 0 302 2024-04-28 05:59:42 5.218e-09 up 0 303 2024-04-28 06:03:59 2.824e-08 down 0 304 2024-04-28 06:06:25 4.287e-09 up 0 305 2024-04-28 06:26:13 4.234e-09 up 0 306 2024-04-28 06:52:21 3.037e-09 up 0 307 2024-04-28 06:56:35 3.488e-09 up 0 308 2024-04-28 07:21:09 2.811e-09 up 0 309 2024-04-28 07:25:00 2.728e-09 up 0 310 2024-04-28 07:25:13 5.005e-08 up 0 311 2024-04-28 07:28:22 1.635e-08 down 0 312 2024-04-28 07:31:52 4.262e-09 up 0 313 2024-04-28 07:32:22 1.163e-08 up 0 314 2024-04-28 07:40:29 2.932e-09 noise 0 315 2024-04-28 07:43:55 3.164e-09 up 0 316 2024-04-28 07:49:56 1.897e-08 up 0 317 2024-04-28 07:52:39 3.676e-09 up 0 318 2024-04-28 07:58:34 6.761e-08 up 0 319 2024-04-28 07:59:55 1.271e-08 up 0
