| 日期 (UTC) | 20240428 |
|---|---|
| 事件總數 | 296 |
| ↑ up (紅) | 224 |
| ↓ down (橘) | 48 |
| 共模噪音 (綠) | 23 |
| noise_large (洋紅) | 1 |
| CWA 地震 (紫★) | 0 |
| RMS max | 0.000 |
| RMS median | 0.000 |
| RMS mean | 0.000 |
互動版（24 條小時線）：點圖例中的小時色塊 → 該小時線變明顯、其餘變半透明；再點一次還原。

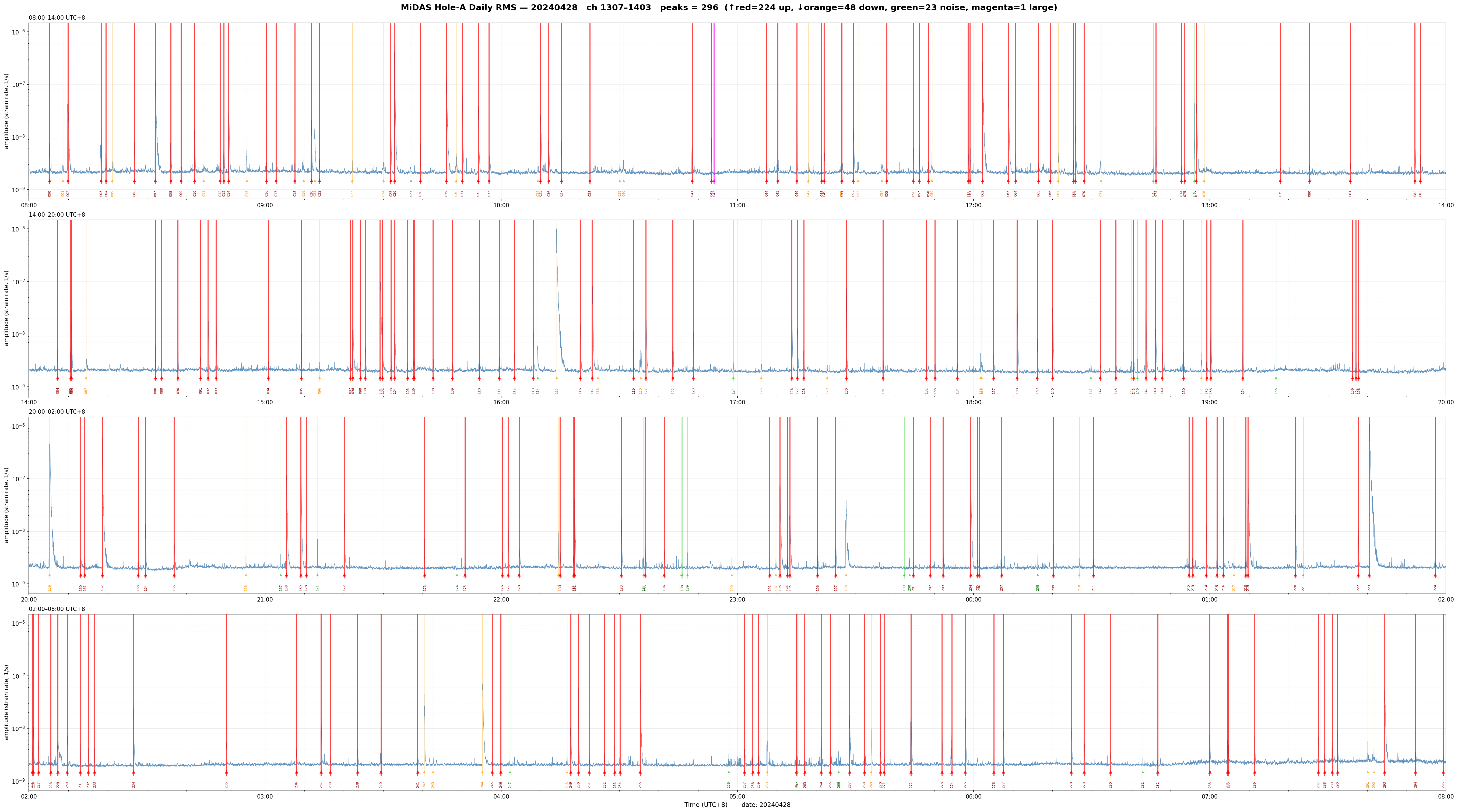

點擊上圖的紅色 up 事件以顯示 waterfall plot。

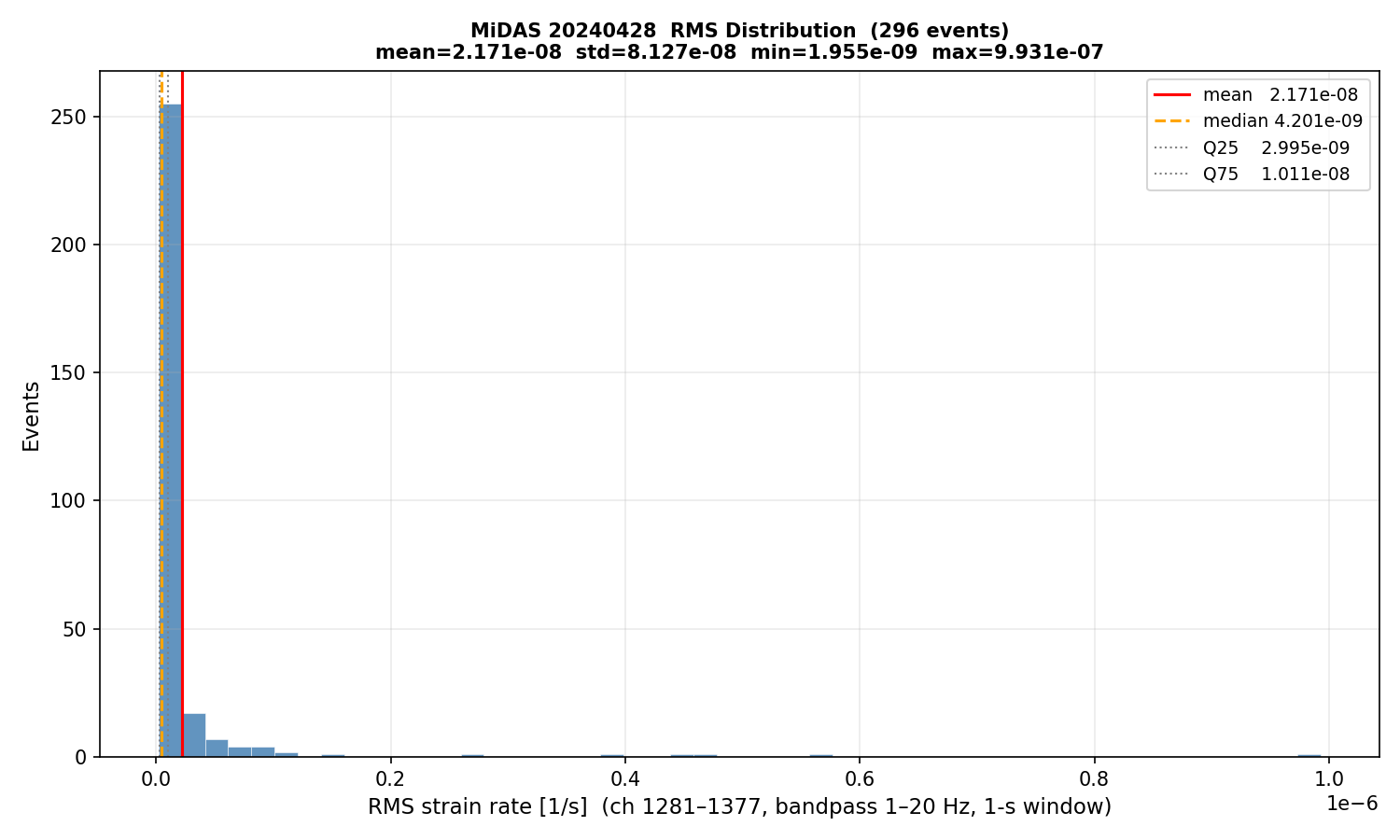

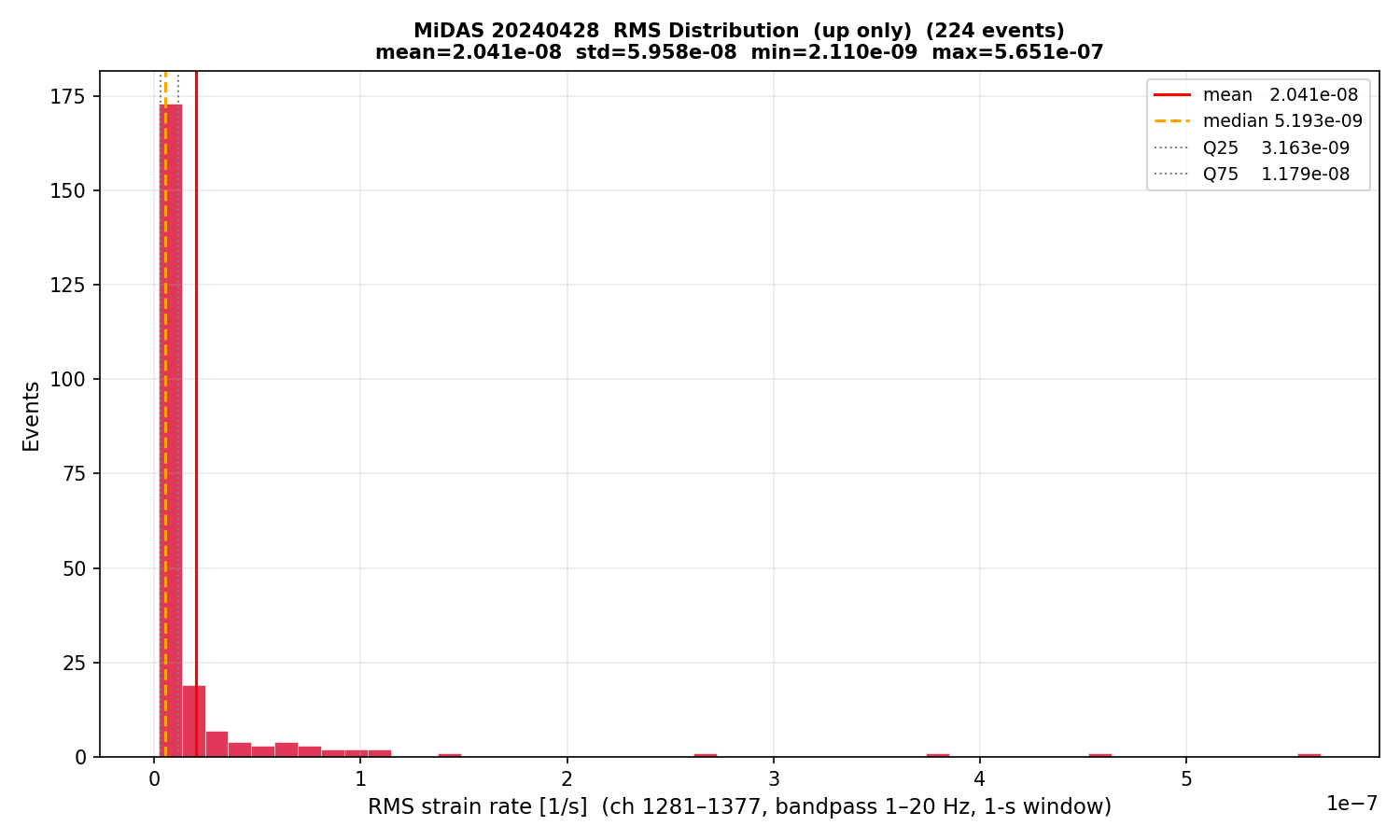

MiDAS Daily RMS peaks — 20240428 Total: 296 events [RMS_below300m 欄位說明] 來源 : 2024 backfill nc（100Hz decimated，Hole A trace 1307–1403，跳過頂部 73 ch，對應深度 ~300–700 m） 前處理: per-file bad-channel masking(median+10×MAD) → bandpass 1–20 Hz（sosfiltfilt，逐檔獨立，非跨檔 causal filter state） 公式 : sqrt( sum(x[ch,t]^2) / (97 ch × 100 samples) ) / DAS_SENSITIVITY 意義 : STA/LTA 偵測峰值那一秒，97 個 channel × 100 個取樣點的 RMS 振幅 單位 : strain rate (1/s)，已轉換為物理應變率（DAS_SENSITIVITY=7.0621e+08） 參考值: 典型背景 ~7.08e-10–2.83e-09，大地震 > 1.13e-08 RMS stats mean=2.171e-08 std=8.127e-08 min=1.955e-09 Q25=2.995e-09 median=4.201e-09 Q75=1.011e-08 max=9.931e-07 ID timestamp_tw (UTC+8) RMS_below300m fk_label CWA ------------------------------------------------------------------ 000 2024-04-28 08:05:16 7.573e-09 up 0 001 2024-04-28 08:08:38 3.064e-09 down 0 002 2024-04-28 08:09:56 4.849e-08 up 0 003 2024-04-28 08:18:21 1.340e-08 up 0 004 2024-04-28 08:19:37 5.561e-09 up 0 005 2024-04-28 08:21:11 3.473e-09 down 0 006 2024-04-28 08:26:49 6.366e-09 up 0 007 2024-04-28 08:32:08 9.278e-08 up 0 008 2024-04-28 08:36:05 8.530e-09 up 0 009 2024-04-28 08:38:40 2.898e-09 up 0 010 2024-04-28 08:42:07 9.027e-09 up 0 011 2024-04-28 08:44:26 2.913e-09 down 0 012 2024-04-28 08:48:34 3.324e-09 up 0 013 2024-04-28 08:49:33 5.946e-09 up 0 014 2024-04-28 08:50:46 2.676e-08 up 0 015 2024-04-28 08:55:23 5.508e-09 down 0 016 2024-04-28 09:00:22 3.243e-09 up 0 017 2024-04-28 09:02:47 2.923e-09 up 0 018 2024-04-28 09:07:34 3.498e-09 up 0 019 2024-04-28 09:09:51 3.768e-09 down 0 020 2024-04-28 09:11:49 2.081e-08 up 0 021 2024-04-28 09:12:40 1.688e-08 down 0 022 2024-04-28 09:13:50 3.233e-09 up 0 023 2024-04-28 09:22:08 3.139e-09 down 0 024 2024-04-28 09:30:06 3.137e-09 down 0 025 2024-04-28 09:31:58 8.441e-09 up 0 026 2024-04-28 09:32:57 3.844e-07 up 0 027 2024-04-28 09:37:05 5.497e-09 noise 0 028 2024-04-28 09:39:28 4.548e-09 up 0 029 2024-04-28 09:46:04 1.092e-07 up 0 030 2024-04-28 09:48:33 4.867e-09 down 0 031 2024-04-28 09:50:06 7.896e-08 up 0 032 2024-04-28 09:54:09 3.861e-08 up 0 033 2024-04-28 09:56:55 6.760e-09 up 0 034 2024-04-28 10:09:18 2.840e-09 down 0 035 2024-04-28 10:09:58 2.585e-08 up 0 036 2024-04-28 10:12:06 9.460e-09 up 0 037 2024-04-28 10:15:19 8.305e-09 up 0 038 2024-04-28 10:22:31 1.006e-08 up 0 039 2024-04-28 10:30:07 3.066e-09 down 0 040 2024-04-28 10:31:06 2.764e-09 down 0 041 2024-04-28 10:48:30 6.953e-09 up 0 042 2024-04-28 10:53:24 7.120e-09 up 0 043 2024-04-28 10:54:05 2.741e-08 noise_large 0 044 2024-04-28 11:07:25 3.165e-09 up 0 045 2024-04-28 11:10:16 4.111e-09 up 0 046 2024-04-28 11:15:06 6.011e-08 up 0 047 2024-04-28 11:18:00 2.583e-09 down 0 048 2024-04-28 11:21:26 3.537e-09 up 0 049 2024-04-28 11:22:03 5.937e-09 up 0 050 2024-04-28 11:26:22 3.002e-09 down 0 051 2024-04-28 11:26:34 3.605e-09 up 0 052 2024-04-28 11:29:27 1.089e-08 up 0 053 2024-04-28 11:30:39 3.316e-09 down 0 054 2024-04-28 11:36:41 3.002e-09 down 0 055 2024-04-28 11:37:57 3.545e-09 up 0 056 2024-04-28 11:44:41 5.794e-09 up 0 057 2024-04-28 11:46:12 6.488e-09 up 0 058 2024-04-28 11:48:31 2.676e-09 up 0 059 2024-04-28 11:49:25 4.524e-09 down 0 060 2024-04-28 11:58:38 6.621e-09 up 0 061 2024-04-28 11:59:06 5.186e-09 up 0 062 2024-04-28 12:02:17 2.713e-07 up 0 063 2024-04-28 12:08:46 1.448e-07 up 0 064 2024-04-28 12:10:42 4.940e-09 up 0 065 2024-04-28 12:16:29 3.210e-09 up 0 066 2024-04-28 12:19:26 3.609e-09 up 0 067 2024-04-28 12:21:30 4.991e-09 down 0 068 2024-04-28 12:25:24 3.577e-09 up 0 069 2024-04-28 12:25:52 1.192e-08 up 0 070 2024-04-28 12:28:04 3.558e-09 up 0 071 2024-04-28 12:32:22 3.928e-09 down 0 072 2024-04-28 12:45:38 2.883e-09 noise 0 073 2024-04-28 12:46:19 2.867e-08 up 0 074 2024-04-28 12:52:48 2.778e-09 up 0 075 2024-04-28 12:53:40 2.660e-09 up 0 076 2024-04-28 12:56:05 8.935e-09 noise 0 077 2024-04-28 12:56:33 3.765e-08 up 0 078 2024-04-28 12:58:32 3.265e-09 down 0 079 2024-04-28 13:17:53 2.727e-09 up 0 080 2024-04-28 13:25:22 2.926e-09 up 0 081 2024-04-28 13:35:41 3.018e-09 up 0 082 2024-04-28 13:52:07 5.766e-09 up 0 083 2024-04-28 13:53:29 3.144e-09 up 0 084 2024-04-28 14:07:19 5.199e-09 up 0 085 2024-04-28 14:10:38 4.221e-09 up 0 086 2024-04-28 14:10:52 2.759e-08 up 0 087 2024-04-28 14:14:32 3.732e-09 down 0 088 2024-04-28 14:32:10 3.812e-09 up 0 089 2024-04-28 14:33:44 2.969e-09 up 0 090 2024-04-28 14:37:53 7.781e-09 up 0 091 2024-04-28 14:43:37 3.670e-09 up 0 092 2024-04-28 14:45:32 1.387e-08 up 0 093 2024-04-28 14:47:35 2.953e-08 up 0 094 2024-04-28 15:00:50 3.000e-09 up 0 095 2024-04-28 15:09:14 1.023e-08 up 0 096 2024-04-28 15:13:51 2.667e-09 down 0 097 2024-04-28 15:21:40 2.616e-09 up 0 098 2024-04-28 15:22:20 2.122e-08 up 0 099 2024-04-28 15:24:16 3.033e-09 up 0 100 2024-04-28 15:25:27 5.911e-09 up 0 101 2024-04-28 15:29:13 5.145e-08 up 0 102 2024-04-28 15:29:51 1.199e-08 up 0 103 2024-04-28 15:32:00 4.199e-09 up 0 104 2024-04-28 15:32:56 8.576e-09 up 0 105 2024-04-28 15:36:14 2.375e-09 up 0 106 2024-04-28 15:37:41 2.990e-09 up 0 107 2024-04-28 15:37:55 3.529e-09 up 0 108 2024-04-28 15:42:41 5.459e-09 up 0 109 2024-04-28 15:47:36 2.544e-09 up 0 110 2024-04-28 15:54:26 2.632e-09 up 0 111 2024-04-28 15:59:30 3.631e-09 up 0 112 2024-04-28 16:03:20 4.316e-09 up 0 113 2024-04-28 16:08:08 1.175e-08 up 0 114 2024-04-28 16:09:17 5.958e-09 noise 0 115 2024-04-28 16:14:04 9.931e-07 down 0 116 2024-04-28 16:20:06 1.580e-08 up 0 117 2024-04-28 16:23:07 7.272e-08 up 0 118 2024-04-28 16:24:33 3.028e-09 down 0 119 2024-04-28 16:33:38 1.131e-08 up 0 120 2024-04-28 16:35:26 4.070e-09 down 0 121 2024-04-28 16:36:45 1.718e-08 up 0 122 2024-04-28 16:43:37 6.222e-09 up 0 123 2024-04-28 16:48:48 1.100e-08 up 0 124 2024-04-28 16:58:58 2.501e-09 noise 0 125 2024-04-28 17:06:03 2.703e-09 down 0 126 2024-04-28 17:13:49 1.425e-08 up 0 127 2024-04-28 17:15:13 1.159e-08 up 0 128 2024-04-28 17:16:52 4.631e-09 up 0 129 2024-04-28 17:22:48 2.650e-09 down 0 130 2024-04-28 17:27:42 5.911e-08 up 0 131 2024-04-28 17:36:59 4.297e-09 up 0 132 2024-04-28 17:47:59 2.654e-09 up 0 133 2024-04-28 17:50:13 3.238e-09 up 0 134 2024-04-28 17:55:52 2.708e-09 up 0 135 2024-04-28 18:01:47 1.955e-09 down 0 136 2024-04-28 18:02:01 2.925e-09 down 0 137 2024-04-28 18:05:06 4.242e-09 up 0 138 2024-04-28 18:11:03 3.700e-08 up 0 139 2024-04-28 18:16:09 7.856e-09 up 0 140 2024-04-28 18:20:05 2.416e-08 up 0 141 2024-04-28 18:29:47 2.654e-09 noise 0 142 2024-04-28 18:32:09 2.428e-09 up 0 143 2024-04-28 18:36:09 2.530e-09 up 0 144 2024-04-28 18:40:07 3.046e-09 down 0 145 2024-04-28 18:40:41 3.112e-09 up 0 146 2024-04-28 18:41:37 2.283e-09 noise 0 147 2024-04-28 18:43:47 3.336e-08 up 0 148 2024-04-28 18:46:10 1.224e-08 up 0 149 2024-04-28 18:47:54 3.504e-09 up 0 150 2024-04-28 18:53:21 3.396e-09 up 0 151 2024-04-28 18:57:50 3.377e-09 down 0 152 2024-04-28 18:59:16 3.048e-09 up 0 153 2024-04-28 19:00:16 1.249e-08 up 0 154 2024-04-28 19:08:23 1.085e-08 up 0 155 2024-04-28 19:16:49 2.095e-09 noise 0 156 2024-04-28 19:36:16 3.226e-09 up 0 157 2024-04-28 19:37:08 3.138e-09 up 0 158 2024-04-28 19:37:48 2.835e-09 up 0 159 2024-04-28 20:05:15 4.595e-07 down 0 160 2024-04-28 20:13:11 2.864e-09 up 0 161 2024-04-28 20:14:13 3.156e-09 up 0 162 2024-04-28 20:18:41 4.553e-07 up 0 163 2024-04-28 20:27:47 2.486e-09 up 0 164 2024-04-28 20:29:39 1.352e-08 up 0 165 2024-04-28 20:36:55 5.680e-09 up 0 166 2024-04-28 20:55:08 2.155e-09 down 0 167 2024-04-28 21:04:00 2.073e-09 noise 0 168 2024-04-28 21:05:26 1.091e-07 up 0 169 2024-04-28 21:09:06 8.508e-08 up 0 170 2024-04-28 21:10:30 5.793e-09 up 0 171 2024-04-28 21:13:19 7.085e-09 noise 0 172 2024-04-28 21:20:08 2.180e-08 up 0 173 2024-04-28 21:40:33 7.332e-09 up 0 174 2024-04-28 21:48:45 2.052e-09 noise 0 175 2024-04-28 21:50:47 3.052e-09 up 0 176 2024-04-28 22:00:17 4.076e-09 up 0 177 2024-04-28 22:01:46 1.807e-08 up 0 178 2024-04-28 22:04:32 3.883e-09 up 0 179 2024-04-28 22:14:30 7.385e-09 down 0 180 2024-04-28 22:14:58 4.542e-09 up 0 181 2024-04-28 22:18:25 3.625e-09 up 0 182 2024-04-28 22:18:39 4.013e-08 up 0 183 2024-04-28 22:30:31 1.202e-08 up 0 184 2024-04-28 22:36:09 2.440e-09 noise 0 185 2024-04-28 22:36:34 5.345e-09 up 0 186 2024-04-28 22:41:23 4.123e-09 up 0 187 2024-04-28 22:45:41 2.554e-09 down 0 188 2024-04-28 22:45:58 2.446e-09 noise 0 189 2024-04-28 22:47:19 3.922e-09 noise 0 190 2024-04-28 22:58:36 2.252e-09 down 0 191 2024-04-28 23:08:13 3.133e-09 up 0 192 2024-04-28 23:09:46 2.562e-09 down 0 193 2024-04-28 23:10:50 9.098e-08 up 0 194 2024-04-28 23:12:42 2.963e-09 up 0 195 2024-04-28 23:13:20 2.422e-08 up 0 196 2024-04-28 23:20:22 2.990e-09 up 0 197 2024-04-28 23:24:59 4.315e-09 up 0 198 2024-04-28 23:27:35 3.291e-08 down 0 199 2024-04-28 23:42:22 2.248e-09 noise 0 200 2024-04-28 23:43:46 2.847e-09 noise 0 201 2024-04-28 23:44:41 2.626e-09 up 0 202 2024-04-28 23:48:59 2.683e-09 up 0 203 2024-04-28 23:52:16 4.203e-09 up 0 204 2024-04-28 23:59:17 9.790e-08 up 0 205 2024-04-29 00:00:59 2.867e-09 up 0 206 2024-04-29 00:01:25 5.461e-09 up 0 207 2024-04-29 00:07:09 2.744e-09 up 0 208 2024-04-29 00:16:17 3.591e-09 noise 0 209 2024-04-29 00:20:15 5.564e-09 up 0 210 2024-04-29 00:26:52 2.654e-09 down 0 211 2024-04-29 00:30:27 2.565e-09 up 0 212 2024-04-29 00:54:43 4.244e-09 up 0 213 2024-04-29 00:55:43 2.663e-09 up 0 214 2024-04-29 00:59:06 1.352e-08 up 0 215 2024-04-29 01:01:49 3.371e-09 up 0 216 2024-04-29 01:03:27 1.610e-08 up 0 217 2024-04-29 01:06:08 3.028e-09 down 0 218 2024-04-29 01:09:09 3.791e-09 up 0 219 2024-04-29 01:09:43 5.864e-08 up 0 220 2024-04-29 01:21:45 2.042e-08 up 0 221 2024-04-29 01:23:43 2.390e-09 noise 0 222 2024-04-29 01:37:43 1.077e-08 up 0 223 2024-04-29 01:40:30 5.651e-07 up 0 224 2024-04-29 01:57:16 2.844e-09 up 0 225 2024-04-29 02:00:52 3.760e-09 up 0 226 2024-04-29 02:01:10 1.071e-08 up 0 227 2024-04-29 02:02:30 5.814e-09 up 0 228 2024-04-29 02:05:36 4.488e-09 up 0 229 2024-04-29 02:07:23 6.609e-09 up 0 230 2024-04-29 02:09:44 7.508e-09 up 0 231 2024-04-29 02:13:04 4.576e-09 up 0 232 2024-04-29 02:15:06 2.700e-09 up 0 233 2024-04-29 02:16:42 3.472e-09 up 0 234 2024-04-29 02:26:37 2.554e-08 up 0 235 2024-04-29 02:50:12 5.505e-09 up 0 236 2024-04-29 03:08:01 3.989e-09 up 0 237 2024-04-29 03:14:16 1.617e-08 up 0 238 2024-04-29 03:16:35 2.670e-09 up 0 239 2024-04-29 03:23:32 3.747e-09 up 0 240 2024-04-29 03:29:27 3.986e-09 up 0 241 2024-04-29 03:38:48 2.787e-09 up 0 242 2024-04-29 03:40:27 2.910e-08 down 0 243 2024-04-29 03:42:40 3.102e-09 down 0 244 2024-04-29 03:55:11 7.066e-08 down 0 245 2024-04-29 03:57:43 2.110e-09 up 0 246 2024-04-29 03:59:54 3.697e-09 up 0 247 2024-04-29 04:02:13 2.062e-09 noise 0 248 2024-04-29 04:16:42 2.996e-09 down 0 249 2024-04-29 04:17:40 1.160e-08 up 0 250 2024-04-29 04:19:39 5.965e-08 up 0 251 2024-04-29 04:22:21 2.615e-09 up 0 252 2024-04-29 04:26:15 3.244e-09 up 0 253 2024-04-29 04:28:51 2.760e-09 up 0 254 2024-04-29 04:30:12 3.034e-09 up 0 255 2024-04-29 04:35:18 7.204e-08 up 0 256 2024-04-29 04:57:48 2.071e-09 noise 0 257 2024-04-29 05:01:48 3.684e-09 up 0 258 2024-04-29 05:03:56 2.490e-09 up 0 259 2024-04-29 05:05:22 2.679e-09 up 0 260 2024-04-29 05:07:34 5.924e-09 down 0 261 2024-04-29 05:14:57 3.128e-09 up 0 262 2024-04-29 05:15:15 2.644e-09 noise 0 263 2024-04-29 05:17:08 2.534e-09 up 0 264 2024-04-29 05:21:17 5.890e-09 up 0 265 2024-04-29 05:23:35 3.400e-09 up 0 266 2024-04-29 05:25:44 2.164e-09 noise 0 267 2024-04-29 05:28:31 1.788e-08 up 0 268 2024-04-29 05:32:17 2.687e-09 up 0 269 2024-04-29 05:33:59 8.369e-09 down 0 270 2024-04-29 05:36:21 3.527e-09 up 0 271 2024-04-29 05:37:16 2.878e-09 up 0 272 2024-04-29 05:44:05 1.845e-08 up 0 273 2024-04-29 05:52:00 1.007e-08 up 0 274 2024-04-29 05:54:28 4.862e-09 up 0 275 2024-04-29 05:57:52 1.353e-08 up 0 276 2024-04-29 06:05:08 2.893e-09 up 0 277 2024-04-29 06:07:35 8.566e-09 up 0 278 2024-04-29 06:24:48 9.646e-09 up 0 279 2024-04-29 06:28:05 6.164e-09 up 0 280 2024-04-29 06:34:49 3.352e-09 up 0 281 2024-04-29 06:42:59 2.718e-09 noise 0 282 2024-04-29 06:46:47 2.763e-09 up 0 283 2024-04-29 07:00:02 1.038e-08 up 0 284 2024-04-29 07:04:31 5.886e-09 up 0 285 2024-04-29 07:04:44 4.845e-09 up 0 286 2024-04-29 07:11:25 7.039e-09 up 0 287 2024-04-29 07:27:35 6.314e-09 up 0 288 2024-04-29 07:29:12 3.318e-09 up 0 289 2024-04-29 07:31:06 5.426e-09 up 0 290 2024-04-29 07:32:29 8.000e-09 up 0 291 2024-04-29 07:40:08 5.699e-09 down 0 292 2024-04-29 07:41:42 5.123e-09 down 0 293 2024-04-29 07:44:25 5.358e-08 up 0 294 2024-04-29 07:52:16 2.769e-09 up 0 295 2024-04-29 07:59:19 3.123e-09 up 0
