| 日期 (UTC) | 20240510 |
|---|---|
| 事件總數 | 190 |
| ↑ up (紅) | 155 |
| ↓ down (橘) | 20 |
| 共模噪音 (綠) | 8 |
| noise_large (洋紅) | 7 |
| CWA 地震 (紫★) | 0 |
| RMS max | 0.000 |
| RMS median | 0.000 |
| RMS mean | 0.000 |
互動版（24 條小時線）：點圖例中的小時色塊 → 該小時線變明顯、其餘變半透明；再點一次還原。
點擊上圖的紅色 up 事件以顯示 waterfall plot。

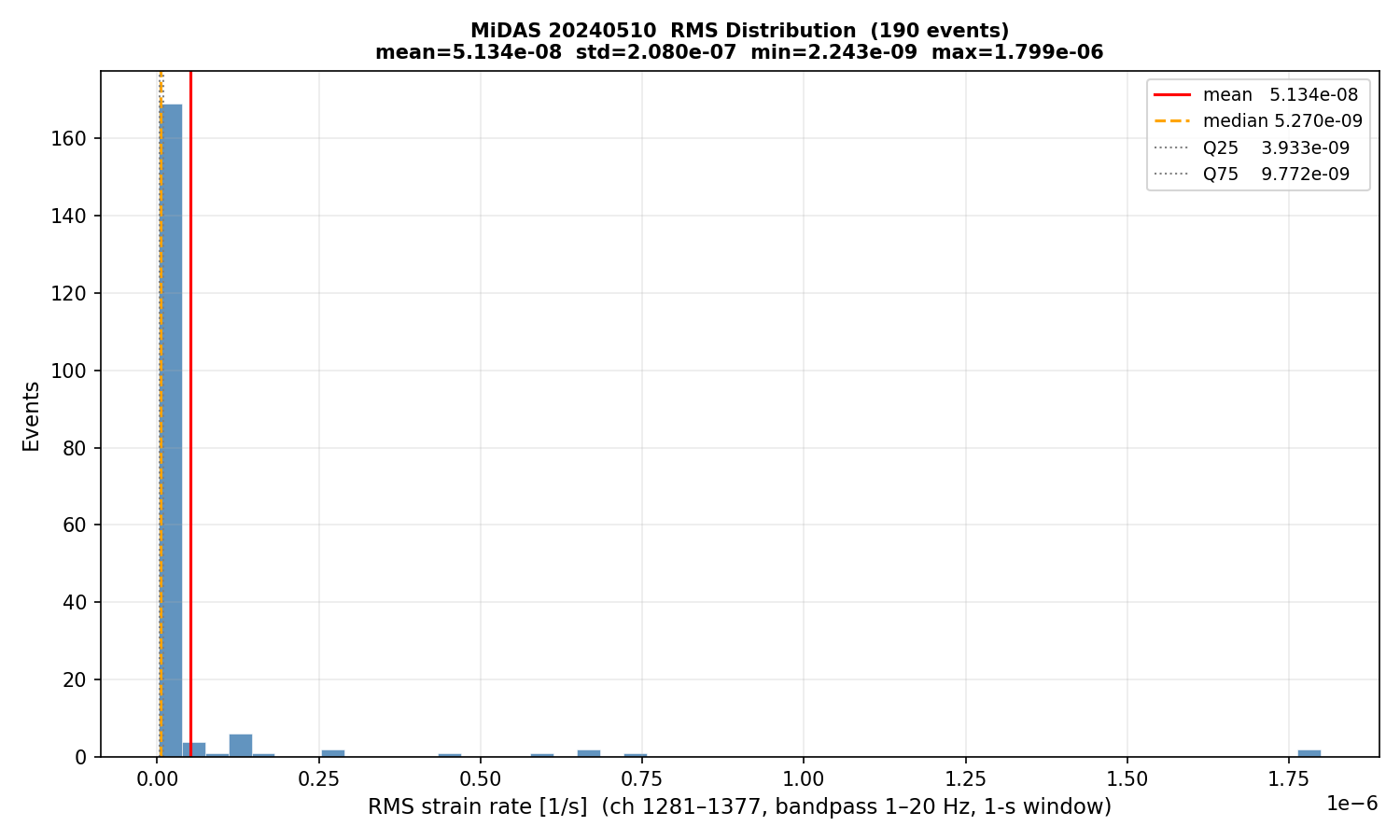

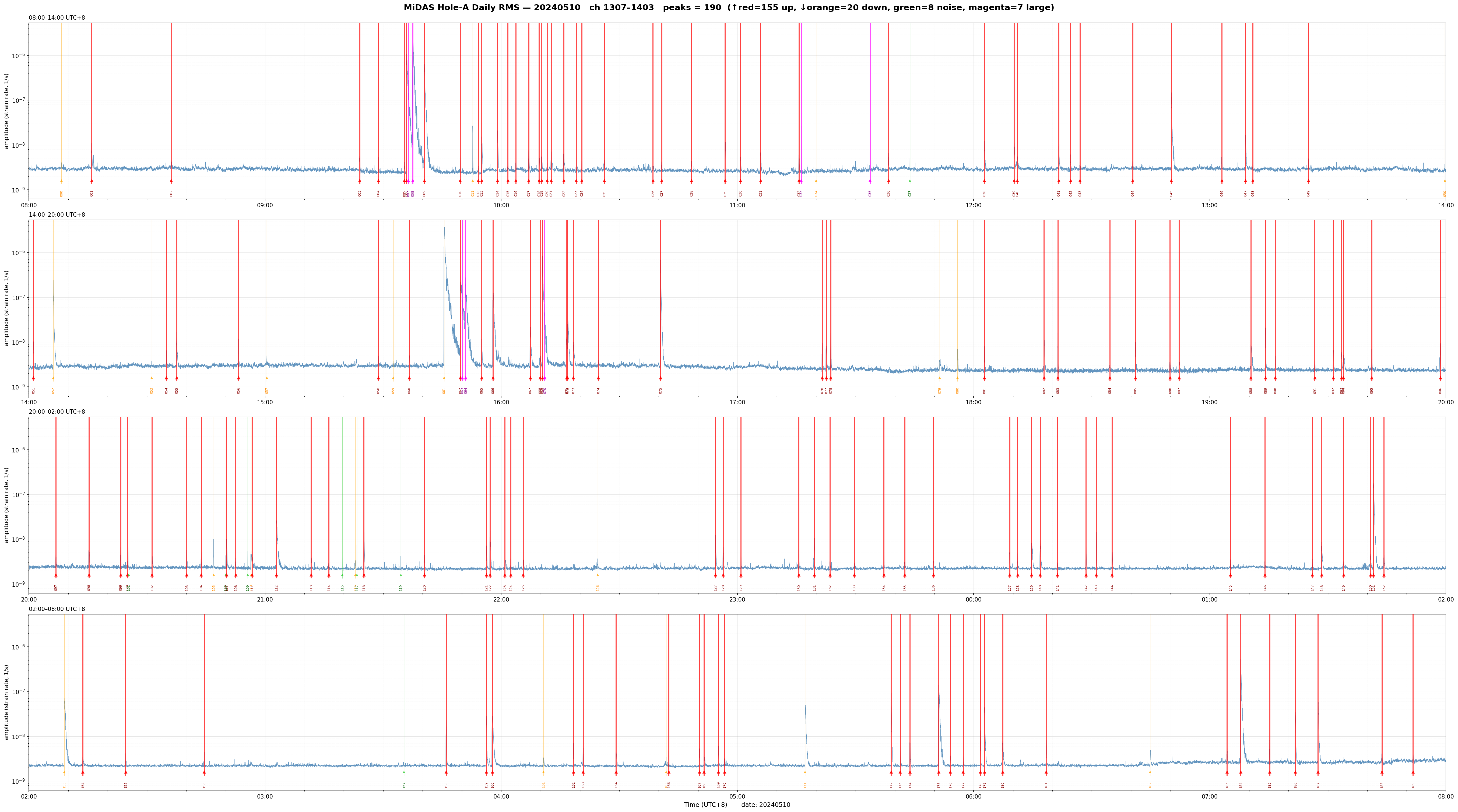

MiDAS Daily RMS peaks — 20240510 Total: 190 events [RMS_below300m 欄位說明] 來源 : 2024 backfill nc（100Hz decimated，Hole A trace 1307–1403，跳過頂部 73 ch，對應深度 ~300–700 m） 前處理: per-file bad-channel masking(median+10×MAD) → bandpass 1–20 Hz（sosfiltfilt，逐檔獨立，非跨檔 causal filter state） 公式 : sqrt( sum(x[ch,t]^2) / (97 ch × 100 samples) ) / DAS_SENSITIVITY 意義 : STA/LTA 偵測峰值那一秒，97 個 channel × 100 個取樣點的 RMS 振幅 單位 : strain rate (1/s)，已轉換為物理應變率（DAS_SENSITIVITY=7.0621e+08） 參考值: 典型背景 ~7.08e-10–2.83e-09，大地震 > 1.13e-08 RMS stats mean=5.134e-08 std=2.080e-07 min=2.243e-09 Q25=3.933e-09 median=5.270e-09 Q75=9.772e-09 max=1.799e-06 ID timestamp_tw (UTC+8) RMS_below300m fk_label CWA ------------------------------------------------------------------ 000 2024-05-10 08:08:17 4.039e-09 down 0 001 2024-05-10 08:15:59 9.605e-09 up 0 002 2024-05-10 08:36:10 3.981e-09 up 0 003 2024-05-10 09:24:03 5.696e-09 up 0 004 2024-05-10 09:28:48 3.104e-09 up 0 005 2024-05-10 09:35:23 3.978e-09 up 0 006 2024-05-10 09:35:55 7.553e-07 up 0 007 2024-05-10 09:36:24 2.828e-07 noise_large 0 008 2024-05-10 09:37:32 1.776e-06 noise_large 0 009 2024-05-10 09:40:29 5.915e-07 up 0 010 2024-05-10 09:49:33 5.814e-09 up 0 011 2024-05-10 09:52:45 2.192e-08 down 0 012 2024-05-10 09:54:10 3.342e-09 up 0 013 2024-05-10 09:55:03 1.532e-08 up 0 014 2024-05-10 09:59:04 2.096e-08 up 0 015 2024-05-10 10:01:43 4.321e-09 up 0 016 2024-05-10 10:03:43 3.928e-09 up 0 017 2024-05-10 10:06:59 7.870e-09 up 0 018 2024-05-10 10:09:37 5.516e-09 up 0 019 2024-05-10 10:10:18 5.112e-09 up 0 020 2024-05-10 10:11:40 3.546e-09 up 0 021 2024-05-10 10:12:42 5.869e-09 up 0 022 2024-05-10 10:15:55 6.617e-09 up 0 023 2024-05-10 10:19:02 3.717e-09 up 0 024 2024-05-10 10:20:28 3.379e-09 up 0 025 2024-05-10 10:26:12 4.445e-09 up 0 026 2024-05-10 10:38:34 4.005e-09 up 0 027 2024-05-10 10:40:46 4.105e-09 up 0 028 2024-05-10 10:48:20 4.375e-09 up 0 029 2024-05-10 10:56:53 1.105e-08 up 0 030 2024-05-10 11:00:47 5.220e-09 up 0 031 2024-05-10 11:05:55 7.003e-09 up 0 032 2024-05-10 11:15:38 8.965e-09 up 0 033 2024-05-10 11:16:11 2.655e-08 noise_large 0 034 2024-05-10 11:19:59 3.378e-09 down 0 035 2024-05-10 11:33:41 3.226e-08 noise_large 0 036 2024-05-10 11:38:25 5.155e-09 up 0 037 2024-05-10 11:43:48 5.087e-09 noise 0 038 2024-05-10 12:02:44 1.178e-08 up 0 039 2024-05-10 12:10:18 9.099e-09 up 0 040 2024-05-10 12:11:06 5.580e-09 up 0 041 2024-05-10 12:21:39 9.218e-09 up 0 042 2024-05-10 12:24:40 5.827e-09 up 0 043 2024-05-10 12:27:01 3.828e-09 up 0 044 2024-05-10 12:40:25 4.397e-09 up 0 045 2024-05-10 12:50:13 1.484e-07 up 0 046 2024-05-10 13:03:05 4.920e-09 up 0 047 2024-05-10 13:09:05 1.625e-08 up 0 048 2024-05-10 13:10:56 4.064e-09 up 0 049 2024-05-10 13:25:05 3.215e-09 up 0 050 2024-05-10 13:59:43 3.319e-09 down 0 051 2024-05-10 14:01:09 9.585e-09 up 0 052 2024-05-10 14:06:12 1.290e-07 down 0 053 2024-05-10 14:31:12 3.829e-09 down 0 054 2024-05-10 14:34:56 4.379e-09 up 0 055 2024-05-10 14:37:35 1.518e-08 up 0 056 2024-05-10 14:53:17 8.404e-09 up 0 057 2024-05-10 15:00:27 4.953e-09 down 0 058 2024-05-10 15:28:48 4.158e-09 up 0 059 2024-05-10 15:32:33 3.719e-09 down 0 060 2024-05-10 15:36:39 5.028e-09 up 0 061 2024-05-10 15:45:29 1.799e-06 down 0 062 2024-05-10 15:49:37 1.437e-07 up 0 063 2024-05-10 15:50:06 1.377e-07 noise_large 0 064 2024-05-10 15:50:58 2.767e-07 noise_large 0 065 2024-05-10 15:55:03 7.478e-09 up 0 066 2024-05-10 15:57:55 1.254e-07 up 0 067 2024-05-10 16:07:25 2.148e-08 up 0 068 2024-05-10 16:09:53 4.400e-09 up 0 069 2024-05-10 16:10:30 6.708e-07 up 0 070 2024-05-10 16:11:04 7.069e-08 noise_large 0 071 2024-05-10 16:16:38 1.278e-08 up 0 072 2024-05-10 16:16:51 2.238e-08 up 0 073 2024-05-10 16:18:19 9.828e-09 up 0 074 2024-05-10 16:24:41 3.960e-09 up 0 075 2024-05-10 16:40:29 6.564e-07 up 0 076 2024-05-10 17:21:33 8.209e-09 up 0 077 2024-05-10 17:22:36 7.303e-09 up 0 078 2024-05-10 17:23:43 1.574e-08 up 0 079 2024-05-10 17:51:22 3.569e-09 down 0 080 2024-05-10 17:55:54 4.995e-09 down 0 081 2024-05-10 18:02:45 6.815e-09 up 0 082 2024-05-10 18:17:55 1.059e-08 up 0 083 2024-05-10 18:21:25 1.177e-08 up 0 084 2024-05-10 18:34:37 3.350e-09 up 0 085 2024-05-10 18:41:08 9.378e-09 up 0 086 2024-05-10 18:49:55 3.573e-09 up 0 087 2024-05-10 18:52:14 3.527e-09 up 0 088 2024-05-10 19:10:26 8.773e-09 up 0 089 2024-05-10 19:14:10 1.596e-08 up 0 090 2024-05-10 19:16:38 4.330e-09 up 0 091 2024-05-10 19:26:42 3.786e-09 up 0 092 2024-05-10 19:31:23 6.384e-09 up 0 093 2024-05-10 19:33:29 5.934e-09 up 0 094 2024-05-10 19:33:57 4.556e-09 up 0 095 2024-05-10 19:41:08 4.210e-09 up 0 096 2024-05-10 19:58:36 7.391e-09 up 0 097 2024-05-10 20:06:52 4.228e-09 up 0 098 2024-05-10 20:15:18 6.087e-09 up 0 099 2024-05-10 20:23:21 4.942e-09 up 0 100 2024-05-10 20:25:02 3.017e-09 up 0 101 2024-05-10 20:25:23 8.050e-09 noise 0 102 2024-05-10 20:31:17 5.788e-09 up 0 103 2024-05-10 20:40:06 3.562e-09 up 0 104 2024-05-10 20:43:47 4.896e-09 up 0 105 2024-05-10 20:46:57 5.607e-09 down 0 106 2024-05-10 20:50:00 4.326e-09 noise 0 107 2024-05-10 20:50:15 6.339e-09 up 0 108 2024-05-10 20:52:35 2.816e-09 up 0 109 2024-05-10 20:55:36 5.433e-09 noise 0 110 2024-05-10 20:56:29 5.034e-09 down 0 111 2024-05-10 20:56:43 3.805e-09 up 0 112 2024-05-10 21:02:54 2.500e-08 up 0 113 2024-05-10 21:11:43 3.916e-09 up 0 114 2024-05-10 21:16:13 3.788e-09 up 0 115 2024-05-10 21:19:37 2.243e-09 noise 0 116 2024-05-10 21:22:55 3.267e-09 down 0 117 2024-05-10 21:23:20 2.267e-09 noise 0 118 2024-05-10 21:25:08 1.999e-08 up 0 119 2024-05-10 21:34:30 2.261e-09 noise 0 120 2024-05-10 21:40:31 4.401e-09 up 0 121 2024-05-10 21:56:15 7.129e-09 up 0 122 2024-05-10 21:57:10 1.505e-08 up 0 123 2024-05-10 22:00:55 3.917e-09 up 0 124 2024-05-10 22:02:26 3.314e-09 up 0 125 2024-05-10 22:05:34 3.452e-09 up 0 126 2024-05-10 22:24:30 2.909e-09 down 0 127 2024-05-10 22:54:26 8.250e-09 up 0 128 2024-05-10 22:56:23 5.900e-09 up 0 129 2024-05-10 23:00:53 4.298e-09 up 0 130 2024-05-10 23:15:37 3.812e-09 up 0 131 2024-05-10 23:19:33 1.044e-08 up 0 132 2024-05-10 23:23:33 3.252e-09 up 0 133 2024-05-10 23:29:42 2.959e-09 up 0 134 2024-05-10 23:37:14 5.008e-09 up 0 135 2024-05-10 23:42:31 3.076e-09 up 0 136 2024-05-10 23:49:49 2.953e-09 up 0 137 2024-05-11 00:09:10 4.934e-09 up 0 138 2024-05-11 00:11:13 4.983e-09 up 0 139 2024-05-11 00:14:43 7.671e-09 up 0 140 2024-05-11 00:16:55 8.300e-09 up 0 141 2024-05-11 00:21:18 2.768e-09 up 0 142 2024-05-11 00:28:35 6.950e-09 up 0 143 2024-05-11 00:31:10 9.584e-09 up 0 144 2024-05-11 00:35:10 4.804e-09 up 0 145 2024-05-11 01:05:15 2.457e-09 up 0 146 2024-05-11 01:14:01 3.587e-09 up 0 147 2024-05-11 01:26:03 3.105e-09 up 0 148 2024-05-11 01:28:26 8.481e-09 up 0 149 2024-05-11 01:34:01 3.174e-09 up 0 150 2024-05-11 01:40:52 4.542e-09 up 0 151 2024-05-11 01:41:35 1.389e-07 up 0 152 2024-05-11 01:44:14 4.143e-09 up 0 153 2024-05-11 02:08:59 4.712e-08 down 0 154 2024-05-11 02:13:42 3.058e-09 up 0 155 2024-05-11 02:24:37 4.163e-09 up 0 156 2024-05-11 02:44:33 4.487e-09 up 0 157 2024-05-11 03:35:17 2.577e-09 noise 0 158 2024-05-11 03:46:01 2.100e-08 up 0 159 2024-05-11 03:56:14 2.803e-08 up 0 160 2024-05-11 03:57:46 2.849e-08 up 0 161 2024-05-11 04:10:43 3.346e-09 down 0 162 2024-05-11 04:18:22 5.405e-09 up 0 163 2024-05-11 04:20:49 5.571e-09 up 0 164 2024-05-11 04:29:12 4.671e-09 up 0 165 2024-05-11 04:41:54 3.469e-09 down 0 166 2024-05-11 04:42:35 4.631e-09 up 0 167 2024-05-11 04:50:22 5.319e-09 up 0 168 2024-05-11 04:51:31 3.948e-09 up 0 169 2024-05-11 04:55:11 4.627e-09 up 0 170 2024-05-11 04:56:45 2.978e-09 up 0 171 2024-05-11 05:17:10 3.147e-08 down 0 172 2024-05-11 05:39:04 5.750e-08 up 0 173 2024-05-11 05:41:21 4.975e-09 up 0 174 2024-05-11 05:43:50 8.249e-09 up 0 175 2024-05-11 05:51:09 1.412e-07 up 0 176 2024-05-11 05:54:05 3.690e-09 up 0 177 2024-05-11 05:57:21 3.335e-09 up 0 178 2024-05-11 06:01:43 1.184e-08 up 0 179 2024-05-11 06:02:47 4.547e-08 up 0 180 2024-05-11 06:07:24 7.827e-09 up 0 181 2024-05-11 06:18:26 7.896e-09 up 0 182 2024-05-11 06:44:50 4.646e-09 down 0 183 2024-05-11 07:04:23 6.651e-09 up 0 184 2024-05-11 07:07:52 4.513e-07 up 0 185 2024-05-11 07:15:13 7.778e-09 up 0 186 2024-05-11 07:21:44 2.964e-08 up 0 187 2024-05-11 07:27:30 8.489e-08 up 0 188 2024-05-11 07:43:44 7.203e-09 up 0 189 2024-05-11 07:51:39 4.421e-09 up 0
