| 日期 (UTC) | 20240527 |
|---|---|
| 事件總數 | 201 |
| ↑ up (紅) | 81 |
| ↓ down (橘) | 16 |
| 共模噪音 (綠) | 104 |
| noise_large (洋紅) | 0 |
| CWA 地震 (紫★) | 0 |
| RMS max | 0.000 |
| RMS median | 0.000 |
| RMS mean | 0.000 |
互動版（24 條小時線）：點圖例中的小時色塊 → 該小時線變明顯、其餘變半透明；再點一次還原。

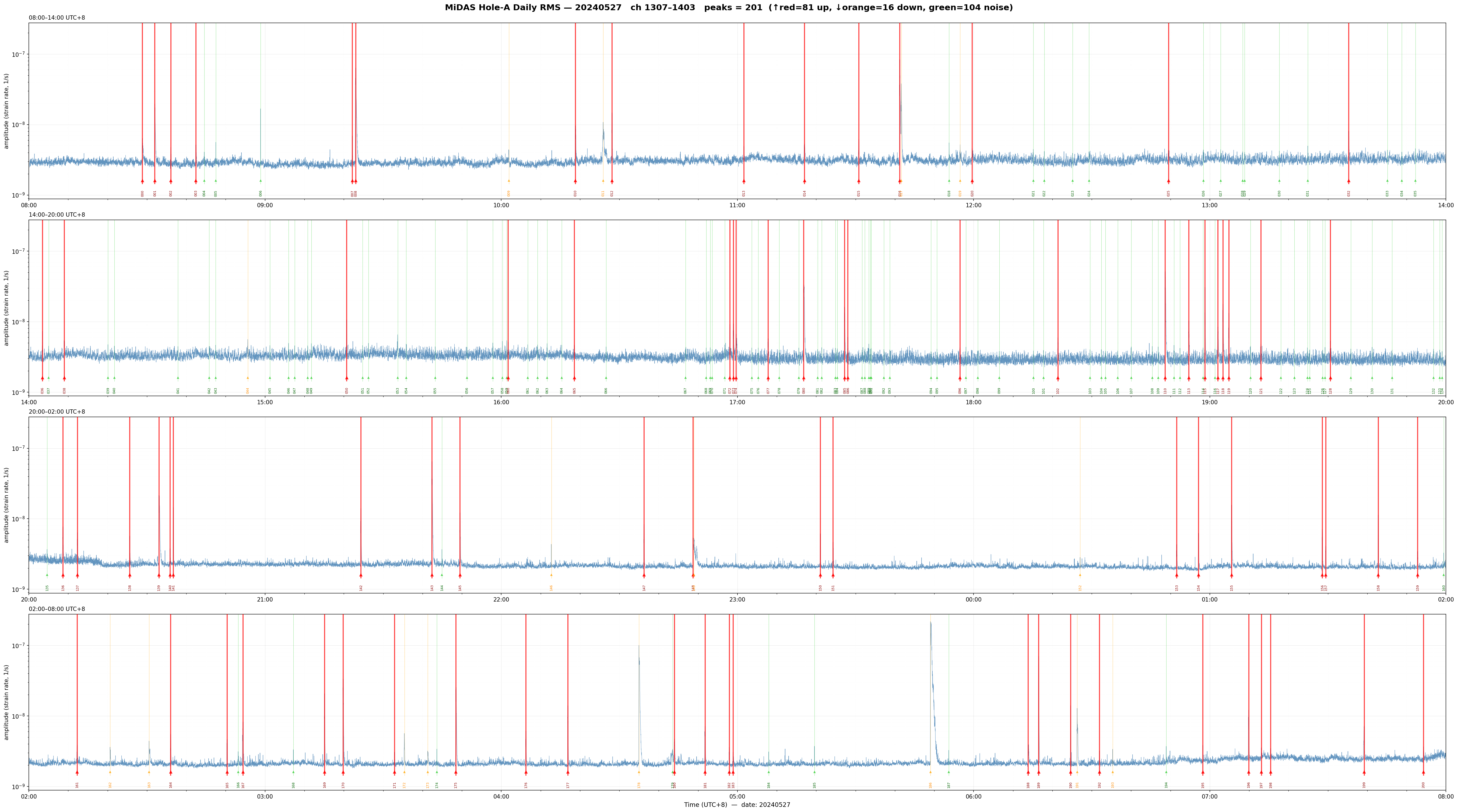

點擊上圖的紅色 up 事件以顯示 waterfall plot。

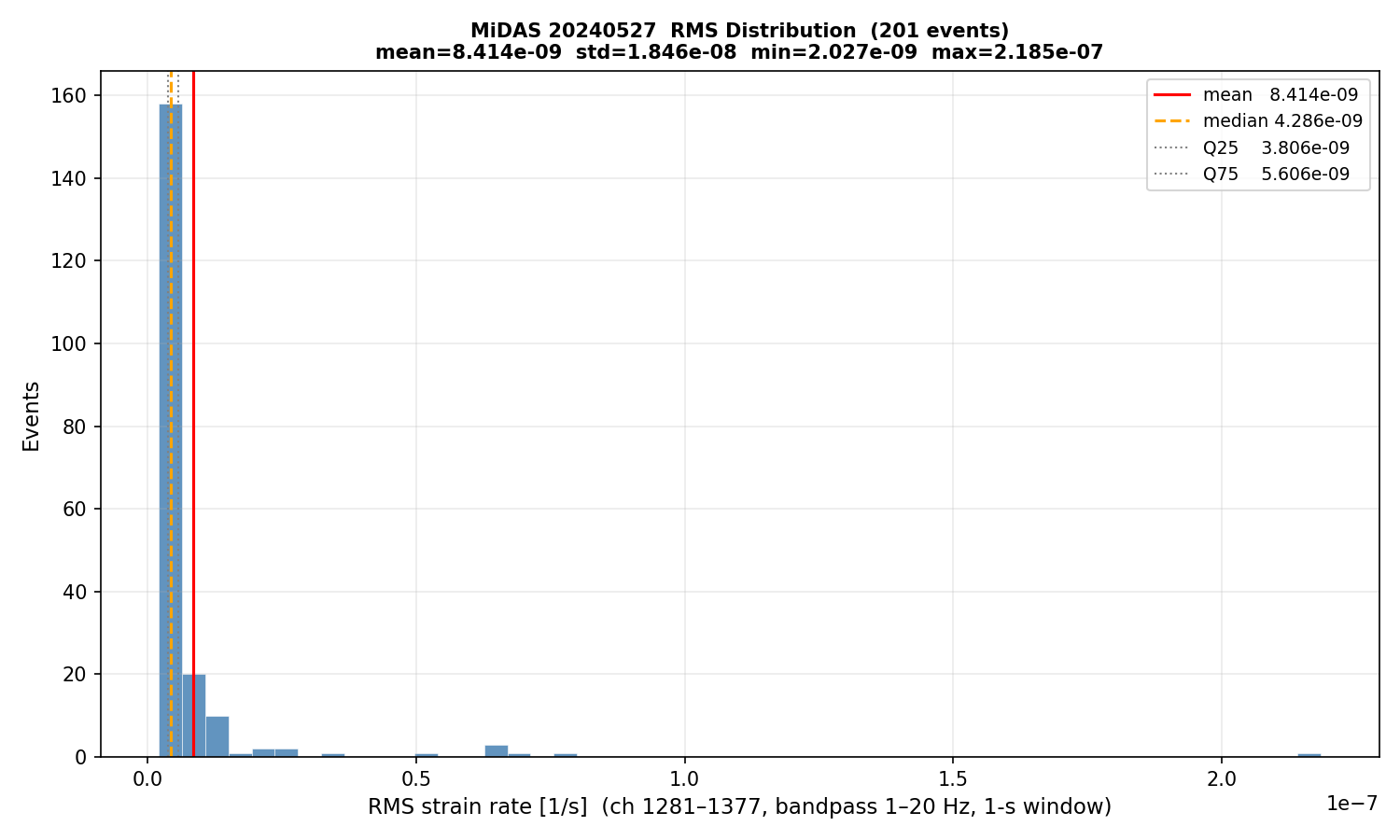

MiDAS Daily RMS peaks — 20240527 Total: 201 events [RMS_below300m 欄位說明] 來源 : 2024 backfill nc（100Hz decimated，Hole A trace 1307–1403，跳過頂部 73 ch，對應深度 ~300–700 m） 前處理: per-file bad-channel masking(median+10×MAD) → bandpass 1–20 Hz（sosfiltfilt，逐檔獨立，非跨檔 causal filter state） 公式 : sqrt( sum(x[ch,t]^2) / (97 ch × 100 samples) ) / DAS_SENSITIVITY 意義 : STA/LTA 偵測峰值那一秒，97 個 channel × 100 個取樣點的 RMS 振幅 單位 : strain rate (1/s)，已轉換為物理應變率（DAS_SENSITIVITY=7.0621e+08） 參考值: 典型背景 ~7.08e-10–2.83e-09，大地震 > 1.13e-08 RMS stats mean=8.414e-09 std=1.846e-08 min=2.027e-09 Q25=3.806e-09 median=4.286e-09 Q75=5.606e-09 max=2.185e-07 ID timestamp_tw (UTC+8) RMS_below300m fk_label CWA ------------------------------------------------------------------ 000 2024-05-27 08:28:52 5.871e-09 up 0 001 2024-05-27 08:32:01 1.959e-08 up 0 002 2024-05-27 08:36:04 3.691e-09 up 0 003 2024-05-27 08:42:25 4.954e-09 up 0 004 2024-05-27 08:44:34 3.485e-09 noise 0 005 2024-05-27 08:47:29 5.606e-09 noise 0 006 2024-05-27 08:58:53 3.595e-09 noise 0 007 2024-05-27 09:22:12 4.923e-09 up 0 008 2024-05-27 09:23:03 6.362e-08 up 0 009 2024-05-27 10:01:57 4.286e-09 down 0 010 2024-05-27 10:18:50 7.111e-09 up 0 011 2024-05-27 10:25:54 9.870e-09 down 0 012 2024-05-27 10:28:09 1.274e-08 up 0 013 2024-05-27 11:01:39 3.829e-09 up 0 014 2024-05-27 11:17:04 5.255e-09 up 0 015 2024-05-27 11:30:50 5.635e-09 up 0 016 2024-05-27 11:41:15 7.655e-08 up 0 017 2024-05-27 11:41:38 3.251e-08 down 0 018 2024-05-27 11:53:47 4.886e-09 noise 0 019 2024-05-27 11:56:35 5.186e-09 down 0 020 2024-05-27 11:59:39 4.379e-09 up 0 021 2024-05-27 12:15:11 4.198e-09 noise 0 022 2024-05-27 12:17:57 4.164e-09 noise 0 023 2024-05-27 12:25:09 3.751e-09 noise 0 024 2024-05-27 12:29:20 4.131e-09 noise 0 025 2024-05-27 12:49:32 4.364e-09 up 0 026 2024-05-27 12:58:23 3.568e-09 noise 0 027 2024-05-27 13:02:46 4.421e-09 noise 0 028 2024-05-27 13:08:20 4.117e-09 noise 0 029 2024-05-27 13:08:51 4.074e-09 noise 0 030 2024-05-27 13:17:40 4.226e-09 noise 0 031 2024-05-27 13:24:53 4.968e-09 noise 0 032 2024-05-27 13:35:18 7.522e-09 up 0 033 2024-05-27 13:45:07 4.286e-09 noise 0 034 2024-05-27 13:48:46 4.090e-09 noise 0 035 2024-05-27 13:52:13 4.556e-09 noise 0 036 2024-05-27 14:03:28 5.717e-09 up 0 037 2024-05-27 14:05:01 4.509e-09 noise 0 038 2024-05-27 14:09:02 5.305e-09 up 0 039 2024-05-27 14:20:06 4.737e-09 noise 0 040 2024-05-27 14:21:44 4.518e-09 noise 0 041 2024-05-27 14:37:53 4.452e-09 noise 0 042 2024-05-27 14:45:49 4.477e-09 noise 0 043 2024-05-27 14:47:28 4.357e-09 noise 0 044 2024-05-27 14:55:37 5.177e-09 down 0 045 2024-05-27 15:01:14 4.240e-09 noise 0 046 2024-05-27 15:05:59 4.952e-09 noise 0 047 2024-05-27 15:07:32 4.568e-09 noise 0 048 2024-05-27 15:10:50 4.563e-09 noise 0 049 2024-05-27 15:11:46 4.137e-09 noise 0 050 2024-05-27 15:20:46 7.626e-09 up 0 051 2024-05-27 15:24:48 4.142e-09 noise 0 052 2024-05-27 15:26:16 4.942e-09 noise 0 053 2024-05-27 15:33:42 6.134e-09 noise 0 054 2024-05-27 15:35:52 4.560e-09 noise 0 055 2024-05-27 15:43:14 4.419e-09 noise 0 056 2024-05-27 15:51:18 4.213e-09 noise 0 057 2024-05-27 15:57:52 5.005e-09 noise 0 058 2024-05-27 16:00:18 3.986e-09 noise 0 059 2024-05-27 16:01:24 4.095e-09 noise 0 060 2024-05-27 16:01:47 4.996e-09 up 0 061 2024-05-27 16:06:44 3.965e-09 noise 0 062 2024-05-27 16:09:14 4.701e-09 noise 0 063 2024-05-27 16:11:39 4.054e-09 noise 0 064 2024-05-27 16:15:22 4.667e-09 noise 0 065 2024-05-27 16:18:36 4.567e-09 up 0 066 2024-05-27 16:26:38 4.349e-09 noise 0 067 2024-05-27 16:46:49 4.131e-09 noise 0 068 2024-05-27 16:52:03 4.246e-09 noise 0 069 2024-05-27 16:53:05 4.275e-09 noise 0 070 2024-05-27 16:53:34 4.033e-09 noise 0 071 2024-05-27 16:56:46 4.411e-09 noise 0 072 2024-05-27 16:58:04 9.106e-09 up 0 073 2024-05-27 16:59:01 8.985e-09 up 0 074 2024-05-27 16:59:40 6.647e-09 up 0 075 2024-05-27 17:03:40 3.601e-09 noise 0 076 2024-05-27 17:05:18 4.246e-09 noise 0 077 2024-05-27 17:07:49 5.760e-09 up 0 078 2024-05-27 17:10:37 3.954e-09 noise 0 079 2024-05-27 17:15:36 4.101e-09 noise 0 080 2024-05-27 17:16:51 2.575e-08 up 0 081 2024-05-27 17:20:23 3.993e-09 noise 0 082 2024-05-27 17:21:25 4.296e-09 noise 0 083 2024-05-27 17:24:53 4.215e-09 noise 0 084 2024-05-27 17:25:22 4.058e-09 noise 0 085 2024-05-27 17:27:15 1.327e-08 up 0 086 2024-05-27 17:28:04 5.521e-09 up 0 087 2024-05-27 17:31:39 3.783e-09 noise 0 088 2024-05-27 17:32:22 4.032e-09 noise 0 089 2024-05-27 17:33:24 4.266e-09 noise 0 090 2024-05-27 17:33:48 3.926e-09 noise 0 091 2024-05-27 17:34:01 4.191e-09 noise 0 092 2024-05-27 17:37:12 4.007e-09 noise 0 093 2024-05-27 17:38:43 3.991e-09 noise 0 094 2024-05-27 17:49:11 3.753e-09 noise 0 095 2024-05-27 17:50:42 4.086e-09 noise 0 096 2024-05-27 17:56:32 3.863e-09 up 0 097 2024-05-27 17:58:02 4.361e-09 noise 0 098 2024-05-27 18:01:04 3.783e-09 noise 0 099 2024-05-27 18:06:31 3.806e-09 noise 0 100 2024-05-27 18:15:12 3.669e-09 noise 0 101 2024-05-27 18:17:46 3.550e-09 noise 0 102 2024-05-27 18:21:25 5.666e-09 up 0 103 2024-05-27 18:29:34 3.779e-09 noise 0 104 2024-05-27 18:32:28 3.354e-09 noise 0 105 2024-05-27 18:33:30 3.754e-09 noise 0 106 2024-05-27 18:36:36 3.567e-09 noise 0 107 2024-05-27 18:40:03 4.402e-09 noise 0 108 2024-05-27 18:45:24 3.770e-09 noise 0 109 2024-05-27 18:46:54 3.819e-09 noise 0 110 2024-05-27 18:48:40 5.136e-08 up 0 111 2024-05-27 18:50:55 3.653e-09 noise 0 112 2024-05-27 18:52:26 3.489e-09 noise 0 113 2024-05-27 18:54:41 9.215e-09 up 0 114 2024-05-27 18:58:17 4.014e-09 noise 0 115 2024-05-27 18:58:48 1.852e-08 up 0 116 2024-05-27 19:01:19 3.644e-09 noise 0 117 2024-05-27 19:02:05 7.769e-09 up 0 118 2024-05-27 19:03:21 1.491e-08 up 0 119 2024-05-27 19:04:51 8.937e-09 up 0 120 2024-05-27 19:10:21 4.506e-09 noise 0 121 2024-05-27 19:12:59 4.258e-09 up 0 122 2024-05-27 19:18:03 3.677e-09 noise 0 123 2024-05-27 19:21:30 3.821e-09 noise 0 124 2024-05-27 19:24:48 3.706e-09 noise 0 125 2024-05-27 19:25:22 3.931e-09 noise 0 126 2024-05-27 19:28:39 3.958e-09 noise 0 127 2024-05-27 19:29:16 4.324e-09 noise 0 128 2024-05-27 19:30:40 4.243e-09 up 0 129 2024-05-27 19:35:49 4.103e-09 noise 0 130 2024-05-27 19:41:14 4.348e-09 noise 0 131 2024-05-27 19:46:19 3.971e-09 noise 0 132 2024-05-27 19:56:50 4.089e-09 noise 0 133 2024-05-27 19:58:24 3.976e-09 noise 0 134 2024-05-27 19:59:01 3.787e-09 noise 0 135 2024-05-27 20:04:38 3.367e-09 noise 0 136 2024-05-27 20:08:41 7.687e-09 up 0 137 2024-05-27 20:12:21 4.438e-09 up 0 138 2024-05-27 20:25:39 3.985e-09 up 0 139 2024-05-27 20:33:03 1.415e-08 up 0 140 2024-05-27 20:35:54 2.857e-09 up 0 141 2024-05-27 20:36:42 1.449e-08 up 0 142 2024-05-27 21:24:21 1.112e-08 up 0 143 2024-05-27 21:42:25 6.501e-08 up 0 144 2024-05-27 21:44:55 3.674e-09 noise 0 145 2024-05-27 21:49:33 1.112e-08 up 0 146 2024-05-27 22:12:44 2.260e-09 down 0 147 2024-05-27 22:36:17 6.683e-09 up 0 148 2024-05-27 22:48:45 4.623e-09 up 0 149 2024-05-27 22:48:58 5.158e-09 down 0 150 2024-05-27 23:21:05 4.969e-09 up 0 151 2024-05-27 23:24:18 4.654e-09 up 0 152 2024-05-28 00:27:03 2.840e-09 down 0 153 2024-05-28 00:51:36 4.325e-09 up 0 154 2024-05-28 00:57:09 5.437e-09 up 0 155 2024-05-28 01:05:33 1.066e-08 up 0 156 2024-05-28 01:28:34 6.456e-09 up 0 157 2024-05-28 01:29:27 4.023e-09 up 0 158 2024-05-28 01:42:47 7.832e-09 up 0 159 2024-05-28 01:52:48 3.157e-09 up 0 160 2024-05-28 01:59:24 3.285e-09 noise 0 161 2024-05-28 02:12:16 3.828e-09 up 0 162 2024-05-28 02:20:39 3.125e-09 down 0 163 2024-05-28 02:30:32 4.403e-09 down 0 164 2024-05-28 02:36:03 5.486e-09 up 0 165 2024-05-28 02:50:23 3.706e-09 up 0 166 2024-05-28 02:53:11 2.422e-09 noise 0 167 2024-05-28 02:54:25 8.212e-09 up 0 168 2024-05-28 03:07:12 3.322e-09 noise 0 169 2024-05-28 03:15:08 1.353e-08 up 0 170 2024-05-28 03:19:51 2.799e-08 up 0 171 2024-05-28 03:32:54 3.057e-09 up 0 172 2024-05-28 03:35:24 5.035e-09 down 0 173 2024-05-28 03:41:20 3.007e-09 down 0 174 2024-05-28 03:43:39 3.393e-09 noise 0 175 2024-05-28 03:48:28 2.004e-08 up 0 176 2024-05-28 04:06:18 5.813e-09 up 0 177 2024-05-28 04:16:56 1.204e-08 up 0 178 2024-05-28 04:34:59 6.284e-08 down 0 179 2024-05-28 04:43:32 3.218e-09 noise 0 180 2024-05-28 04:44:00 4.344e-09 up 0 181 2024-05-28 04:51:47 7.120e-09 up 0 182 2024-05-28 04:57:56 3.410e-09 up 0 183 2024-05-28 04:58:54 2.630e-09 up 0 184 2024-05-28 05:07:57 2.216e-09 noise 0 185 2024-05-28 05:19:35 2.027e-09 noise 0 186 2024-05-28 05:49:03 2.185e-07 down 0 187 2024-05-28 05:53:41 2.425e-09 noise 0 188 2024-05-28 06:13:53 3.324e-09 up 0 189 2024-05-28 06:16:33 6.998e-08 up 0 190 2024-05-28 06:24:39 6.395e-09 up 0 191 2024-05-28 06:26:19 1.117e-08 down 0 192 2024-05-28 06:31:59 3.214e-09 up 0 193 2024-05-28 06:35:20 2.359e-09 down 0 194 2024-05-28 06:48:56 2.634e-09 noise 0 195 2024-05-28 06:58:15 2.929e-09 up 0 196 2024-05-28 07:09:53 1.029e-08 up 0 197 2024-05-28 07:13:06 3.555e-09 up 0 198 2024-05-28 07:15:28 3.465e-09 up 0 199 2024-05-28 07:39:13 7.203e-09 up 0 200 2024-05-28 07:54:17 3.151e-09 up 0
