| 日期 (UTC) | 20260823 |
|---|---|
| 事件總數 | 343 |
| ↑ up (紅) | 25 |
| ↓ down (橘) | 21 |
| 共模噪音 (綠) | 296 |
| noise_large (洋紅) | 1 |
| CWA 地震 (紫★) | 0 |
| RMS max | 0.000 |
| RMS median | 0.000 |
| RMS mean | 0.000 |
互動版（24 條小時線）：點圖例中的小時色塊 → 該小時線變明顯、其餘變半透明；再點一次還原。

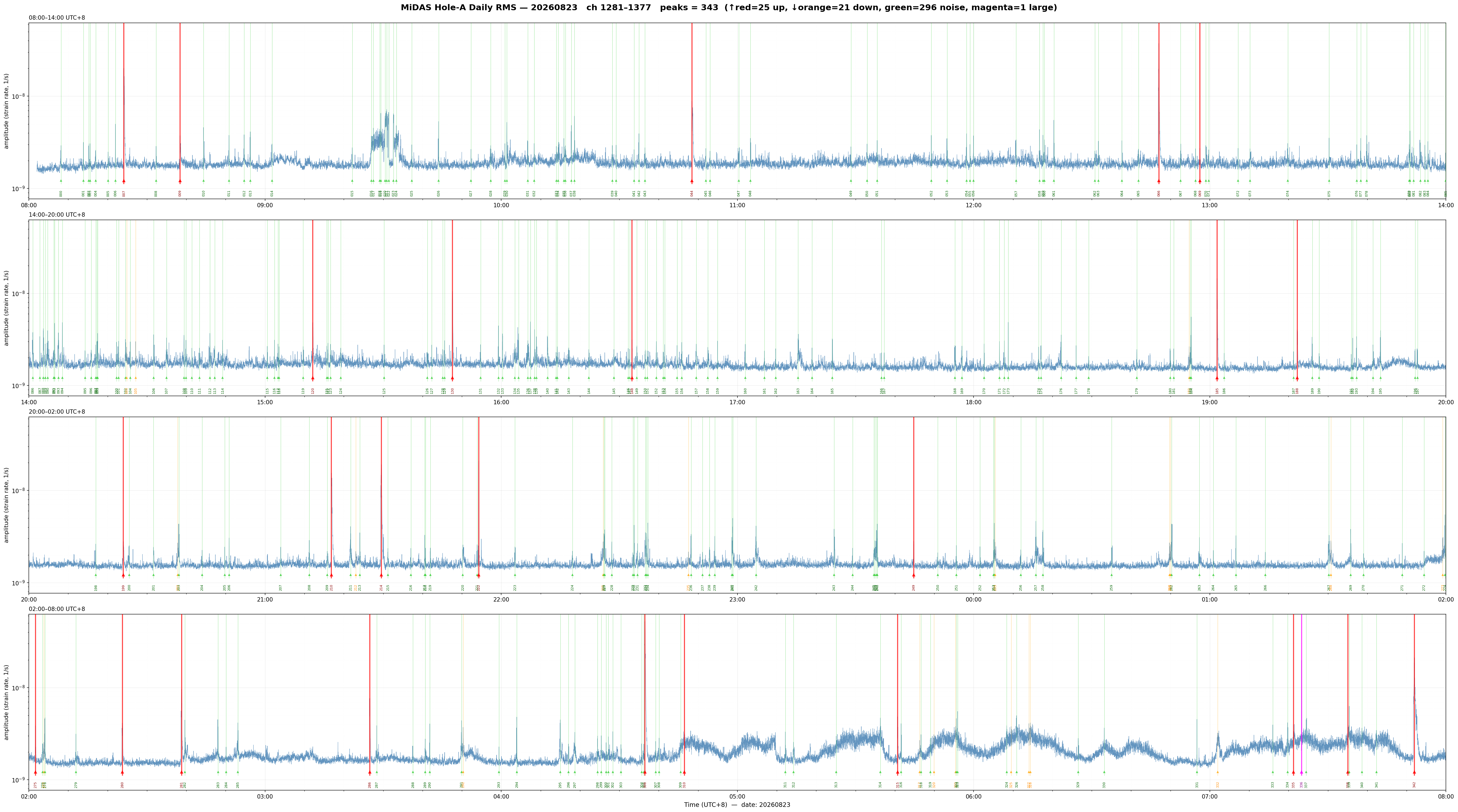

點擊上圖的紅色 up 事件以顯示 waterfall plot。

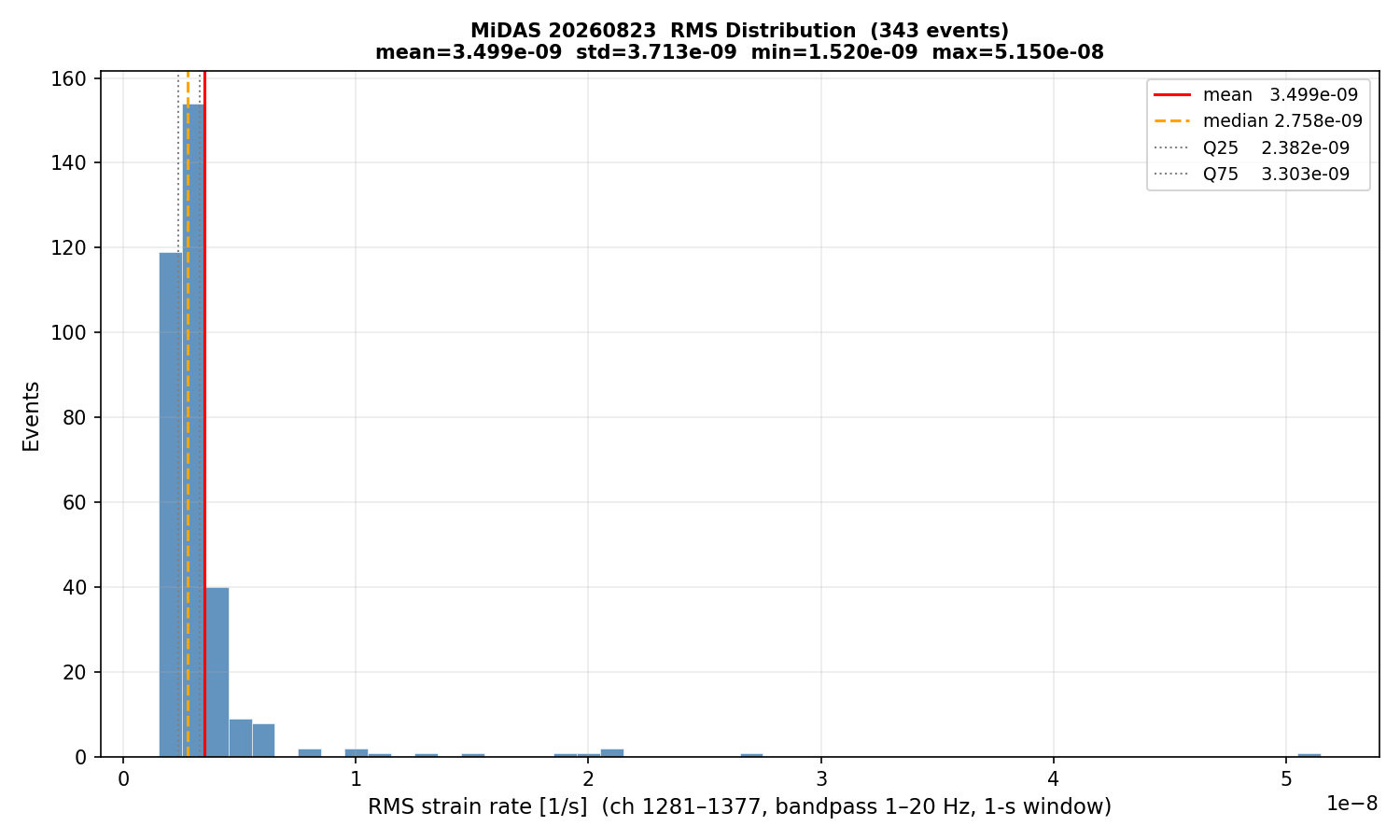

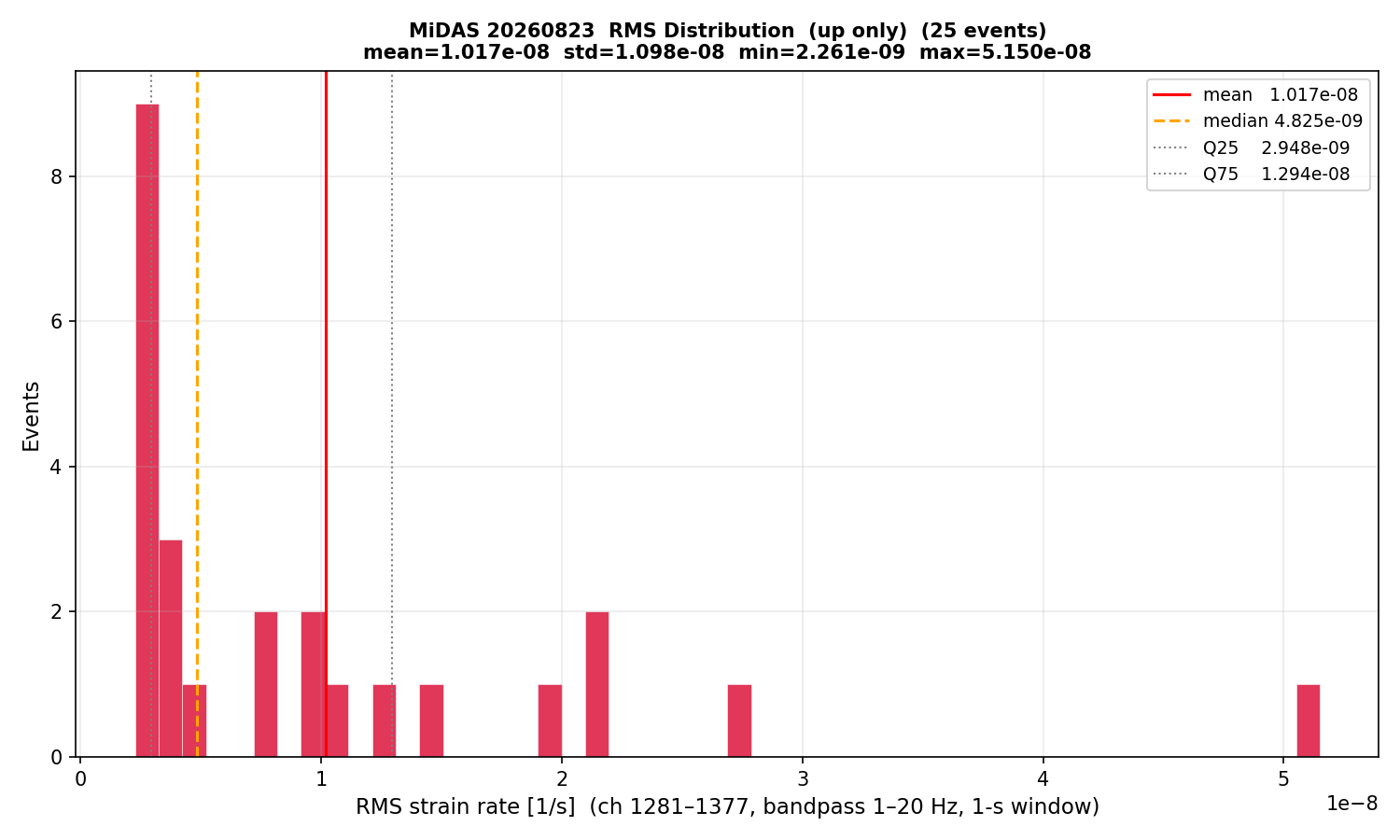

MiDAS Daily RMS peaks — 20260823 Total: 343 events [RMS_below300m 欄位說明] 來源 : TDMS ch 1281–1377（Hole A 下行段，跳過頂部 73 ch，對應深度 ~300–700 m） 前處理: demean → bandpass 1–20 Hz（causal sosfilt，跨檔保留 filter state） 公式 : sqrt( sum(x[ch,t]^2) / (97 ch × 1000 samples) ) / DAS_SENSITIVITY 意義 : STA/LTA 偵測峰值那一秒，97 個 channel × 1000 個取樣點的 RMS 振幅 單位 : strain rate (1/s)，已轉換為物理應變率（DAS_SENSITIVITY=7.0621e+08） 參考值: 典型背景 ~7.08e-10–2.83e-09，大地震 > 1.13e-08 RMS stats mean=3.499e-09 std=3.713e-09 min=1.520e-09 Q25=2.382e-09 median=2.758e-09 Q75=3.303e-09 max=5.150e-08 ID timestamp_tw (UTC+8) RMS_below300m fk_label CWA ------------------------------------------------------------------ 000 2026-08-23 08:08:10 2.917e-09 noise 0 001 2026-08-23 08:13:52 3.163e-09 noise 0 002 2026-08-23 08:15:12 1.926e-09 noise 0 003 2026-08-23 08:15:34 2.163e-09 noise 0 004 2026-08-23 08:16:59 2.334e-09 noise 0 005 2026-08-23 08:20:08 2.313e-09 noise 0 006 2026-08-23 08:22:00 3.933e-09 noise 0 007 2026-08-23 08:24:08 1.294e-08 up 0 008 2026-08-23 08:32:20 2.309e-09 noise 0 009 2026-08-23 08:38:25 2.880e-09 up 0 010 2026-08-23 08:44:23 3.191e-09 noise 0 011 2026-08-23 08:50:51 2.996e-09 noise 0 012 2026-08-23 08:54:42 3.295e-09 noise 0 013 2026-08-23 08:56:16 3.506e-09 noise 0 014 2026-08-23 09:01:47 2.734e-09 noise 0 015 2026-08-23 09:22:09 2.673e-09 noise 0 016 2026-08-23 09:27:00 2.965e-09 noise 0 017 2026-08-23 09:27:32 4.117e-09 noise 0 018 2026-08-23 09:29:07 4.389e-09 noise 0 019 2026-08-23 09:29:26 4.328e-09 noise 0 020 2026-08-23 09:30:29 6.110e-09 noise 0 021 2026-08-23 09:30:54 6.014e-09 noise 0 022 2026-08-23 09:31:27 6.294e-09 noise 0 023 2026-08-23 09:32:36 6.477e-09 noise 0 024 2026-08-23 09:33:21 4.420e-09 noise 0 025 2026-08-23 09:37:17 2.979e-09 noise 0 026 2026-08-23 09:44:05 5.332e-09 noise 0 027 2026-08-23 09:52:18 2.657e-09 noise 0 028 2026-08-23 09:57:20 2.918e-09 noise 0 029 2026-08-23 10:00:56 3.066e-09 noise 0 030 2026-08-23 10:01:26 5.218e-09 noise 0 031 2026-08-23 10:06:45 3.251e-09 noise 0 032 2026-08-23 10:08:22 2.459e-09 noise 0 033 2026-08-23 10:14:01 2.759e-09 noise 0 034 2026-08-23 10:14:28 2.755e-09 noise 0 035 2026-08-23 10:15:56 2.456e-09 noise 0 036 2026-08-23 10:16:18 2.905e-09 noise 0 037 2026-08-23 10:17:49 4.831e-09 noise 0 038 2026-08-23 10:18:36 6.098e-09 noise 0 039 2026-08-23 10:28:14 2.467e-09 noise 0 040 2026-08-23 10:29:11 2.952e-09 noise 0 041 2026-08-23 10:33:45 2.418e-09 noise 0 042 2026-08-23 10:35:00 2.467e-09 noise 0 043 2026-08-23 10:36:31 2.771e-09 noise 0 044 2026-08-23 10:48:26 7.835e-09 up 0 045 2026-08-23 10:51:59 2.305e-09 noise 0 046 2026-08-23 10:53:03 2.546e-09 noise 0 047 2026-08-23 11:00:21 2.542e-09 noise 0 048 2026-08-23 11:03:18 3.504e-09 noise 0 049 2026-08-23 11:28:50 2.546e-09 noise 0 050 2026-08-23 11:32:56 2.398e-09 noise 0 051 2026-08-23 11:35:30 3.322e-09 noise 0 052 2026-08-23 11:49:15 3.453e-09 noise 0 053 2026-08-23 11:53:15 3.208e-09 noise 0 054 2026-08-23 11:58:13 3.931e-09 noise 0 055 2026-08-23 11:59:05 2.378e-09 noise 0 056 2026-08-23 11:59:58 3.728e-09 noise 0 057 2026-08-23 12:10:48 2.420e-09 noise 0 058 2026-08-23 12:16:45 2.953e-09 noise 0 059 2026-08-23 12:17:38 2.578e-09 noise 0 060 2026-08-23 12:17:59 3.375e-09 noise 0 061 2026-08-23 12:20:23 3.618e-09 noise 0 062 2026-08-23 12:30:48 2.358e-09 noise 0 063 2026-08-23 12:31:42 3.263e-09 noise 0 064 2026-08-23 12:37:40 3.296e-09 noise 0 065 2026-08-23 12:41:53 2.622e-09 noise 0 066 2026-08-23 12:47:03 2.738e-08 up 0 067 2026-08-23 12:52:34 2.565e-09 noise 0 068 2026-08-23 12:56:22 2.608e-09 noise 0 069 2026-08-23 12:57:29 2.725e-09 up 0 070 2026-08-23 12:59:00 2.308e-09 noise 0 071 2026-08-23 12:59:44 2.627e-09 noise 0 072 2026-08-23 13:07:10 2.725e-09 noise 0 073 2026-08-23 13:10:13 2.697e-09 noise 0 074 2026-08-23 13:19:48 2.439e-09 noise 0 075 2026-08-23 13:30:19 2.103e-09 noise 0 076 2026-08-23 13:37:20 2.989e-09 noise 0 077 2026-08-23 13:38:21 2.512e-09 noise 0 078 2026-08-23 13:39:52 2.688e-09 noise 0 079 2026-08-23 13:50:39 2.935e-09 noise 0 080 2026-08-23 13:50:52 3.300e-09 noise 0 081 2026-08-23 13:51:47 2.751e-09 noise 0 082 2026-08-23 13:53:30 2.673e-09 noise 0 083 2026-08-23 13:54:38 2.800e-09 noise 0 084 2026-08-23 13:55:24 3.233e-09 noise 0 085 2026-08-23 13:59:55 2.070e-09 noise 0 086 2026-08-23 14:01:01 3.362e-09 noise 0 087 2026-08-23 14:02:48 3.406e-09 noise 0 088 2026-08-23 14:03:40 3.939e-09 noise 0 089 2026-08-23 14:04:11 2.710e-09 noise 0 090 2026-08-23 14:04:48 2.443e-09 noise 0 091 2026-08-23 14:06:19 2.412e-09 noise 0 092 2026-08-23 14:06:33 3.692e-09 noise 0 093 2026-08-23 14:07:32 3.739e-09 noise 0 094 2026-08-23 14:08:31 4.058e-09 noise 0 095 2026-08-23 14:14:18 2.347e-09 noise 0 096 2026-08-23 14:15:51 2.278e-09 noise 0 097 2026-08-23 14:16:59 2.758e-09 noise 0 098 2026-08-23 14:17:16 2.989e-09 noise 0 099 2026-08-23 14:17:29 2.899e-09 noise 0 100 2026-08-23 14:22:17 2.041e-09 noise 0 101 2026-08-23 14:22:48 3.032e-09 noise 0 102 2026-08-23 14:24:33 2.951e-09 noise 0 103 2026-08-23 14:24:51 2.612e-09 down 0 104 2026-08-23 14:25:46 2.982e-09 noise 0 105 2026-08-23 14:27:09 2.488e-09 down 0 106 2026-08-23 14:31:42 3.562e-09 noise 0 107 2026-08-23 14:34:58 3.294e-09 noise 0 108 2026-08-23 14:39:25 3.459e-09 noise 0 109 2026-08-23 14:39:56 2.231e-09 noise 0 110 2026-08-23 14:41:24 2.545e-09 noise 0 111 2026-08-23 14:43:21 2.556e-09 noise 0 112 2026-08-23 14:46:00 2.924e-09 noise 0 113 2026-08-23 14:47:13 2.590e-09 noise 0 114 2026-08-23 14:49:12 2.251e-09 noise 0 115 2026-08-23 15:00:34 2.058e-09 noise 0 116 2026-08-23 15:02:23 3.111e-09 noise 0 117 2026-08-23 15:03:17 2.825e-09 noise 0 118 2026-08-23 15:03:34 2.073e-09 noise 0 119 2026-08-23 15:09:41 2.650e-09 noise 0 120 2026-08-23 15:12:08 4.825e-09 up 0 121 2026-08-23 15:15:42 2.682e-09 noise 0 122 2026-08-23 15:15:59 2.882e-09 noise 0 123 2026-08-23 15:16:39 2.495e-09 noise 0 124 2026-08-23 15:19:14 2.553e-09 noise 0 125 2026-08-23 15:30:15 2.114e-09 noise 0 126 2026-08-23 15:41:13 2.264e-09 noise 0 127 2026-08-23 15:42:22 1.920e-09 noise 0 128 2026-08-23 15:45:08 2.464e-09 noise 0 129 2026-08-23 15:45:37 2.383e-09 noise 0 130 2026-08-23 15:47:36 1.055e-08 up 0 131 2026-08-23 15:54:45 2.273e-09 noise 0 132 2026-08-23 15:59:19 3.157e-09 noise 0 133 2026-08-23 16:00:20 3.651e-09 noise 0 134 2026-08-23 16:03:27 2.565e-09 noise 0 135 2026-08-23 16:04:24 3.656e-09 noise 0 136 2026-08-23 16:06:46 3.078e-09 noise 0 137 2026-08-23 16:07:24 4.918e-09 noise 0 138 2026-08-23 16:08:29 4.060e-09 noise 0 139 2026-08-23 16:08:57 3.051e-09 noise 0 140 2026-08-23 16:11:47 2.912e-09 noise 0 141 2026-08-23 16:13:55 2.293e-09 noise 0 142 2026-08-23 16:14:15 2.385e-09 noise 0 143 2026-08-23 16:17:10 2.301e-09 noise 0 144 2026-08-23 16:22:15 2.356e-09 noise 0 145 2026-08-23 16:28:38 2.473e-09 noise 0 146 2026-08-23 16:32:15 2.529e-09 noise 0 147 2026-08-23 16:32:38 2.404e-09 noise 0 148 2026-08-23 16:33:14 2.948e-09 up 0 149 2026-08-23 16:34:26 2.610e-09 noise 0 150 2026-08-23 16:36:34 2.357e-09 noise 0 151 2026-08-23 16:37:06 2.382e-09 noise 0 152 2026-08-23 16:39:24 3.010e-09 noise 0 153 2026-08-23 16:41:09 2.258e-09 noise 0 154 2026-08-23 16:41:32 2.349e-09 noise 0 155 2026-08-23 16:44:40 1.912e-09 noise 0 156 2026-08-23 16:45:52 2.947e-09 noise 0 157 2026-08-23 16:49:32 2.816e-09 noise 0 158 2026-08-23 16:52:28 2.600e-09 noise 0 159 2026-08-23 16:54:56 3.044e-09 noise 0 160 2026-08-23 17:02:00 1.874e-09 noise 0 161 2026-08-23 17:06:52 2.374e-09 noise 0 162 2026-08-23 17:09:44 2.394e-09 noise 0 163 2026-08-23 17:15:24 3.227e-09 noise 0 164 2026-08-23 17:18:58 1.907e-09 noise 0 165 2026-08-23 17:24:06 3.223e-09 noise 0 166 2026-08-23 17:36:36 2.253e-09 noise 0 167 2026-08-23 17:37:17 2.271e-09 noise 0 168 2026-08-23 17:55:15 2.192e-09 noise 0 169 2026-08-23 17:57:02 2.684e-09 noise 0 170 2026-08-23 18:02:40 2.831e-09 noise 0 171 2026-08-23 18:06:34 3.013e-09 noise 0 172 2026-08-23 18:07:48 3.062e-09 noise 0 173 2026-08-23 18:08:47 2.795e-09 noise 0 174 2026-08-23 18:16:32 2.623e-09 noise 0 175 2026-08-23 18:17:08 2.552e-09 noise 0 176 2026-08-23 18:22:14 3.539e-09 noise 0 177 2026-08-23 18:26:03 1.996e-09 noise 0 178 2026-08-23 18:29:13 2.052e-09 noise 0 179 2026-08-23 18:41:27 2.458e-09 noise 0 180 2026-08-23 18:49:57 2.395e-09 noise 0 181 2026-08-23 18:50:51 2.509e-09 noise 0 182 2026-08-23 18:54:46 2.644e-09 down 0 183 2026-08-23 18:55:01 2.286e-09 noise 0 184 2026-08-23 18:55:16 5.547e-09 noise 0 185 2026-08-23 19:01:50 9.859e-09 up 0 186 2026-08-23 19:03:39 2.244e-09 noise 0 187 2026-08-23 19:21:17 1.931e-09 noise 0 188 2026-08-23 19:22:12 3.794e-09 up 0 189 2026-08-23 19:26:02 2.830e-09 noise 0 190 2026-08-23 19:27:45 2.233e-09 noise 0 191 2026-08-23 19:35:56 1.876e-09 noise 0 192 2026-08-23 19:36:18 3.274e-09 noise 0 193 2026-08-23 19:37:18 3.104e-09 noise 0 194 2026-08-23 19:41:28 2.465e-09 noise 0 195 2026-08-23 19:43:23 3.946e-09 noise 0 196 2026-08-23 19:52:09 2.087e-09 noise 0 197 2026-08-23 19:52:46 2.337e-09 noise 0 198 2026-08-23 20:17:00 2.016e-09 noise 0 199 2026-08-23 20:24:00 2.791e-09 up 0 200 2026-08-23 20:25:30 2.522e-09 noise 0 201 2026-08-23 20:31:40 2.430e-09 noise 0 202 2026-08-23 20:37:49 2.269e-09 down 0 203 2026-08-23 20:38:07 4.326e-09 noise 0 204 2026-08-23 20:44:01 1.933e-09 noise 0 205 2026-08-23 20:49:46 1.873e-09 noise 0 206 2026-08-23 20:50:53 3.058e-09 noise 0 207 2026-08-23 21:03:59 2.433e-09 noise 0 208 2026-08-23 21:11:15 1.802e-09 noise 0 209 2026-08-23 21:15:48 2.189e-09 noise 0 210 2026-08-23 21:16:52 1.493e-08 up 0 211 2026-08-23 21:21:44 2.188e-09 noise 0 212 2026-08-23 21:23:04 2.033e-09 down 0 213 2026-08-23 21:24:05 3.346e-09 noise 0 214 2026-08-23 21:29:32 1.912e-08 up 0 215 2026-08-23 21:31:13 2.358e-09 noise 0 216 2026-08-23 21:37:03 1.843e-09 noise 0 217 2026-08-23 21:40:34 3.286e-09 noise 0 218 2026-08-23 21:40:46 2.359e-09 noise 0 219 2026-08-23 21:42:00 2.381e-09 noise 0 220 2026-08-23 21:50:13 2.300e-09 noise 0 221 2026-08-23 21:53:52 2.585e-09 noise 0 222 2026-08-23 21:54:17 2.104e-08 up 0 223 2026-08-23 22:03:30 2.412e-09 noise 0 224 2026-08-23 22:18:05 2.200e-09 noise 0 225 2026-08-23 22:25:53 2.781e-09 down 0 226 2026-08-23 22:26:05 3.413e-09 noise 0 227 2026-08-23 22:26:18 3.171e-09 noise 0 228 2026-08-23 22:28:06 2.779e-09 noise 0 229 2026-08-23 22:33:27 2.115e-09 noise 0 230 2026-08-23 22:33:46 2.553e-09 noise 0 231 2026-08-23 22:34:37 2.662e-09 noise 0 232 2026-08-23 22:36:38 3.496e-09 noise 0 233 2026-08-23 22:36:53 3.112e-09 noise 0 234 2026-08-23 22:37:16 3.745e-09 noise 0 235 2026-08-23 22:47:34 2.034e-09 down 0 236 2026-08-23 22:48:15 3.236e-09 noise 0 237 2026-08-23 22:51:08 2.148e-09 noise 0 238 2026-08-23 22:52:53 2.239e-09 noise 0 239 2026-08-23 22:54:15 2.195e-09 noise 0 240 2026-08-23 22:58:35 3.116e-09 noise 0 241 2026-08-23 22:58:49 3.970e-09 noise 0 242 2026-08-23 23:04:45 2.556e-09 noise 0 243 2026-08-23 23:24:33 3.815e-09 noise 0 244 2026-08-23 23:29:16 1.875e-09 noise 0 245 2026-08-23 23:34:40 2.268e-09 noise 0 246 2026-08-23 23:34:56 2.849e-09 noise 0 247 2026-08-23 23:35:20 2.128e-09 noise 0 248 2026-08-23 23:35:32 3.493e-09 noise 0 249 2026-08-23 23:44:47 2.547e-09 up 0 250 2026-08-23 23:50:54 2.114e-09 noise 0 251 2026-08-23 23:55:37 2.537e-09 noise 0 252 2026-08-24 00:01:38 1.757e-09 noise 0 253 2026-08-24 00:05:03 2.252e-09 noise 0 254 2026-08-24 00:05:15 4.426e-09 noise 0 255 2026-08-24 00:05:28 2.757e-09 down 0 256 2026-08-24 00:11:59 2.165e-09 noise 0 257 2026-08-24 00:15:49 3.487e-09 noise 0 258 2026-08-24 00:17:36 3.467e-09 noise 0 259 2026-08-24 00:35:03 2.390e-09 noise 0 260 2026-08-24 00:49:46 2.533e-09 down 0 261 2026-08-24 00:50:00 2.594e-09 down 0 262 2026-08-24 00:50:18 3.305e-09 noise 0 263 2026-08-24 00:57:22 3.095e-09 noise 0 264 2026-08-24 01:00:54 2.241e-09 noise 0 265 2026-08-24 01:06:39 3.242e-09 noise 0 266 2026-08-24 01:14:06 2.143e-09 noise 0 267 2026-08-24 01:30:14 2.818e-09 noise 0 268 2026-08-24 01:30:46 2.441e-09 down 0 269 2026-08-24 01:35:47 3.247e-09 noise 0 270 2026-08-24 01:39:03 2.071e-09 noise 0 271 2026-08-24 01:48:53 1.520e-09 noise 0 272 2026-08-24 01:54:26 2.199e-09 noise 0 273 2026-08-24 01:59:10 2.458e-09 down 0 274 2026-08-24 01:59:44 5.469e-09 noise 0 275 2026-08-24 02:01:41 2.261e-09 up 0 276 2026-08-24 02:03:29 2.411e-09 noise 0 277 2026-08-24 02:03:50 2.545e-09 down 0 278 2026-08-24 02:04:07 4.727e-09 noise 0 279 2026-08-24 02:11:58 3.143e-09 noise 0 280 2026-08-24 02:23:45 3.408e-09 up 0 281 2026-08-24 02:38:48 9.583e-09 up 0 282 2026-08-24 02:39:38 4.447e-09 noise 0 283 2026-08-24 02:48:05 3.659e-09 noise 0 284 2026-08-24 02:50:07 2.142e-09 noise 0 285 2026-08-24 02:53:05 4.145e-09 noise 0 286 2026-08-24 03:26:37 7.665e-09 up 0 287 2026-08-24 03:28:23 1.912e-09 noise 0 288 2026-08-24 03:37:34 2.325e-09 noise 0 289 2026-08-24 03:40:41 2.771e-09 noise 0 290 2026-08-24 03:41:51 4.050e-09 noise 0 291 2026-08-24 03:49:55 2.673e-09 noise 0 292 2026-08-24 03:50:19 2.765e-09 down 0 293 2026-08-24 03:59:25 2.278e-09 noise 0 294 2026-08-24 04:03:58 4.238e-09 noise 0 295 2026-08-24 04:15:00 2.818e-09 noise 0 296 2026-08-24 04:17:05 2.450e-09 noise 0 297 2026-08-24 04:18:41 3.280e-09 noise 0 298 2026-08-24 04:24:29 2.982e-09 noise 0 299 2026-08-24 04:25:24 3.007e-09 noise 0 300 2026-08-24 04:26:39 2.534e-09 noise 0 301 2026-08-24 04:27:13 2.931e-09 noise 0 302 2026-08-24 04:28:21 2.715e-09 noise 0 303 2026-08-24 04:30:25 2.416e-09 noise 0 304 2026-08-24 04:35:41 2.013e-09 noise 0 305 2026-08-24 04:36:14 2.072e-09 noise 0 306 2026-08-24 04:36:31 5.150e-08 up 0 307 2026-08-24 04:39:15 2.245e-09 noise 0 308 2026-08-24 04:40:06 2.840e-09 noise 0 309 2026-08-24 04:45:35 2.528e-09 noise 0 310 2026-08-24 04:46:31 3.183e-09 up 0 311 2026-08-24 05:12:10 1.948e-09 noise 0 312 2026-08-24 05:14:15 2.562e-09 noise 0 313 2026-08-24 05:25:05 2.965e-09 noise 0 314 2026-08-24 05:36:18 4.137e-09 noise 0 315 2026-08-24 05:40:42 3.228e-09 up 0 316 2026-08-24 05:41:34 4.067e-09 noise 0 317 2026-08-24 05:46:17 2.681e-09 down 0 318 2026-08-24 05:46:39 2.999e-09 noise 0 319 2026-08-24 05:49:01 2.828e-09 noise 0 320 2026-08-24 05:49:56 2.937e-09 down 0 321 2026-08-24 05:55:25 3.797e-09 down 0 322 2026-08-24 05:55:37 4.636e-09 noise 0 323 2026-08-24 05:55:56 5.521e-09 noise 0 324 2026-08-24 06:08:25 3.869e-09 noise 0 325 2026-08-24 06:09:31 3.781e-09 down 0 326 2026-08-24 06:10:56 4.305e-09 noise 0 327 2026-08-24 06:14:02 4.074e-09 down 0 328 2026-08-24 06:14:26 3.530e-09 down 0 329 2026-08-24 06:26:34 1.898e-09 noise 0 330 2026-08-24 06:33:11 2.404e-09 noise 0 331 2026-08-24 06:56:44 4.534e-09 noise 0 332 2026-08-24 07:02:00 2.779e-09 down 0 333 2026-08-24 07:16:00 3.946e-09 noise 0 334 2026-08-24 07:19:46 2.628e-09 noise 0 335 2026-08-24 07:21:15 2.820e-09 up 0 336 2026-08-24 07:23:18 1.982e-08 noise_large 0 337 2026-08-24 07:24:28 4.494e-09 noise 0 338 2026-08-24 07:35:03 3.259e-09 up 0 339 2026-08-24 07:35:25 6.288e-09 noise 0 340 2026-08-24 07:38:39 3.645e-09 noise 0 341 2026-08-24 07:42:20 3.010e-09 noise 0 342 2026-08-24 07:51:58 2.110e-08 up 0
