| 日期 (UTC) | 20260830 |
|---|---|
| 事件總數 | 281 |
| ↑ up (紅) | 22 |
| ↓ down (橘) | 16 |
| 共模噪音 (綠) | 243 |
| noise_large (洋紅) | 0 |
| CWA 地震 (紫★) | 1（M3.4 @23.14°N,120.58°E 深12.7km） |
| RMS max | 0.000 |
| RMS median | 0.000 |
| RMS mean | 0.000 |

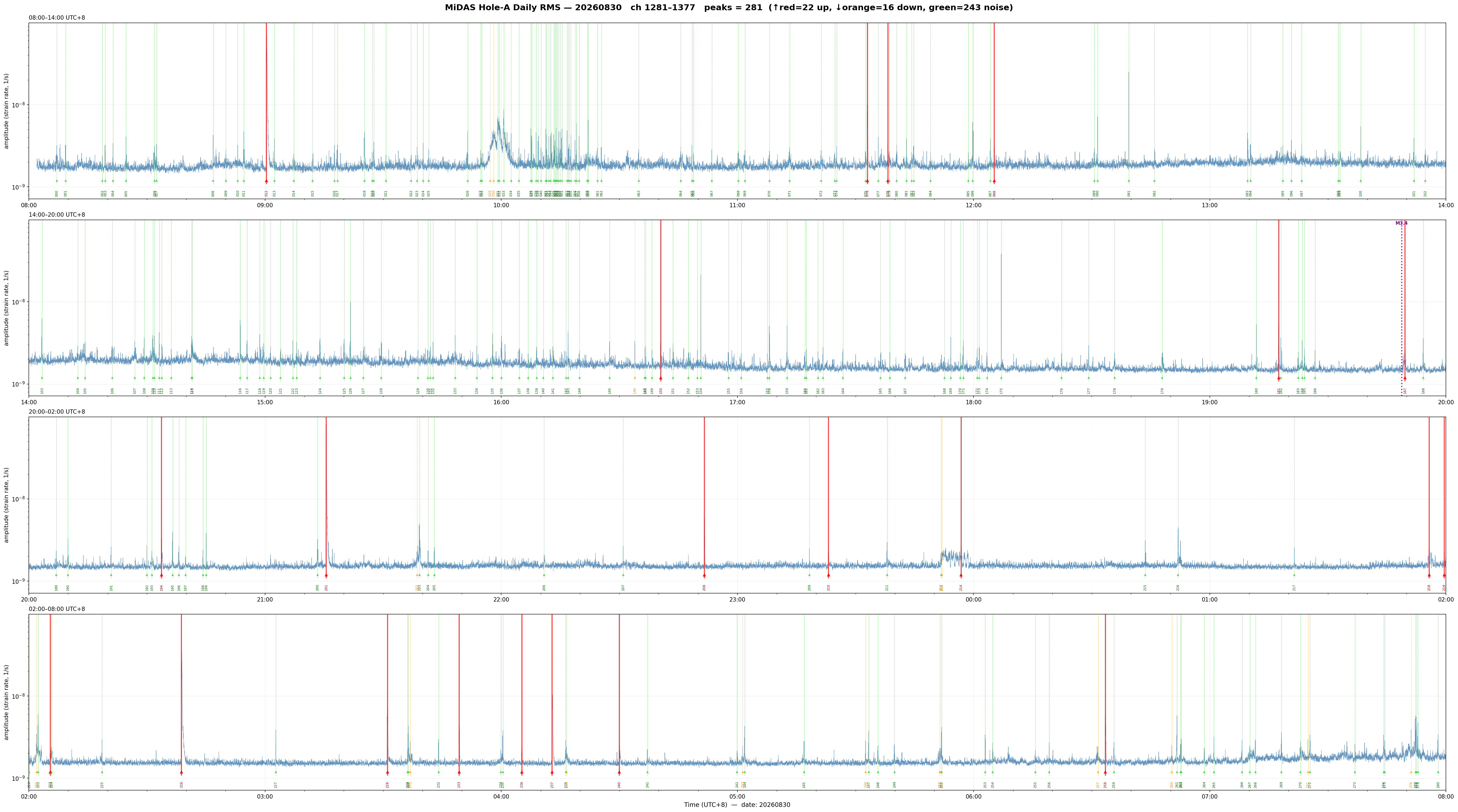

互動版（24 條小時線）：點圖例中的小時色塊 → 該小時線變明顯、其餘變半透明；再點一次還原。
點擊上圖的紅色 up 事件以顯示 waterfall plot。

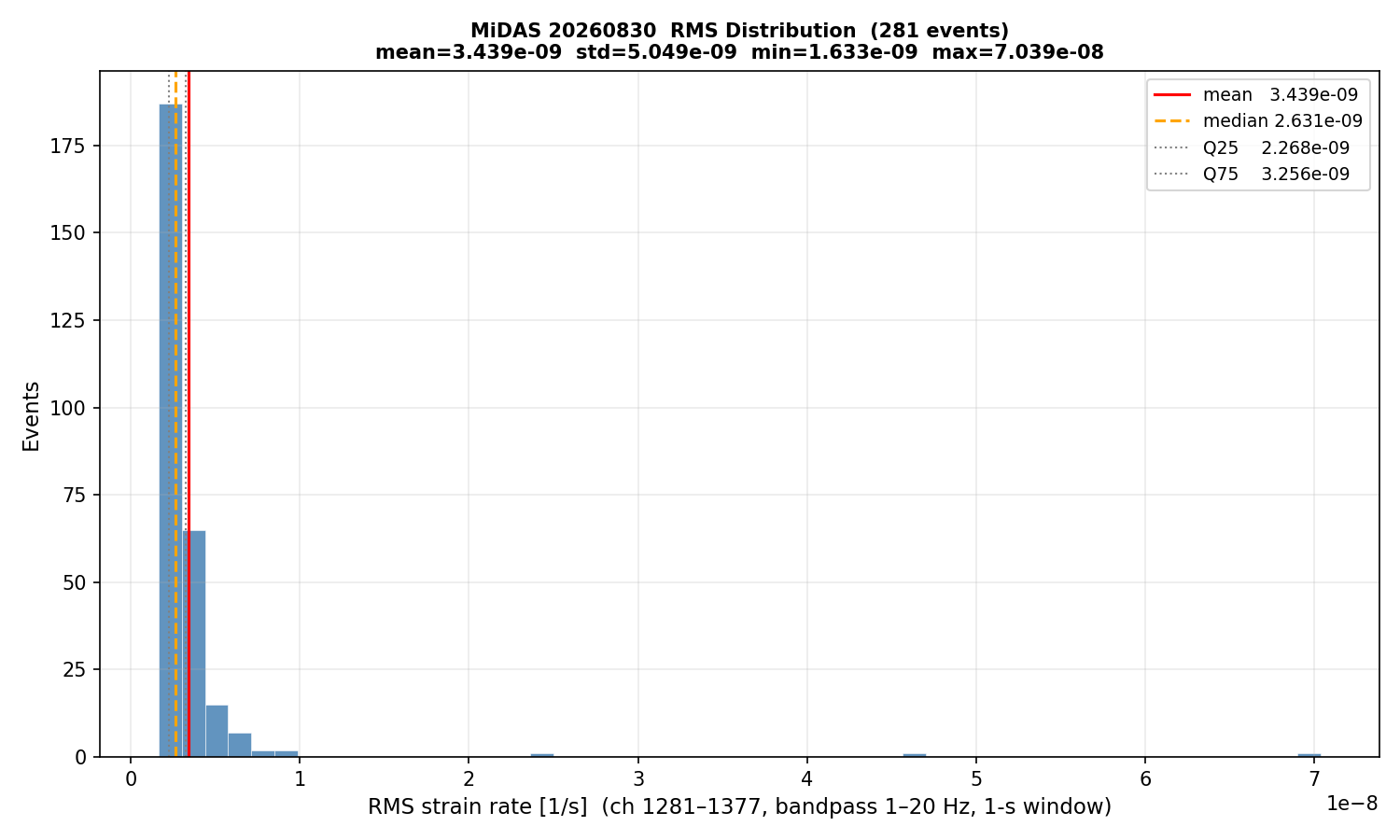

MiDAS Daily RMS peaks — 20260830 Total: 281 events [RMS_below300m 欄位說明] 來源 : TDMS ch 1281–1377（Hole A 下行段，跳過頂部 73 ch，對應深度 ~300–700 m） 前處理: demean → bandpass 1–20 Hz（causal sosfilt，跨檔保留 filter state） 公式 : sqrt( sum(x[ch,t]^2) / (97 ch × 1000 samples) ) / DAS_SENSITIVITY 意義 : STA/LTA 偵測峰值那一秒，97 個 channel × 1000 個取樣點的 RMS 振幅 單位 : strain rate (1/s)，已轉換為物理應變率（DAS_SENSITIVITY=7.0621e+08） 參考值: 典型背景 ~7.08e-10–2.83e-09，大地震 > 1.13e-08 RMS stats mean=3.439e-09 std=5.049e-09 min=1.633e-09 Q25=2.268e-09 median=2.631e-09 Q75=3.256e-09 max=7.039e-08 ID timestamp_tw (UTC+8) RMS_below300m fk_label CWA ------------------------------------------------------------------ 000 2026-08-30 08:07:06 2.145e-09 noise 0 001 2026-08-30 08:09:21 3.215e-09 noise 0 002 2026-08-30 08:18:40 2.139e-09 noise 0 003 2026-08-30 08:19:25 2.365e-09 noise 0 004 2026-08-30 08:21:22 3.392e-09 noise 0 005 2026-08-30 08:24:42 2.062e-09 noise 0 006 2026-08-30 08:31:56 2.898e-09 noise 0 007 2026-08-30 08:32:28 3.307e-09 noise 0 008 2026-08-30 08:46:49 4.263e-09 noise 0 009 2026-08-30 08:50:04 2.834e-09 noise 0 010 2026-08-30 08:53:04 2.176e-09 noise 0 011 2026-08-30 08:54:37 2.304e-09 noise 0 012 2026-08-30 09:00:21 4.570e-08 up 0 013 2026-08-30 09:02:23 2.800e-09 noise 0 014 2026-08-30 09:07:19 2.228e-09 noise 0 015 2026-08-30 09:12:05 2.200e-09 noise 0 016 2026-08-30 09:17:39 3.215e-09 noise 0 017 2026-08-30 09:18:25 2.530e-09 noise 0 018 2026-08-30 09:25:16 4.629e-09 noise 0 019 2026-08-30 09:27:15 2.055e-09 noise 0 020 2026-08-30 09:27:37 3.510e-09 noise 0 021 2026-08-30 09:30:43 2.442e-09 noise 0 022 2026-08-30 09:37:06 2.331e-09 noise 0 023 2026-08-30 09:38:37 3.044e-09 noise 0 024 2026-08-30 09:40:10 3.411e-09 noise 0 025 2026-08-30 09:41:35 2.467e-09 noise 0 026 2026-08-30 09:51:29 2.384e-09 noise 0 027 2026-08-30 09:54:46 2.467e-09 noise 0 028 2026-08-30 09:55:05 2.490e-09 noise 0 029 2026-08-30 09:57:10 3.080e-09 down 0 030 2026-08-30 09:58:03 4.639e-09 down 0 031 2026-08-30 09:59:11 7.224e-09 noise 0 032 2026-08-30 09:59:32 6.887e-09 noise 0 033 2026-08-30 10:00:39 7.932e-09 noise 0 034 2026-08-30 10:02:31 4.466e-09 noise 0 035 2026-08-30 10:04:29 2.952e-09 noise 0 036 2026-08-30 10:07:31 5.120e-09 noise 0 037 2026-08-30 10:07:47 2.795e-09 noise 0 038 2026-08-30 10:08:52 2.671e-09 noise 0 039 2026-08-30 10:09:19 2.604e-09 noise 0 040 2026-08-30 10:10:07 2.020e-09 noise 0 041 2026-08-30 10:11:18 3.011e-09 noise 0 042 2026-08-30 10:11:34 3.054e-09 noise 0 043 2026-08-30 10:12:06 4.107e-09 noise 0 044 2026-08-30 10:12:33 2.442e-09 noise 0 045 2026-08-30 10:13:21 2.232e-09 noise 0 046 2026-08-30 10:13:40 2.388e-09 noise 0 047 2026-08-30 10:13:57 5.252e-09 noise 0 048 2026-08-30 10:14:11 2.757e-09 noise 0 049 2026-08-30 10:14:34 4.710e-09 noise 0 050 2026-08-30 10:14:58 4.146e-09 noise 0 051 2026-08-30 10:15:25 5.074e-09 noise 0 052 2026-08-30 10:16:44 4.828e-09 noise 0 053 2026-08-30 10:17:01 2.757e-09 noise 0 054 2026-08-30 10:17:16 2.494e-09 noise 0 055 2026-08-30 10:17:43 4.270e-09 noise 0 056 2026-08-30 10:18:45 2.201e-09 noise 0 057 2026-08-30 10:19:09 5.926e-09 noise 0 058 2026-08-30 10:19:47 4.112e-09 noise 0 059 2026-08-30 10:21:50 2.589e-09 noise 0 060 2026-08-30 10:22:06 3.003e-09 noise 0 061 2026-08-30 10:24:28 2.408e-09 noise 0 062 2026-08-30 10:25:27 2.340e-09 noise 0 063 2026-08-30 10:34:57 2.450e-09 noise 0 064 2026-08-30 10:45:37 3.094e-09 noise 0 065 2026-08-30 10:48:28 3.211e-09 noise 0 066 2026-08-30 10:48:49 2.583e-09 noise 0 067 2026-08-30 10:53:29 1.953e-09 noise 0 068 2026-08-30 11:00:15 2.725e-09 noise 0 069 2026-08-30 11:01:55 2.791e-09 noise 0 070 2026-08-30 11:08:09 2.715e-09 noise 0 071 2026-08-30 11:13:15 2.228e-09 noise 0 072 2026-08-30 11:21:16 2.769e-09 noise 0 073 2026-08-30 11:24:44 2.595e-09 noise 0 074 2026-08-30 11:25:13 2.655e-09 noise 0 075 2026-08-30 11:32:34 2.240e-09 noise 0 076 2026-08-30 11:33:02 9.865e-09 up 0 077 2026-08-30 11:35:47 4.040e-09 noise 0 078 2026-08-30 11:38:12 2.210e-09 up 0 079 2026-08-30 11:38:36 2.633e-09 noise 0 080 2026-08-30 11:40:27 3.268e-09 noise 0 081 2026-08-30 11:42:57 2.807e-09 noise 0 082 2026-08-30 11:44:16 2.631e-09 noise 0 083 2026-08-30 11:44:49 3.176e-09 noise 0 084 2026-08-30 11:49:04 2.671e-09 noise 0 085 2026-08-30 11:58:39 2.611e-09 noise 0 086 2026-08-30 11:59:46 6.159e-09 noise 0 087 2026-08-30 12:04:15 3.847e-09 noise 0 088 2026-08-30 12:05:15 3.036e-09 up 0 089 2026-08-30 12:30:40 2.599e-09 noise 0 090 2026-08-30 12:31:30 7.109e-09 noise 0 091 2026-08-30 12:39:26 2.070e-09 noise 0 092 2026-08-30 12:45:56 2.895e-09 noise 0 093 2026-08-30 13:09:35 3.256e-09 noise 0 094 2026-08-30 13:10:22 3.319e-09 noise 0 095 2026-08-30 13:18:33 3.192e-09 noise 0 096 2026-08-30 13:20:44 2.651e-09 noise 0 097 2026-08-30 13:23:21 3.381e-09 noise 0 098 2026-08-30 13:32:38 2.688e-09 noise 0 099 2026-08-30 13:33:01 2.703e-09 noise 0 100 2026-08-30 13:38:20 5.418e-09 noise 0 101 2026-08-30 13:51:52 2.622e-09 noise 0 102 2026-08-30 13:54:43 2.459e-09 noise 0 103 2026-08-30 14:03:20 2.517e-09 noise 0 104 2026-08-30 14:12:26 2.289e-09 noise 0 105 2026-08-30 14:14:17 3.318e-09 noise 0 106 2026-08-30 14:21:12 2.891e-09 noise 0 107 2026-08-30 14:26:54 2.544e-09 noise 0 108 2026-08-30 14:29:19 2.431e-09 noise 0 109 2026-08-30 14:31:31 3.916e-09 noise 0 110 2026-08-30 14:31:54 3.823e-09 noise 0 111 2026-08-30 14:33:07 2.653e-09 noise 0 112 2026-08-30 14:33:46 2.347e-09 noise 0 113 2026-08-30 14:36:10 2.512e-09 noise 0 114 2026-08-30 14:41:20 3.529e-09 noise 0 115 2026-08-30 14:41:32 3.446e-09 noise 0 116 2026-08-30 14:53:41 6.053e-09 noise 0 117 2026-08-30 14:55:27 3.330e-09 noise 0 118 2026-08-30 14:58:40 2.721e-09 noise 0 119 2026-08-30 14:59:40 3.108e-09 noise 0 120 2026-08-30 15:01:25 2.879e-09 noise 0 121 2026-08-30 15:03:55 2.334e-09 noise 0 122 2026-08-30 15:07:05 3.012e-09 noise 0 123 2026-08-30 15:08:03 2.215e-09 noise 0 124 2026-08-30 15:13:59 2.864e-09 noise 0 125 2026-08-30 15:20:06 3.469e-09 noise 0 126 2026-08-30 15:21:43 2.112e-09 noise 0 127 2026-08-30 15:24:57 2.474e-09 noise 0 128 2026-08-30 15:29:30 3.260e-09 noise 0 129 2026-08-30 15:38:51 2.591e-09 noise 0 130 2026-08-30 15:41:22 2.432e-09 noise 0 131 2026-08-30 15:41:59 2.845e-09 noise 0 132 2026-08-30 15:42:41 3.253e-09 noise 0 133 2026-08-30 15:48:19 2.791e-09 noise 0 134 2026-08-30 15:53:48 2.013e-09 noise 0 135 2026-08-30 15:57:46 4.080e-09 noise 0 136 2026-08-30 16:00:03 3.122e-09 noise 0 137 2026-08-30 16:04:35 2.112e-09 noise 0 138 2026-08-30 16:06:51 2.355e-09 noise 0 139 2026-08-30 16:09:01 2.078e-09 noise 0 140 2026-08-30 16:10:41 2.624e-09 noise 0 141 2026-08-30 16:13:07 2.438e-09 noise 0 142 2026-08-30 16:16:28 2.055e-09 noise 0 143 2026-08-30 16:16:59 2.960e-09 noise 0 144 2026-08-30 16:19:54 2.566e-09 noise 0 145 2026-08-30 16:27:32 3.292e-09 noise 0 146 2026-08-30 16:33:56 2.219e-09 down 0 147 2026-08-30 16:36:27 2.717e-09 noise 0 148 2026-08-30 16:36:40 2.852e-09 noise 0 149 2026-08-30 16:38:18 1.817e-09 noise 0 150 2026-08-30 16:40:31 3.056e-09 up 0 151 2026-08-30 16:43:38 3.119e-09 noise 0 152 2026-08-30 16:47:32 2.181e-09 noise 0 153 2026-08-30 16:49:50 2.588e-09 noise 0 154 2026-08-30 16:50:42 4.326e-09 noise 0 155 2026-08-30 16:57:46 2.428e-09 noise 0 156 2026-08-30 17:00:57 2.347e-09 noise 0 157 2026-08-30 17:07:38 1.768e-09 noise 0 158 2026-08-30 17:08:06 2.545e-09 noise 0 159 2026-08-30 17:12:37 5.192e-09 noise 0 160 2026-08-30 17:17:09 2.457e-09 noise 0 161 2026-08-30 17:17:30 2.616e-09 noise 0 162 2026-08-30 17:20:28 2.481e-09 noise 0 163 2026-08-30 17:21:44 2.797e-09 noise 0 164 2026-08-30 17:26:48 2.539e-09 noise 0 165 2026-08-30 17:36:21 1.998e-09 noise 0 166 2026-08-30 17:38:42 2.421e-09 noise 0 167 2026-08-30 17:42:36 2.362e-09 noise 0 168 2026-08-30 17:52:36 2.106e-09 noise 0 169 2026-08-30 17:54:12 2.674e-09 noise 0 170 2026-08-30 17:56:36 2.366e-09 noise 0 171 2026-08-30 17:57:24 3.426e-09 noise 0 172 2026-08-30 18:00:54 2.680e-09 noise 0 173 2026-08-30 18:01:24 2.796e-09 noise 0 174 2026-08-30 18:03:26 2.003e-09 noise 0 175 2026-08-30 18:07:02 3.688e-09 noise 0 176 2026-08-30 18:22:19 2.198e-09 noise 0 177 2026-08-30 18:29:14 2.134e-09 noise 0 178 2026-08-30 18:35:49 2.403e-09 noise 0 179 2026-08-30 18:47:53 2.388e-09 noise 0 180 2026-08-30 19:11:49 5.283e-09 noise 0 181 2026-08-30 19:17:32 4.894e-09 up 0 182 2026-08-30 19:18:03 1.897e-09 noise 0 183 2026-08-30 19:22:28 2.435e-09 noise 0 184 2026-08-30 19:23:28 3.379e-09 noise 0 185 2026-08-30 19:24:02 2.685e-09 noise 0 186 2026-08-30 19:26:44 1.842e-09 noise 0 187 2026-08-30 19:49:35 2.524e-09 up 1 188 2026-08-30 19:54:13 3.221e-09 noise 0 189 2026-08-30 20:06:57 2.330e-09 noise 0 190 2026-08-30 20:09:56 3.344e-09 noise 0 191 2026-08-30 20:20:54 1.633e-09 noise 0 192 2026-08-30 20:29:59 1.640e-09 noise 0 193 2026-08-30 20:31:16 2.099e-09 noise 0 194 2026-08-30 20:33:42 3.298e-09 up 0 195 2026-08-30 20:36:32 2.192e-09 noise 0 196 2026-08-30 20:38:07 2.669e-09 noise 0 197 2026-08-30 20:39:49 1.926e-09 noise 0 198 2026-08-30 20:44:15 2.079e-09 noise 0 199 2026-08-30 20:45:03 2.855e-09 noise 0 200 2026-08-30 21:13:21 3.232e-09 noise 0 201 2026-08-30 21:15:33 7.039e-08 up 0 202 2026-08-30 21:38:38 2.210e-09 down 0 203 2026-08-30 21:39:15 4.691e-09 noise 0 204 2026-08-30 21:41:27 1.847e-09 noise 0 205 2026-08-30 21:43:01 2.567e-09 noise 0 206 2026-08-30 22:10:53 2.087e-09 noise 0 207 2026-08-30 22:30:59 1.906e-09 noise 0 208 2026-08-30 22:51:36 4.662e-09 up 0 209 2026-08-30 23:18:17 2.480e-09 noise 0 210 2026-08-30 23:23:09 2.338e-09 up 0 211 2026-08-30 23:38:02 1.851e-09 noise 0 212 2026-08-30 23:51:45 2.203e-09 noise 0 213 2026-08-30 23:51:57 2.031e-09 down 0 214 2026-08-30 23:56:48 2.364e-09 up 0 215 2026-08-31 00:43:35 3.122e-09 noise 0 216 2026-08-31 00:51:55 4.290e-09 noise 0 217 2026-08-31 01:21:27 2.551e-09 noise 0 218 2026-08-31 01:55:44 2.294e-09 up 0 219 2026-08-31 01:59:33 1.937e-09 up 0 220 2026-08-31 02:00:05 2.305e-09 noise 0 221 2026-08-31 02:01:58 3.449e-09 down 0 222 2026-08-31 02:02:22 3.653e-09 noise 0 223 2026-08-31 02:05:26 2.266e-09 up 0 224 2026-08-31 02:05:46 2.211e-09 noise 0 225 2026-08-31 02:18:37 1.884e-09 noise 0 226 2026-08-31 02:38:46 2.490e-08 up 0 227 2026-08-31 03:02:44 3.869e-09 noise 0 228 2026-08-31 03:31:07 7.008e-09 up 0 229 2026-08-31 03:36:12 2.216e-09 noise 0 230 2026-08-31 03:36:25 3.759e-09 noise 0 231 2026-08-31 03:36:52 2.640e-09 down 0 232 2026-08-31 03:44:07 2.236e-09 noise 0 233 2026-08-31 03:49:19 3.028e-09 up 0 234 2026-08-31 03:59:53 2.215e-09 noise 0 235 2026-08-31 04:00:26 3.701e-09 noise 0 236 2026-08-31 04:05:14 2.117e-09 up 0 237 2026-08-31 04:12:55 8.943e-09 up 0 238 2026-08-31 04:16:25 2.067e-09 noise 0 239 2026-08-31 04:16:37 2.419e-09 down 0 240 2026-08-31 04:29:59 2.508e-09 up 0 241 2026-08-31 04:37:09 2.230e-09 noise 0 242 2026-08-31 04:59:53 2.161e-09 noise 0 243 2026-08-31 05:01:20 2.459e-09 down 0 244 2026-08-31 05:01:52 2.838e-09 noise 0 245 2026-08-31 05:16:57 2.806e-09 noise 0 246 2026-08-31 05:32:34 2.284e-09 down 0 247 2026-08-31 05:33:21 3.761e-09 noise 0 248 2026-08-31 05:35:43 2.216e-09 noise 0 249 2026-08-31 05:39:54 2.232e-09 noise 0 250 2026-08-31 05:51:22 1.914e-09 down 0 251 2026-08-31 05:51:39 2.248e-09 down 0 252 2026-08-31 05:51:53 4.151e-09 noise 0 253 2026-08-31 06:02:56 1.946e-09 noise 0 254 2026-08-31 06:04:51 2.694e-09 noise 0 255 2026-08-31 06:15:41 2.132e-09 noise 0 256 2026-08-31 06:19:12 2.717e-09 noise 0 257 2026-08-31 06:31:37 2.214e-09 down 0 258 2026-08-31 06:33:27 4.134e-09 up 0 259 2026-08-31 06:35:40 1.846e-09 noise 0 260 2026-08-31 06:50:20 2.500e-09 down 0 261 2026-08-31 06:51:40 5.768e-09 noise 0 262 2026-08-31 06:52:33 2.341e-09 noise 0 263 2026-08-31 06:52:45 3.013e-09 noise 0 264 2026-08-31 06:58:35 2.006e-09 noise 0 265 2026-08-31 07:01:03 3.196e-09 noise 0 266 2026-08-31 07:08:11 2.099e-09 noise 0 267 2026-08-31 07:10:10 2.248e-09 noise 0 268 2026-08-31 07:11:36 2.425e-09 noise 0 269 2026-08-31 07:18:11 1.975e-09 noise 0 270 2026-08-31 07:23:01 2.796e-09 noise 0 271 2026-08-31 07:24:56 2.004e-09 down 0 272 2026-08-31 07:25:26 2.090e-09 noise 0 273 2026-08-31 07:36:51 2.589e-09 noise 0 274 2026-08-31 07:44:10 3.368e-09 noise 0 275 2026-08-31 07:44:25 2.797e-09 noise 0 276 2026-08-31 07:51:09 2.268e-09 down 0 277 2026-08-31 07:52:16 3.327e-09 noise 0 278 2026-08-31 07:52:29 2.764e-09 noise 0 279 2026-08-31 07:52:52 4.704e-09 noise 0 280 2026-08-31 07:58:01 2.376e-09 noise 0
